Solvent-Weld Fittings: The Permanent Joint System for Concealed Waste Pipework

A first-fix waste run for a kitchen extension might use ten or twelve fittings: a couple of bends round the floor void, a tee where the basin branch joins the main run, a reducer stepping 32mm down to 40mm, a coupler joining two pipe lengths. Get the application technique wrong on any one of those joints and you've a future leak buried under floor screed or hidden behind plasterboard. The cement looks set after a minute. The joint feels solid. But if the surface wasn't cleaned, or the cement was only on one face, or the pipe wasn't pushed fully home, the bond is partial, and partial joints fail under flow. By the time the damp patch shows on the ceiling below, you're cutting up new floors.

What a solvent-weld fitting is and what it's for

A solvent-weld fitting is a moulded plastic connector (a bend, a tee, a coupler, a reducer) that you join to plastic waste pipe using a chemical adhesive called solvent cement. Unlike a push-fit fitting, which uses a rubber O-ring to make a removable seal, a solvent-weld joint is permanent. The cement partially dissolves the plastic surfaces of both pipe and fitting, then evaporates off, fusing the two parts into a single piece. You can't unscrew it, pull it apart, or reposition it.

That permanence is exactly why the system exists. For waste runs that disappear under floor screed, behind plasterboard, or into service voids, the last thing you want is a joint that depends on a rubber seal which can perish, slip, or get knocked. A correctly made solvent-weld joint has no moving parts and no failure mode short of cutting the pipe.

UK domestic solvent-weld waste systems are made primarily from ABS (Acrylonitrile Butadiene Styrene). The material complies with BS EN 1455-1:2000 and the dominant brands (FloPlast, Polypipe, Wavin Osma, Hunter, Marley) all use ABS for 32mm, 40mm, and 50mm fittings. PVC-U variants exist (Brett Martin C-PVC for high-temperature work; Toolstation's own-brand Aquaflow uses PVC-U) but are less common in domestic plumbing.

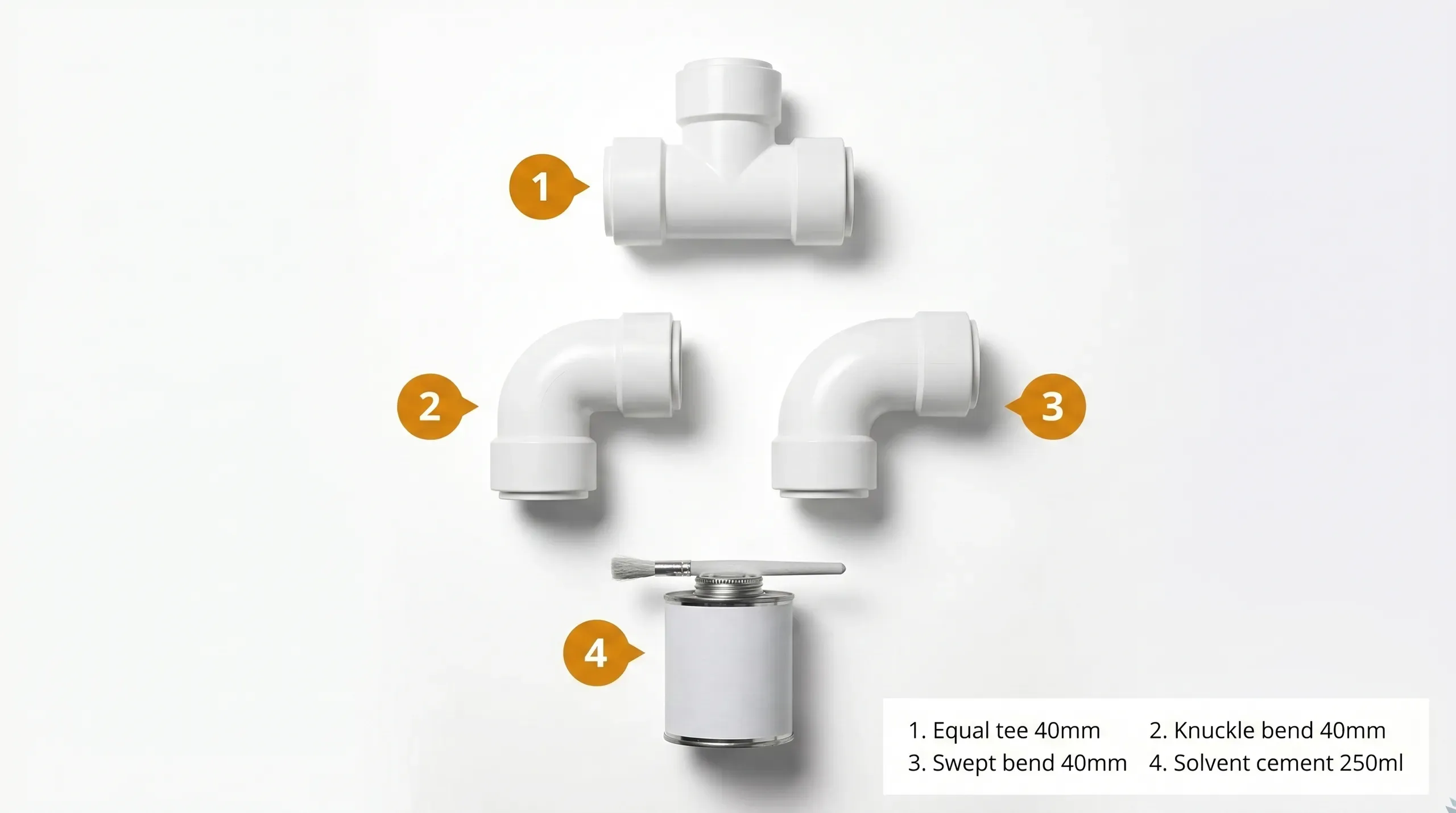

The fitting types and what each one does

Most solvent-weld fittings come in standard shapes you'll see on every plumbers' merchant shelf. The names look interchangeable at first glance but each one has a specific job. Knowing which to use saves trips back to the merchant and, more importantly, gives you the flow path your run actually needs.

The choice between an equal tee and a swept tee matters more than people think. An equal tee meets the main run at a sharp right angle: water from the branch hits the main flow head-on and creates turbulence. A swept tee curves the branch into the main run in the direction of flow. On a kitchen sink waste with grease and food particles, the swept tee blocks less often. Equal tees are fine for low-flow appliances (basins, hand-rinse).

Sizes: which fitting matches which appliance

Solvent-weld fittings come in three sizes for domestic work: 32mm, 40mm, and 50mm. The size matches the pipe, which is governed by Approved Document H Table 2.

In practice you'll use mostly 40mm fittings, plus 32mm for a hand basin and a 40x32mm reducer where the basin branch joins the main run. 50mm only comes in if a 40mm run would exceed 3.0m (and you'd rather upsize than fit an air admittance valve), or where multiple branches combine into a single discharge above a typical 40mm capacity.

The 32mm rule catches people out. A hand basin waste of more than 1.7m in unventilated 32mm pipe is non-compliant. The fix is either a 75mm bottle trap with a 32mm branch shorter than 1.7m, or a 32-to-40mm reducer near the trap so the rest of the run is 40mm.

ABS vs PVC-U cement: the compatibility trap

This is the single biggest gotcha for homeowners buying their own materials. Different plastics need different cements. Use the wrong one and the joint appears to set, but the bond is incomplete and fails under flow.

The trap looks like this. Someone buys 40mm waste pipe and fittings from Screwfix (FloPlast, ABS). They forget the cement, pop into Toolstation on the way home, and pick up the only solvent cement on the shelf (Aquaflow PVC-U). The joints feel set after a minute. They commission the system, run water, and the joint weeps within a week. Cause: PVC-U cement on ABS plastic forms only a surface skin, not a solvent-welded fusion.

Cross-brand compatibility within ABS is a different question. FloPlast pipe and Polypipe fittings will physically fit together (BS EN 1455-1 standardises the dimensions) and an ABS solvent cement will bond either. Most plumbers stick to one brand throughout for tolerance consistency, but mixing is not a regulatory issue.

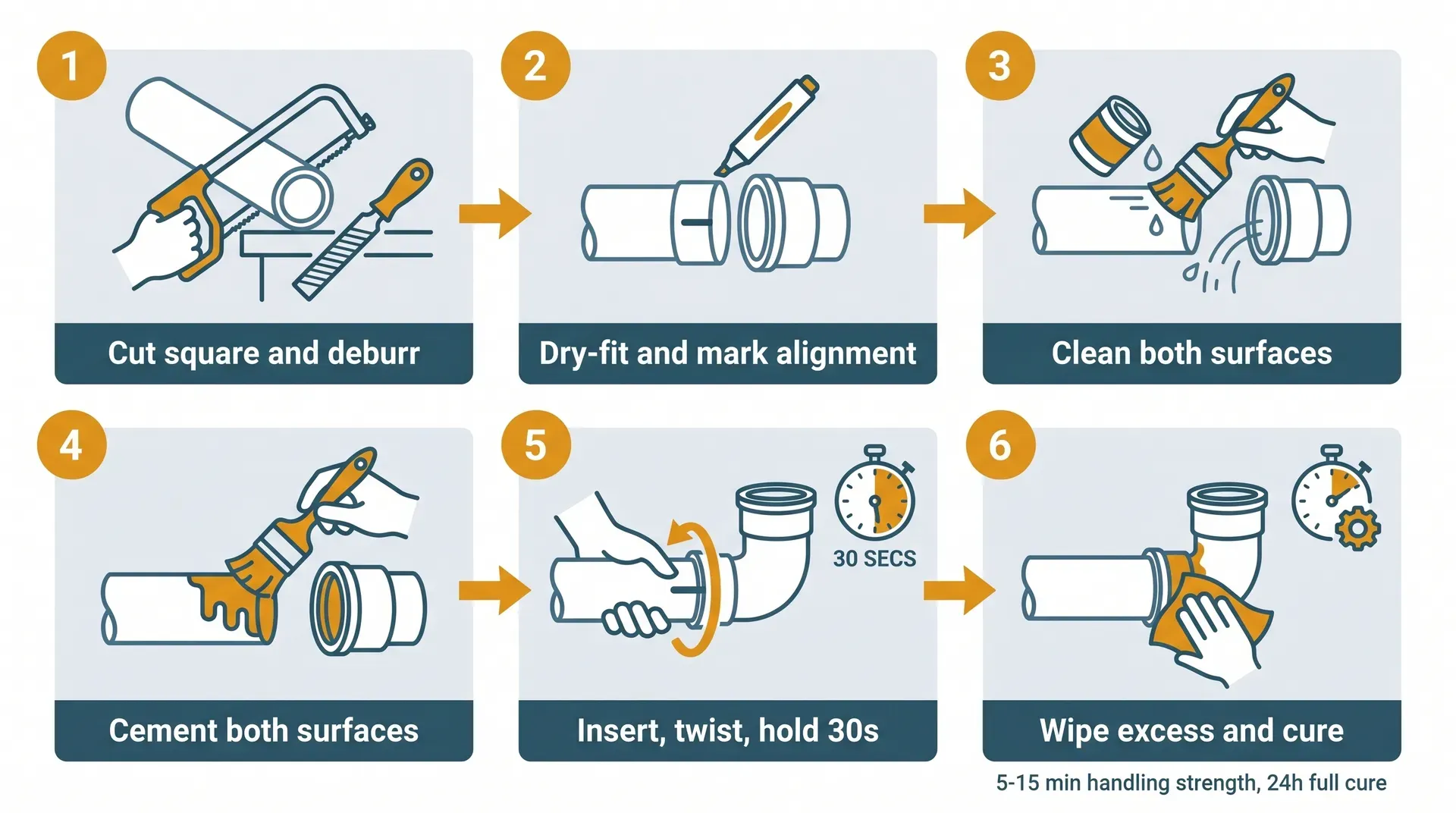

How to make a solvent-weld joint

This is the section every competitor's guide skips or treats as a footnote. The application sequence is non-negotiable. Each step exists because skipping it is the reason a joint leaks.

Click to enlarge

1. Cut the pipe square. Use a fine-tooth hacksaw or a plastic pipe cutter. An angled cut means the pipe won't seat fully into the socket, leaving the cement-bonded length too short. Square the cut against a try square if your hacksaw arm is unreliable.

2. Deburr inside and outside. A sawn pipe end has a rough lip on both edges. The internal lip restricts flow and snags debris. The external lip scrapes cement off the pipe surface as you push it home. A small file or the deburring blade on a pipe cutter handles both edges in seconds.

3. Dry-fit the run. Push the pipe into the fitting socket without cement. It should slide in easily and bottom out at the internal stop, leaving 20-25mm of pipe inside the socket. While the run is dry-fitted, draw a felt-tip line across the pipe and onto the fitting body so you can see the correct alignment after cementing. Plan the whole run dry-fitted before you open a cement tin. You cannot undo a solvent weld.

4. Clean both surfaces. Apply solvent cleaner (MEK-based) to the outside of the pipe and the inside of the fitting socket using the brush in the cleaner tin. This removes grease, dust, plasticiser bloom, and the manufacturing release agent that coats new fittings. A cloth wipe is not enough. Forum data confirms this is the most common cause of leaking joints: surfaces were not cleaned before cementing.

5. Apply cement to both surfaces. Brush a generous, even coat onto the pipe outer surface and the fitting socket inner surface. A common mistake is cementing only one face. The cement needs to soften both plastics to form a true solvent weld. Don't be stingy: a slight bead of cement squeezing out when you push the pipe home means you used enough.

6. Insert, twist, hold. Push the pipe fully into the fitting socket in one smooth motion until it bottoms out. Apply a quarter-turn twist as you push, which spreads the cement evenly around the joint and avoids dry stripes. Bring your felt-tip mark into alignment. Hold the joint still for 30 seconds while the initial set takes place.

7. Wipe and cure. Wipe the excess cement bead immediately with a clean cloth. The joint reaches handling strength in 5-15 minutes (you can move the pipe but don't stress it). Full cure is 24 hours at 20°C. Do not run water through the system or pressure test until the cure is complete.

What to do if a joint goes wrong

You cannot un-weld a joint. If the fitting ends up at the wrong angle, or the cement bond is incomplete and the joint leaks, the only repair is to cut the pipe and splice. Cut the pipe back to leave at least 25mm of clean, undamaged pipe on each side of the misjoined section, then bridge the gap with a straight coupler and two new welded joints. This is why allowing a few centimetres of slack in your pipe runs is sensible: it gives you cutting room if something goes wrong.

A leaking joint cannot be "re-glued." Cement applied over a partially-bonded surface does not penetrate enough to fix the underlying lack of fusion. Cut it out.

Cure timing: when can you test?

The cure progresses in stages. Forum guidance and manufacturer data sheets agree:

• 30-60 seconds: initial set. The joint will hold its shape but is not fully bonded. Don't release pressure on the pipe before this point.
• 5-15 minutes: handling strength. You can move the pipe gently and continue assembling the next joint. Don't put any flow or load on it.
• 4-24 hours: safe for water flow testing depending on temperature and humidity. Cooler temperatures slow the cure.
• 24 hours minimum at 20°C: full cure. Building Control inspections that include a water flow test should not happen before this point.

Cold weather extends cure times significantly. If you're working in an unheated extension shell in January, allow 48 hours before pressure testing.

Solvent cement safety

Solvent cement is highly flammable and emits hazardous fumes. The HSE classifies it as a COSHH-regulated substance. The active ingredient in most ABS cements is butanone (methyl ethyl ketone, or MEK), which is a Category 2 flammable liquid that causes eye irritation and can cause drowsiness or dizziness with prolonged exposure.

Wear safety glasses if you're working overhead or in awkward positions where cement could drip. Nitrile gloves protect skin from skin contact during prolonged use. Throw away cement-soaked rags safely (don't leave them piled in a warm space, as they can self-heat).

Cost and where to buy

Individual solvent-weld fittings at DIY retailer prices are around £1 each for 32mm and 40mm sizes. Buying in 5-packs at Screwfix brings the per-unit price below £1.10. Singles at Wickes and Toolstation run £1 – £1.

Fitting type	Size	Typical retail price
Straight coupler	32mm/40mm	£1.00–£1.15
90° knuckle bend	32mm/40mm	£1.00–£1.20
92.5° swept bend	40mm	£1.05–£1.25
135° bend	32mm/40mm	£1.00–£1.10
Equal tee	40mm	£1.10–£1.35
Reducer 40x32mm	-	£1.05–£1.20
Reducer 50x40mm	-	£2.00–£2.50
Access plug	40mm	£1.15–£1.25

Trade prices through plumbers' merchants (City Plumbing, Plumb Center, Plumbase) are roughly three times the DIY retailer unit price for individual fittings. Polypipe knuckle bends list at £3 – £4 each at City Plumbing, against the £1 – £1 you pay at Screwfix. The trade price advantage only kicks in at case quantities (50+ fittings of one type), which is rarely relevant for a single-extension first fix.

Solvent cement runs £7 – £8 for a 250ml tin (around 55 joints) and £5 – £7 for a 125ml tin (around 25 joints). For a single bathroom or kitchen extension, the 250ml SC250 is the right size: you'll have plenty left over for snags and second-fix tweaks.

For a typical kitchen extension waste run with one sink (40mm) and one downstairs basin (32mm), expect to use 10 to 15 fittings (mix of bends, tees, couplers, one reducer) plus a 250ml tin of cement. Total fittings budget: £20 – £28 at DIY retailer prices.

Solvent weld vs push-fit: the decision rule

The simple version: solvent weld for permanent and concealed runs, push-fit for accessible and temporary runs.

The pipe outside diameter difference matters. A 40mm solvent-weld pipe has a 43mm OD; a 40mm push-fit pipe has a 41mm OD. The two systems will not connect to each other directly. If you've part-bought the wrong system, you'll need a compression adaptor to bridge them, or to throw away the wrong material and start again.

Trade preference splits regionally. South of England plumbers typically default to solvent weld throughout. North of England and Scotland trade tradition favours push-fit on accessible runs. Both are Building Regs compliant; the choice is best practice rather than legal.

Common mistakes

Skipping the solvent cleaner. This is the single biggest cause of leaking solvent-weld joints. Forum analysis across nine threads on DIYnot, BuildHub, and Screwfix Community puts dirty surfaces at the top of every "why is my joint leaking?" diagnosis. A new pipe and fitting both have a thin coating of plasticiser bloom and manufacturing release agent. A cloth wipe doesn't remove it. Solvent cleaner does.

Using cement on only one face. A solvent weld needs both surfaces softened simultaneously. If only the pipe outer (or only the socket inner) is cemented, the cement on the cemented side dries before bonding properly with the dry side. Cement both surfaces, every time.

Not dry-fitting and marking before committing. You cannot undo a solvent weld. If the fitting ends up at the wrong angle, the only fix is cutting the pipe out. Mark alignment with a felt-tip across both pipe and fitting before cementing. After cementing, twist the pipe a quarter-turn while pushing home, and the marks will end up aligned.

Mixing cement types. ABS cement on PVC-U pipe (or vice versa) does not form a true solvent weld. The joint feels set but fails under flow. Match the cement to the pipe brand: FloPlast/Polypipe/Osma all need ABS cement; Toolstation Aquaflow needs PVC-U cement.

Pressure testing too early. Manufacturer data sheets specify 24 hours minimum at 20°C before pressure testing. Plenty of homeowners run water through the system after 30 minutes "because the joint feels set." The initial set holds the fitting in place, but the chemical fusion is still progressing. Disturbing it under flow can break the partial bond. Wait the full 24 hours before any flow or Building Control inspection.

Confusing solvent-weld pipe with push-fit pipe. They are different ODs and cannot be mixed without a compression adaptor. Buy the whole run from one system. If you need to bridge to existing push-fit pipework in a refurb, use a purpose-made compression coupler with a rubber gasket.

Where you'll need this

Solvent-weld fittings appear at first fix and second fix on any extension or renovation involving plumbing:

• First fix plumbing - concealed waste runs from baths, basins, showers, kitchen sinks, and washing machines to the soil stack; this is where the bulk of solvent weld joints get made
• Second fix plumbing - any final connection that runs into a void or is otherwise inaccessible after fit-out

Solvent-weld fittings are a small line item on the materials bill but a disproportionate source of callbacks if installed badly. Twenty pounds of fittings, applied carefully, become a system that lasts the life of the building. Twenty pounds of fittings, rushed and dirty, become a hidden leak that takes thousands to find and repair.
