Compression Fittings: How They Work, How to Use Them, and When to Choose Them Over Push-Fit

Compression fittings for copper pipe: types, sizes, installation technique, the PTFE debate, prices by fitting type and diameter, and when to use them instead of push-fit.

By Ian

Project managed a £182k Oxfordshire kitchen extension

A plumber connects 30 or 40 joints during first-fix plumbing on a typical extension. One that weeps after the system is pressurised means draining down, cutting out, and redoing the joint, plus whatever damage the leak caused to plaster, insulation, or flooring before anyone noticed it. If you're overseeing the plumbing on your project, or doing any pipework yourself, understanding how compression fittings work (and what makes them fail) saves you from being the person who discovers a damp patch three weeks after the plumber has moved on.

What it is and what it's for

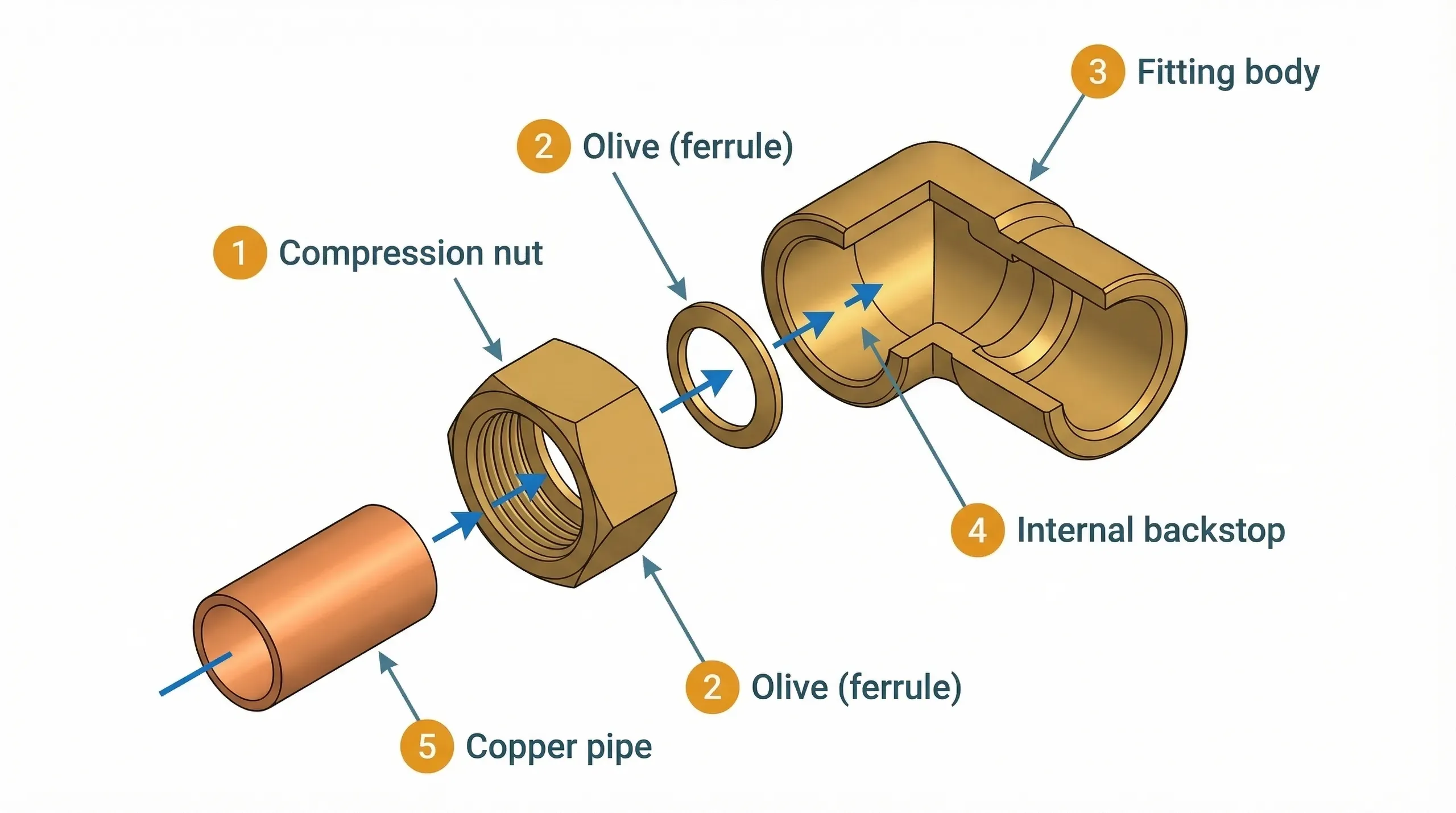

A compression fitting is a brass connector that joins lengths of copper pipe without soldering or heat. It works by squeezing a soft metal ring (called an olive or ferrule) onto the outside of the pipe as you tighten a nut. The olive deforms against both the pipe surface and the inside of the fitting body, creating a watertight seal. Three components: the body (the shaped brass piece, could be an elbow, tee, or straight coupler), the olive, and the nut.

No flame, no flux, no solder. That's the appeal. You can make a compression joint in a confined space with two spanners and nothing else. The joint is also demountable. Undo the nut, slide the olive off (or cut behind it), and the pipe is free. Demountable connections can assist servicing, but the boiler manufacturer specifies the connection arrangement.

Compression fittings comply with BS EN 1254-2:2021, which defines two types. Type A fittings are non-manipulative (the pipe goes in as-is) and are the standard for all domestic above-ground plumbing. Type B fittings require the pipe end to be flared before assembly and are designed for below-ground or high-pressure work. You'll only encounter Type A in a house.

The governing UK regulation for all domestic water fittings is the Water Supply (Water Fittings) Regulations 1999 (SI 1999/1148). One rule catches people out.

Warning

Compression fittings must remain accessible. The Water Fittings Regulations (Schedule 2, Paragraph 7) state that no joint shall be a concealed water fitting. You cannot bury a compression fitting inside a wall, under a solid floor, or anywhere you can't reach it for inspection and maintenance. If a pipe run has to be hidden, run it in a duct or void (never embedded in plaster or screed) with as few joints as possible, and make any joint there by soldering.

Types, sizes, and what each one does

Compression fittings come in every shape you'd need to route pipework through a building. The common domestic sizes are 15mm (for hot and cold supply pipes, central heating flow and return), 22mm (for main runs, bath feeds, and boiler connections), and 28mm (for larger heating circuits, less common in domestic work).

Fitting typeWhat it does15mm example22mm exampleNotes
Straight couplerJoins two lengths of pipe in a straight lineCheck current offerCheck current offerThe most basic fitting. Used for extending pipe runs or repairing a section.
90° elbowChanges direction by 90 degreesCheck current offerCheck current offerCompare pack size and unit cost before buying.
Equal teeBranches one pipe run into twoCheck current offerCheck current offerUsed wherever a supply splits, e.g. feeding a radiator from a main run.
Reducing couplerJoins two different pipe sizes (e.g. 22mm to 15mm)Check current offerCheck current offerCommon where a 22mm main drops to 15mm branches.
Stop end / blanking capCaps off a pipe endCheck current offerCheck current offerUseful for temporary capping during first fix before final connections.
Male/female adaptorConnects compression pipe to a threaded fitting (tap, valve, cylinder)Check current offerVariesThe bridge between compression pipework and threaded appliances.

Chrome-plated fittings are used on exposed pipework where appearance matters. Compare current prices for the exact size and brand rather than assuming a fixed percentage premium.

Brass vs chrome-plated

Standard brass fittings are used everywhere pipe is concealed behind walls, under floors, or in ceiling voids (provided the joints themselves remain accessible per the regulations). Chrome-plated fittings are the same brass body with a decorative chrome finish for exposed pipe runs. The chrome adds nothing to performance. It just looks better.

How to make a leak-free compression joint

This is the section that separates a good guide from a product listing. Most leaking compression joints fail for one of four reasons: the pipe wasn't cut square, the pipe wasn't fully inserted, the olive was damaged, or the nut was over-tightened. Get these four things right and the joint won't leak.

1. Cut the pipe square. Use a pipe cutter, not a hacksaw. A hacksaw leaves a rough, angled edge that prevents the pipe from seating fully into the fitting body. For tight spaces, a pipeslice (a compact rotary cutter that fits around the pipe) works where a full-size cutter won't. Rotate the cutter around the pipe, tightening slightly after each revolution, until it cuts through.

2. Deburr inside and outside. The pipe cutter leaves a raised lip of copper on the inside edge and sometimes a slight burr on the outside. The internal burr restricts water flow. The external burr can score the olive as it slides over the pipe, preventing a proper seal. Use the deburring blade built into most pipe cutters, or a small round file.

3. Assemble in the right order. Slide the nut onto the pipe first (thread facing the fitting end), then slide the olive on. Push the pipe into the fitting body until it hits the internal backstop. You'll feel it stop. This seating depth is critical. If the pipe isn't fully inserted, the olive won't grip at the correct position and the joint will weep under pressure.

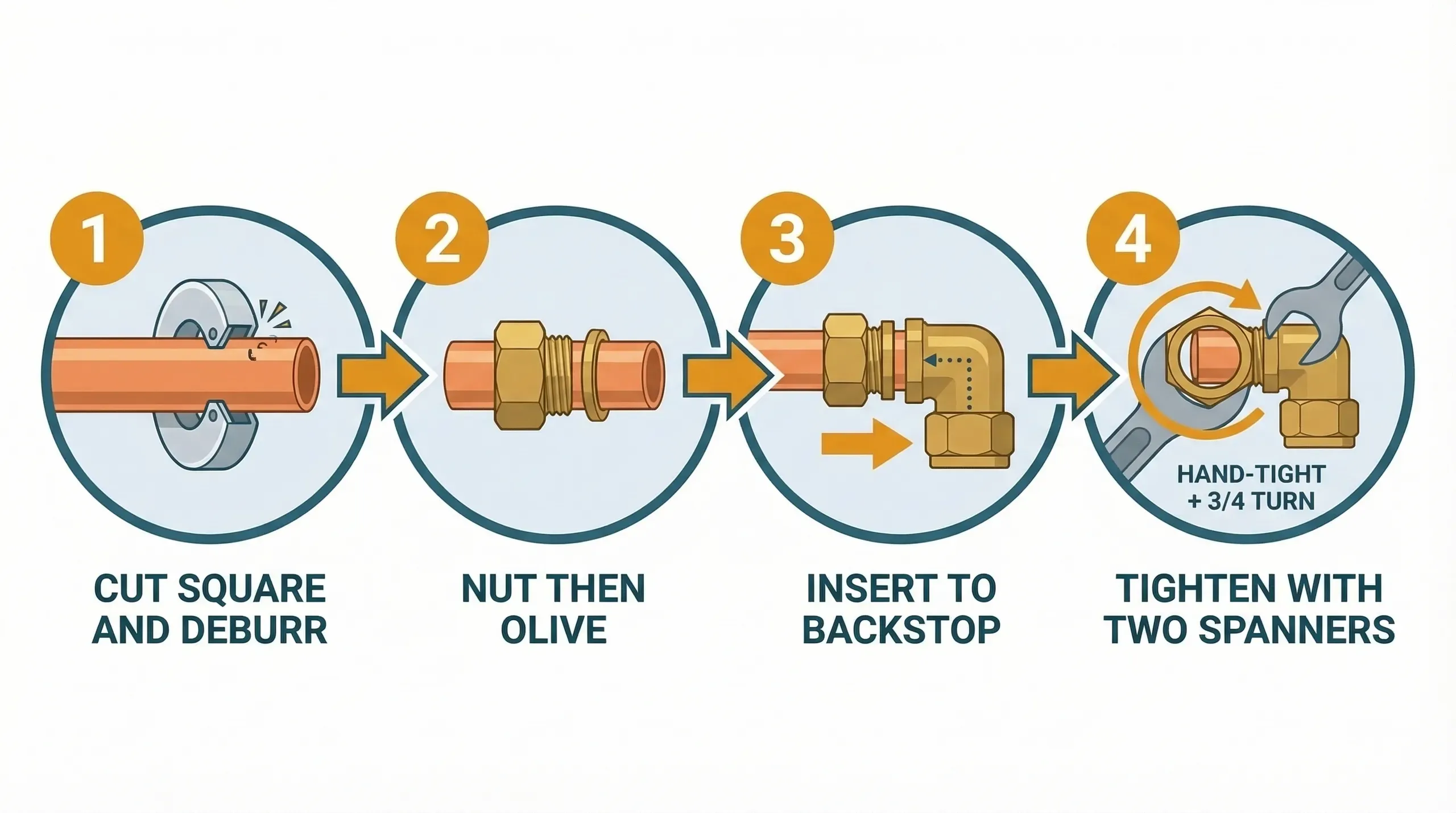

The four steps to a leak-free compression joint

4. Tighten correctly. Thread the nut onto the fitting body by hand until it's finger-tight. Then use two spanners: one to hold the fitting body still, one to turn the nut. Tighten the nut past hand-tight by the number of turns the fitting manufacturer gives, which depends on pipe size and temper: one maker's table for half-hard copper gives one and a quarter turns at 15mm, one turn at 22mm and three-quarters of a turn at 28mm. No more.

Tip

Count the flats on the hexagonal nut as you tighten. Three flats equals half a turn and six flats a full turn, so you can match the manufacturer's turn count without guessing. Stop when you feel firm, even resistance. If it suddenly feels easier, you've over-tightened and deformed the pipe. That section needs cutting out.

5. Pressure test before boxing in. Once all joints are made, pressurise the system and inspect every fitting with dry tissue paper. A weeping joint will show as a damp mark on the tissue before it's visible to the eye. Fix any weepers now, not after the plasterer has been.

The PTFE and jointing compound debate

This topic generates more argument in plumbing forums than almost anything else. Here's the definitive position.

PTFE tape is not a substitute for a correctly assembled compression joint. Follow the fitting manufacturer's instructions for the olive, nut and any approved jointing compound. Flowflex distinguishes compression assembly from threaded connections; advice to seal a taper thread does not mean tape belongs on a compression nut or olive.

Jointing compound is insurance, not a requirement. A new fitting, new olive, and clean pipe assembled correctly will seal without any compound. Many plumbers apply a thin smear of approved jointing compound (Hawk White for central heating systems, Water Hawk for potable water) to the olive faces as a precaution. On cheaper fittings with looser manufacturing tolerances, this can make the difference between a dry joint and a weeper. A tin lasts dozens of joints and is a cheap investment if you're less experienced.

Warning

Never use plumber's PTFE tape or sealant that is not WRAS-approved on potable (drinking) water pipework. Any compound contacting drinking water must be WRAS-approved (Water Regulations Advisory Scheme). Products labelled for potable water use, like Fernox Water Hawk, meet this requirement. Products labelled for heating only (like standard Boss White) do not.

Copper olives vs brass olives

The olive that comes in the bag with most fittings is brass. It works. But some plumbers swap it for a copper olive on every joint, and there are reasons for that.

Copper is softer than brass. It deforms more readily against the pipe surface, which means it creates a tighter initial seal with less tightening torque. On hot water systems where pipes expand and contract through heating cycles, a copper olive maintains contact better because it yields slightly with the pipe movement.

Brass olives are harder, hold their shape better, and resist corrosion marginally more than copper. They're the default because they're cheaper to manufacture. For most domestic joints on copper pipe, either works.

Two exceptions where the choice matters. First, if you're connecting to plastic pipe (PEX or Speedfit) using a compression fitting with a TSM insert, use a copper olive. Brass is too hard and can crack or deform the plastic pipe wall. Second, if the installation involves LPG gas (not common in extensions, but relevant for some boiler work), LPG supplier installation guidance specifies copper olives, not brass. Gas work of any kind is for a Gas Safe registered engineer only.

Cut behind it

Never reuse an olive. Once an olive has been compressed onto a pipe, it's permanently deformed to that exact pipe profile. Even hand-tightening before inserting the pipe is enough to render it unusable. When disassembling a joint, always fit a fresh olive.

Cost and where to buy

Compression fittings are sold individually and in multi-packs at every plumbing merchant and hardware retailer in the UK. Prices are consistent across the major chains.

15mm compression fittings

£1.49 – £3.38

Per fitting, depending on type (elbow, tee, coupler, reducer)

22mm compression fittings

£3.64 – £7.37

Per fitting, depending on type

28mm compression fittings

£5.88 – £10.48

Per fitting, less common in domestic work

For a typical first-fix plumbing job on an extension (hot, cold, and central heating pipework), you'll need a mix of elbows, tees, couplers, and reducers. A rough estimate: 20-40 fittings across all sizes, depending on the complexity of the pipe routes. Buying multi-packs brings the per-fitting cost down noticeably.

Typical fittings budget. £60 – £160 for a full extension with 30-40 joints across all sizes.

The fittings are a thin slice of what the plumbing costs. For the full figure, with labour and second fix included, the Plumbing Budget Calculator works from the outlets your extension adds.

Interactive calculator

Plumbing Budget Calculator

Estimate your total plumbing spend for a UK kitchen extension: first fix, second fix, boiler work, underfloor heating, and add-ons. Calibrated against a documented build's plumbing quote and what was finally paid.

The main UK brands are Flomasta (Screwfix's own label), Primaflow (Wickes), and Made4Trade (Toolstation). All are WRAS-approved and comply with BS EN 1254-2. For quality-sensitive joints (boiler connections, exposed runs), plumbers often specify Prestex or Conex Banninger. These are professional-grade fittings with tighter manufacturing tolerances and better olive-to-body fit. They cost marginally more but the consistency means fewer weepers.

Tip

Buy a bag of spare olives (8-packs are widely available in 15mm). If you need to redo a joint or a fitting arrives with a damaged olive, you won't have to make a separate trip to the merchant. Keep a few spare nuts too, though most fittings include these.

External resource

Screwfix - Compression Fittings

Full range of Flomasta compression fittings with click-and-collect. Filter by size and type.

screwfix.com

External resource

Toolstation - Compression Fittings

Check the exact Made4Trade fitting specification, approvals, pack contents and current warranty terms.

toolstation.com

Where to buy Compression Fittings

Conex 15mm Brass Compression Straight Coupling 4-pack Genuine Conex brass 15mm straight couplers with olives, the fitting the page describes.

These are affiliate links: if you buy through them we may earn a small commission, at no extra cost to you. Learn more.

Compression vs push-fit vs solder: when to use each

This is the decision most homeowner guides skip, and it's the one that actually matters.

FactorCompressionPush-fitSolder (capillary)
Installation time per joint3-5 minutesUnder 2 minutes2-4 minutes (plus heat-up)
Tools neededTwo spanners, pipe cutterPipe cutter onlyBlowtorch, flux, solder, pipe cutter
Can be disassembled?Yes, non-destructivelyYes, with release toolNo, must be cut
Suitable for concealed runs?No (must remain accessible)No (must remain accessible)Yes, in a duct or void (never embedded in plaster or screed)
Temperature and pressureCheck the fitting ratingCheck the complete pipe/fitting systemCheck the joint and tube specifications
Boiler connectionsFollow boiler instructionsFollow boiler instructionsFollow boiler instructions
Cost per 15mm elbow£1.60-£2.30£3.50-£5.00£0.40-£0.80 (fitting only, plus consumables)
Skill requiredModerateLowHigh (fire risk, technique-sensitive)

Use compression for boiler connections (manufacturers require it for warranty and serviceability), exposed pipe runs where appearance matters (chrome-plated fittings), and any joint that may need to be disassembled in future. Compression is also the safest option for DIYers since there's no flame involved.

Use push-fit for speed on long runs through joists and stud walls, where you're joining plastic pipe (Speedfit, Hep2O), or in tight spaces where getting two spanners in is difficult. Push-fit costs more per fitting but saves time, and time is what your plumber bills for.

Use solder for any joint that cannot be avoided on a concealed run in a duct, chase or floor void: Water Regs UK guidance rules out compression and push-fit joints on concealed pipework. No pipe or joint may be embedded in plaster or screed. Solder fittings are the cheapest per joint but require proper technique and carry a fire risk from the blowtorch. Your plumber will use solder for runs that get buried and compression for everything that stays accessible.

Most compression joint failures come from wrong tightening and damaged olives. Both are preventable.

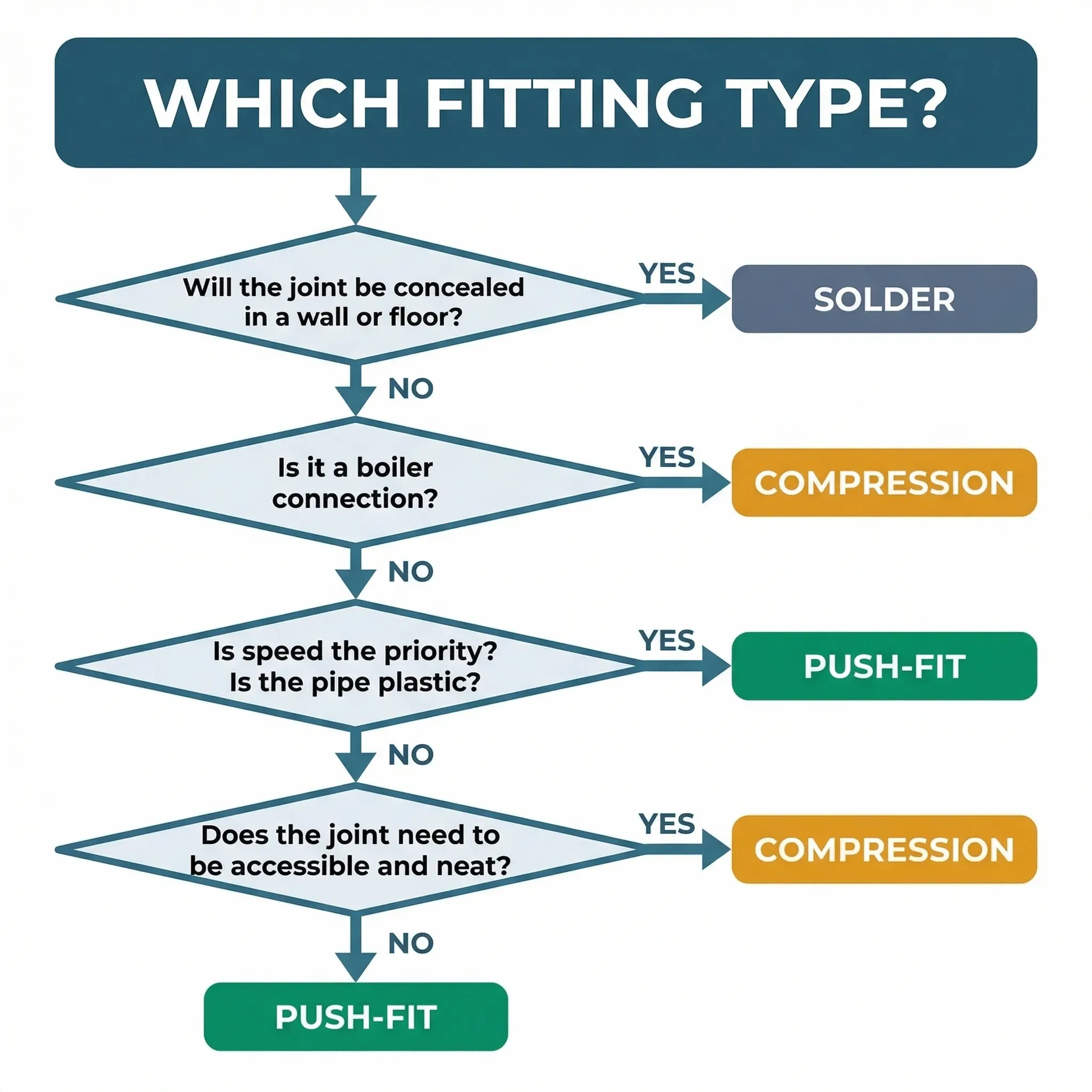

Use this flowchart to choose the right fitting type for each joint

Common mistakes

Over-tightening. This is one of the most common causes of compression joint leaks. Cranking the nut as hard as you can doesn't make a tighter seal. It deforms the copper pipe itself, which means the olive can no longer grip a round surface. The pipe wall collapses slightly under the olive, and the joint weeps. Once you've over-tightened, that section of pipe is ruined and must be cut out. A fresh piece of pipe, a new olive, and correct tightening will fix it.

Pipe not fully inserted. If the pipe doesn't reach the internal backstop inside the fitting body, the olive sits in the wrong position. The joint will hold initially but fail under pressure or after thermal cycling. Push the pipe in firmly and check that it's seated before tightening. Mark the insertion depth on the pipe with a felt-tip pen if you want visual confirmation.

Reusing olives. When you take a compression fitting apart, the olive stays on the pipe, deformed to the exact profile of that pipe at that position. Sliding it onto a different pipe, or reassembling the same joint with the same olive after repositioning, will not seal. Always use a new olive. Cut behind the old one with a pipeslice if it won't slide off.

Mixing imperial and metric without checking compatibility. Nominal inch sizes do not give the outside diameter of old copper pipe. Identify the tube and follow the selected fitting manufacturer’s instructions, including its requirements for adaptor rings. Do not assume every metric compression fitting can join imperial pipe.

Using standard fittings where DZR is required. If a compression fitting must be installed in a location that's not easily accessible (for instance in a service duct with a removable panel), the Water Fittings Regulations require the fitting to be made from dezincification-resistant (DZR) brass. Standard brass can corrode over time through a process where zinc leaches out of the alloy, leaving a weak, porous copper structure. DZR fittings are marked "CR" (corrosion resistant) or "DZR" and cost slightly more. Your plumber should know this. Check if they don't.

Alternatives

Push-fit fittings (Speedfit, Hep2O, Tectite) do the same job faster and with no tools beyond a pipe cutter. The trade-off is cost per fitting versus labour time. On a job with 40 joints, the speed advantage of push-fit adds up to over an hour of your plumber's labour, which can more than offset the higher material cost. If your plumber charges by the day rather than a fixed price, push-fit on the bulk runs and compression on the boiler connections is a sensible split.

Follow the boiler manufacturer's connection instructions and the pipe/fitting system's pressure-temperature limits. Do not choose a connection from a generic material temperature alone. For compression fittings, Product-specific rating applies; check the exact product and service. Gas work requires the appropriate qualified installer and approved materials.

For concealed pipework in walls and floors, neither compression nor push-fit is appropriate. The pipe must run in a chase, duct or void rather than being embedded, with as few joints as possible, and soldered capillary joints are the correct choice for any joint that cannot be avoided there.

Where you'll need this

Compression fittings appear at two stages of any extension or renovation involving plumbing:

  • First fix plumbing - joining copper pipe runs for hot, cold, and central heating circuits; the bulk of compression fittings are used here
  • Second fix plumbing - final connections to taps, valves, cylinders, and appliances; adaptor fittings (compression to BSP thread) are common at this stage

Compression fittings are a small part of total project cost but a disproportionate source of callbacks if installed badly. Understanding how they work puts you in a position to check your plumber's work at pressure-test stage, before everything gets boxed in and plastered over.
