Worktop Bolts: How to Join Laminate Worktops Properly

Your kitchen fitter rings to say the worktops are in. You walk in and the joint above the sink is slightly raised on one side, with a hairline gap you can feel with a fingernail. Three months later the laminate lifts and the chipboard beneath is visibly swollen. The worktop is not repairable. A replacement 40mm postformed laminate worktop plus refit costs around £400-£600 for a single run, plus the day off work to meet the fitter. The fitting that was skipped or rushed? A 99p worktop bolt, a tube of ColorFill, and two minutes of tightening sequence. Understanding what these bolts are and how they work is the cheapest insurance on a kitchen install.

What they are and what they do

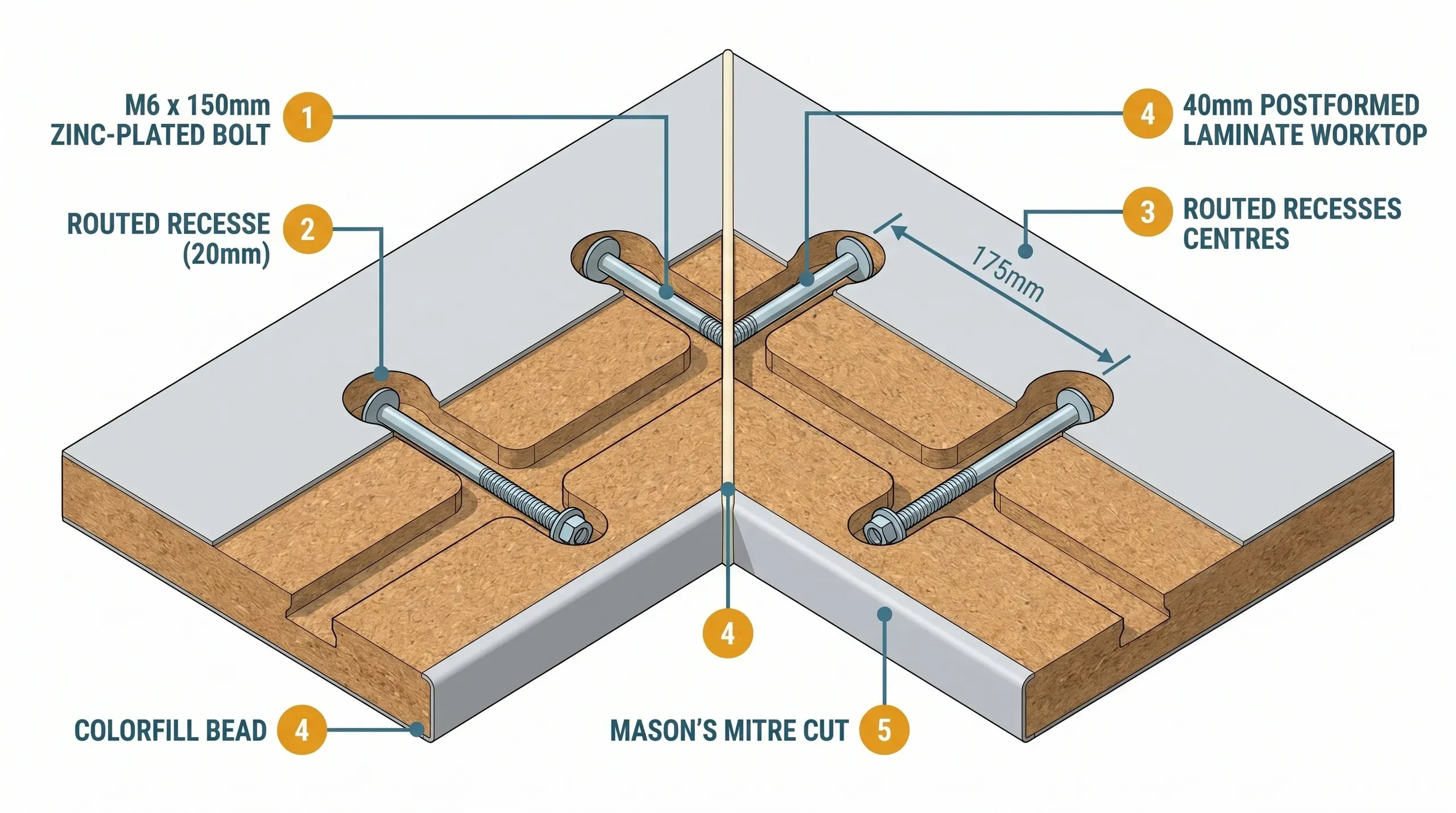

A standard worktop bolt is an M6 (6mm diameter) x 150mm zinc-plated carbon steel bolt with a wide flat head on one end and a nut and washer on the other. It passes through a dog-bone shaped recess routed into the underside of both worktop sections where they meet at a joint. Tightening the nut with a 10mm spanner (or the supplied hex driver on a geared version) pulls the two sections together with clamping force.

These are also called connecting bolts, draw bolts, or worktop joint fasteners. They exist for one purpose: to pull a worktop joint tight and hold it tight for the lifetime of the kitchen. The sealant in the joint is what keeps water out. The bolts are what stop the joint opening up as the chipboard core expands and contracts with humidity and temperature.

Three bolts per joint is the UK standard. Not two. Not four. Three, spaced at 175mm centres across the depth of a standard 600mm worktop. This is set by the physical layout of the routing jig (the Trend KWJ and equivalents all position three bolt recesses at that spacing). Two bolts is what cheaper jigs offer, and it is inadequate when worktops have any bow, which they almost always do straight off the rack.

What they work with and what they don't

This is the single most useful thing to understand before you buy anything.

If your worktop is stone or solid surface, worktop bolts are not part of your project. The fabricator delivers the sections, positions them, and bonds the joint on site. You don't buy bolts, you don't own a jig, and you should not attempt to cut or join the material yourself. Granite and quartz cannot be cut cleanly at home. The joint is a polished epoxy seam that disappears on a good install, and it needs the supplier's diamond tooling and colour-matched resin.

If your worktop is compact laminate (the thin, dense solid-colour material sold by brands like Duropal Compact or Fenix), standard 150mm bolts are too long and the standard 12.7mm router cutter leaves an oversized recess. You need the Zipbolt Compact kit specifically, which uses an 8mm cutter and a shorter bolt. Trying to use the wrong kit damages the worktop.

For everything else, which in practice means standard 38mm or 40mm postformed laminate (the kind that Wickes, B&Q, Howdens, Wren, Magnet, and every other UK kitchen retailer sells as their default), M6 x 150mm bolts are the fastener.

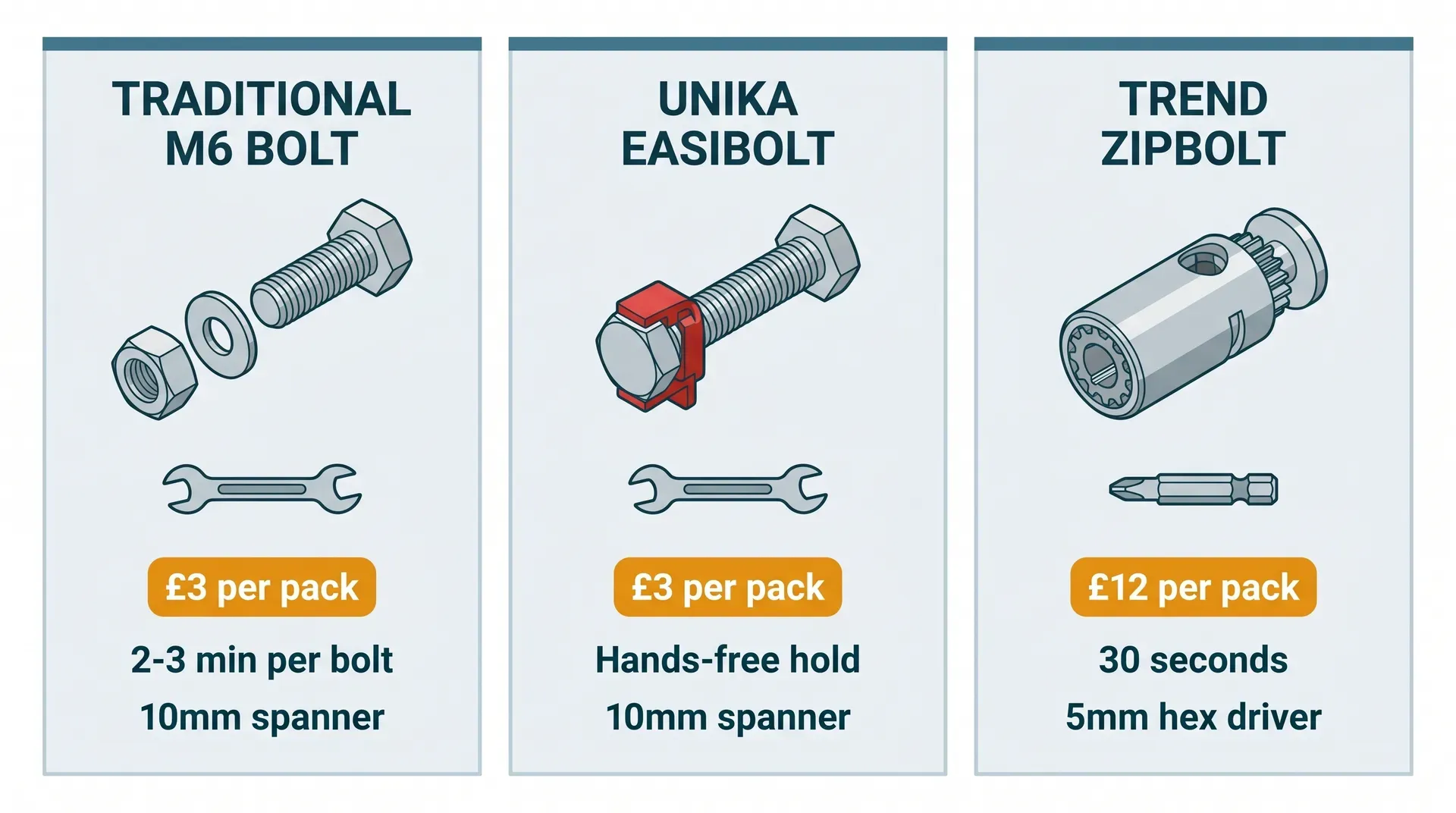

The three bolt systems on the UK market

There are three families of worktop bolts you'll see on shelves. They do the same job. They differ in how you tighten them and how much they cost.

The traditional bolt is the cheapest and most common. You slide the bolt through the routed recess from below, hold the head with one hand (or jam it with masking tape to stop it spinning), and tighten the nut with a 10mm spanner. TIMCO and generic zinc-plated versions at Wickes, Toolstation, and every builders' merchant all do the same job. Pack of 3 costs £2.99-£3.18 at Screwfix and Toolstation for the Unika version, or £4.50 for a TIMCO 6-pack (two joints) at Wickes. Bulk 100-packs at trade suppliers work out at roughly £0.35 per bolt.

The Unika EasiBolt adds a small plastic clip that holds the bolt head against the worktop underside. It sounds trivial but it matters: on a corner joint where you're trying to work in a cramped space between cabinets, you don't have three hands. The clip stays in place permanently after installation.

The Trend Zipbolt is a different mechanism entirely. It uses a geared internal assembly tightened by a 5mm hex driver bit in a cordless drill. Trend claims four times faster than traditional bolts, and in practice this is accurate: where a spanner takes a couple of minutes of awkward turning, the hex driver closes the joint in seconds. The kit also includes three beechwood biscuits for alignment. The catch is price: £12 for a 3-pack versus £3, which is a 4x premium. On a single-joint DIY install, save the £9 and buy traditional bolts. On a professional install with five joints across a kitchen peninsula run, the time saved pays for the bolts many times over.

Zipbolt comes in three lengths for different worktop thicknesses: Compact (12-15mm), Slimline (16-25mm), and Standard 164mm (26-40mm). Make sure you buy the one that matches your worktop. The Standard 164mm is what you want for typical 38-40mm postformed laminate.

Click to enlarge

The routed recess and why the jig matters

You can't buy worktop bolts without also understanding the routed recess they sit in. This is where most DIY worktop installs fail before the bolts even come out of the packet.

The bolt recess is a dog-bone shaped slot cut into the underside of the worktop, not a drilled hole. The shape has a wider circle at each end (for the bolt head and for the nut/washer to seat flat) joined by a narrow slot (for the bolt shaft). On a 40mm worktop, the recess is routed 20mm deep, leaving 20mm of material above for strength. Three recesses per joint, at 175mm centres.

Cutting this by hand is not feasible. You need a worktop jig, which is a template with pre-cut slots that guides a router along the correct path. The industry standard in the UK is the Trend KWJ range. The Trend KWJ700 (700mm capacity, three bolt recesses, 30mm guide bush) costs £80–205 at Screwfix. Unika's budget KWJ617 equivalent is £45–65. Both take the same 30mm guide bush and 12.7mm (half-inch) router cutter.

The router cutter specification is fixed: 12.7mm diameter, 50mm cut length minimum, for 38-40mm worktops. A Trend C153X1/2TC costs around £22 inc VAT at Toolstation. The professional anti-kickback 3/83DX1/2TC is £47.99 at Screwfix. The cheaper cutter is fine for a one-off DIY job, but a blunt cutter climbs on the second pass and tears the laminate surface, so buy a fresh one if yours has seen use. The guide bush is 30mm, and it is non-negotiable: it's what the jig template rides on. Wrong guide bush, wrong recess shape, bolt won't seat.

You also need a router with a plunge base and at least 1600W of power (2100W is better for the multi-pass cuts this job needs). The cut is made in passes of 8-10mm maximum, never the full 20mm depth in one go. Cutting too aggressively burns the laminate and can kick the router out of the jig.

If you don't already own a worktop jig, a router, and the correct cutter, and you're only doing one kitchen, the maths often favours paying a worktop fitter £100-£150 to cut and fit the joint rather than buying £200+ of tooling for single use. Tool hire shops rent worktop jigs for around £25 a day, which is the middle ground.

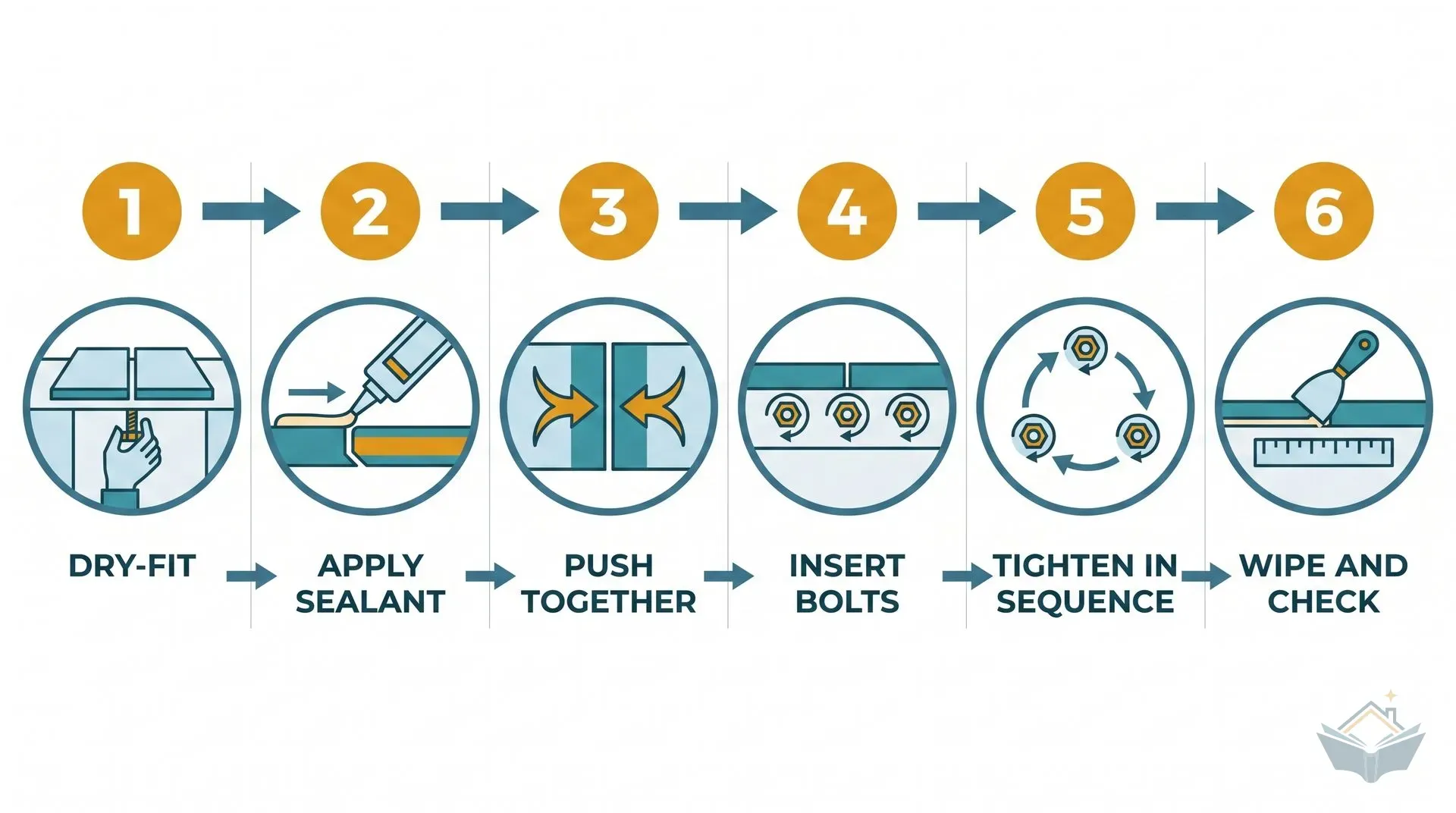

The installation sequence

This is the sequence every published installation guide agrees on, and the one community failure threads trace back to when things go wrong. Do it in this order.

1. Dry-fit the joint first. Position both worktop sections on the base units. Slot the bolts into the recesses from below, hand-tighten the nuts. Check the surface is flush across the joint (run a finger or a steel ruler across it). Check the laminate faces meet cleanly with no chip-out. Check the front edges are level. If anything is off, it's fixable now. After ColorFill goes on, you have about 60 seconds before nothing is adjustable.

2. Check bolt access from below. This is where kitchen installs fail. The bolts tighten from underneath. If your joint sits directly over a corner unit with a fixed top panel, or above a dishwasher housing with no access, you cannot reach the bolts. Plan this BEFORE you route the recesses, not after. Cut access holes in cabinet tops if needed. Some fitters deliberately position worktop joints above base unit gaps for this reason.

3. Loosen the bolts and separate the joint. You're going to add ColorFill next, and it has to go on the cut faces before you close the joint.

4. Apply ColorFill to both cut faces. ColorFill (made by Unika) is a solvent-based laminate joint sealant matched in 449 colours to major laminate brands. One tube per joint is enough. Apply a generous bead along the top 1/3 of the joint (the visible face) and along the lower 2/3 (the chipboard core, front and back). Use the corner of the tube or a plastic spatula to spread it into a continuous layer. Work fast. ColorFill starts to set within about 60 seconds, and once it has set you will not close the joint cleanly.

5. Push the joint together and insert the bolts. Close the worktop sections together firmly. Slot the bolts into the recesses from below. Hand-tighten each nut.

6. Tighten alternating between all three bolts. This is the critical step. Never tighten one bolt fully before moving to the next. Tighten each bolt a quarter turn, move to the next, another quarter turn, move to the next. Keep cycling until all three are firm-snug. Stop at snug. Not wrench-tight. You're drawing the joint closed evenly, not clamping it with full torque.

7. Check the surface is flush. Run your finger or a ruler across the joint. If one side is slightly higher, tap gently with a rubber mallet and a softwood offcut to adjust while the ColorFill is still workable. Don't hit the laminate directly.

8. Remove excess ColorFill. Draw a plastic spatula along the joint line towards the front edge. Wipe the residue off with a cloth. Any smears on the laminate surface can be cleaned with acetone or a cellulose thinner while still wet. Once cured, they won't come off without damaging the finish.

9. Leave for 24 hours to cure fully. The joint is usable after an hour or two but shouldn't be stressed (kitchen sink, chopping boards, heavy items placed near it) for 24 hours.

Masking tape on the bolt heads before you start is a standard trick. It stops the bolt spinning in the recess when you try to turn the nut from the other side.

How they fail, and why

Worktop joints fail in predictable ways. All of them are avoidable.

Blown joint from water ingress. This is the most common failure, and it's always near the sink. Water enters the joint at the top surface where sealant has been missed or has cracked, wicks into the chipboard core, and the chipboard swells. The laminate surface above lifts and the joint visibly bulges. Once blown, it is not repairable: the core has lost its structural integrity. You cut back, re-route, and re-join with fresh material. Prevention is entirely about the sealant. Apply ColorFill generously to both faces of the joint, top to bottom. A bead of clear silicone at the rear of the joint as a secondary barrier is a belt-and-braces addition some fitters use near sinks.

Cupping (a raised lip at the joint). Caused by over-tightening. When you tighten one side of the joint harder than the other, or when you crank all three bolts past snug, the laminate surface is forced upward on one side and you get a visible raised lip that catches dirt, snags cloths, and shows as a ridge under certain lighting. Once the ColorFill has cured, the fix is fiddly: you bolt metal angle braces across the underside, slacken the bolts, and use the braces to pull the surfaces level while re-tightening. Prevention is the alternating-tightening sequence above, stopping at snug. If the joint feels misaligned before you tighten fully, it's misaligned because of how the worktops are sitting on the units or how the recesses were cut, not because you haven't tightened enough.

Stripped threads. Over-tightening on cheap bolts, or over-tightening on Zipbolt where the internal mechanism applies more force for the same hand effort, can strip the threads into the chipboard or shear the bolt shaft. Replacement means re-drilling the recess and fitting a larger-diameter fastener. Avoid it by not over-tightening.

Inaccessible bolts after fitting. Documented on DIY forums: a corner unit with a fixed top panel sits directly under the joint, and the fitter realises only after the worktop is in position that the bolts can't be reached. Resolution means lifting the worktop, cutting access into the cabinet, and refitting. Ten-minute check at dry-fit stage prevents a half-day rework.

Cost, alternatives, and the case for upgrading

A single mason's mitre joint needs three bolts and one tube of ColorFill. Traditional bolts at £3 per pack of three, ColorFill at around £6 per tube, total around £9 in consumables per joint. Zipbolt is £12 per pack plus £6 for ColorFill, so £18 per joint. The jig and cutter are one-off tool purchases covered above.

The decision tree on which bolt system to use:

• One or two joints, DIY, no rush: traditional Unika EasiBolt at £3/pack. The clip holder pays for itself in frustration saved.
• Multiple joints (kitchen with peninsula or L-run), DIY: Zipbolt Standard 164mm at £12/pack. The time saved and the evenness of the pull on a long run is worth the premium.
• Professional fitter: whatever they bring. Zipbolt is now standard on professional installs because time is money. If your fitter arrives with a box of spanner bolts, that's fine, that's what generations of kitchens were built with.

Biscuits (the football-shaped beech inserts) are optional reinforcement for traditional-bolt joints and supplied as standard with Zipbolt kits. They improve alignment when their slots are cut accurately. If the biscuit slots are off by even a millimetre, the biscuit swells in place and prevents the joint closing flush before the ColorFill sets. For DIY first-timers working without a biscuit jointer, skip them. For professional fitters with the tooling, they're a small upgrade.

Where you'll need this

Worktop bolts are a small material cost but a decisive one for whether a kitchen install holds up over the lifetime of the house. They appear at two stages of any kitchen project:

• Kitchen installation - the joint is cut, glued, and bolted during the worktop fitting phase, after base units are level and scribed to the walls.
• Sourcing units and worktops - choosing the worktop material decides whether bolts are in your scope at all; stone and solid surface are fabricator-joined, laminate and wood are bolted on site.

The bolt itself costs about a pound. The joint it holds closed protects a £300-£800 worktop run. Getting the sealant sequence right and the tightening sequence right is the difference between a kitchen that looks crisp in year ten and one that needs a replacement worktop at year two.
