Kitchen Unit Carcasses: Thickness, Edgebanding, and the Spec Questions Nobody Asks

You sign off a £14,000 Howdens kitchen quote on the strength of a showroom visit and a friendly designer. Eighteen months later, the cabinet next to the dishwasher has a bubble running along the front edge where the thin melamine tape has lifted in the steam. Two years after that, the door on the corner unit won't adjust any more because the hinge screws have worked loose in the chipboard. The kitchen looks the same at a glance. It's quietly falling apart where the specifications were cut. Understanding what sits behind a carcass quote is how you avoid paying premium-kitchen money for budget-kitchen engineering.

What it is and what it's for

The kitchen unit carcass is the structural box of a kitchen cupboard. It's the bit you don't see once the doors are on and the worktop is down: two sides, a top, a bottom, a back panel, and usually an adjustable shelf or two. The door, drawer fronts, hinges, and handles are separate items bolted onto the carcass. Worktops sit on top, plinths cover the legs, and cornice caps the wall units.

The carcass is the single biggest quality differentiator between a £5,000 kitchen and a £15,000 kitchen. Doors can be swapped, handles upgraded, worktops replaced. The carcasses are the one component you're stuck with for the next 15-25 years, and they're also the component homeowners have the least information about when signing the order.

No UK standard or regulation governs kitchen carcass specification. No planning permission, no building control sign-off, no British Standard. This is a consumer market where the only protection you have is the Consumer Rights Act 2015 and the manufacturer's own warranty. Which means the specification you order matters, because nothing external is going to catch a poor-quality carcass on your behalf.

Every major UK supplier builds carcasses in similar formats and standard sizes:

• Base unit heights of 720mm carcass (870-910mm with plinth and worktop fitted)
• Base unit depths of 560-570mm (600mm including the door face)
• Wall unit depths of 300mm standard, occasionally 350mm
• Standard widths of 300, 400, 500, 600, 800, and 1000mm

Those dimensions are essentially universal across IKEA, Howdens, DIY Kitchens, Wren, B&Q, and Wickes. What varies is everything else: what the box is made of, how thick it is, how the edges are finished, and how it's put together.

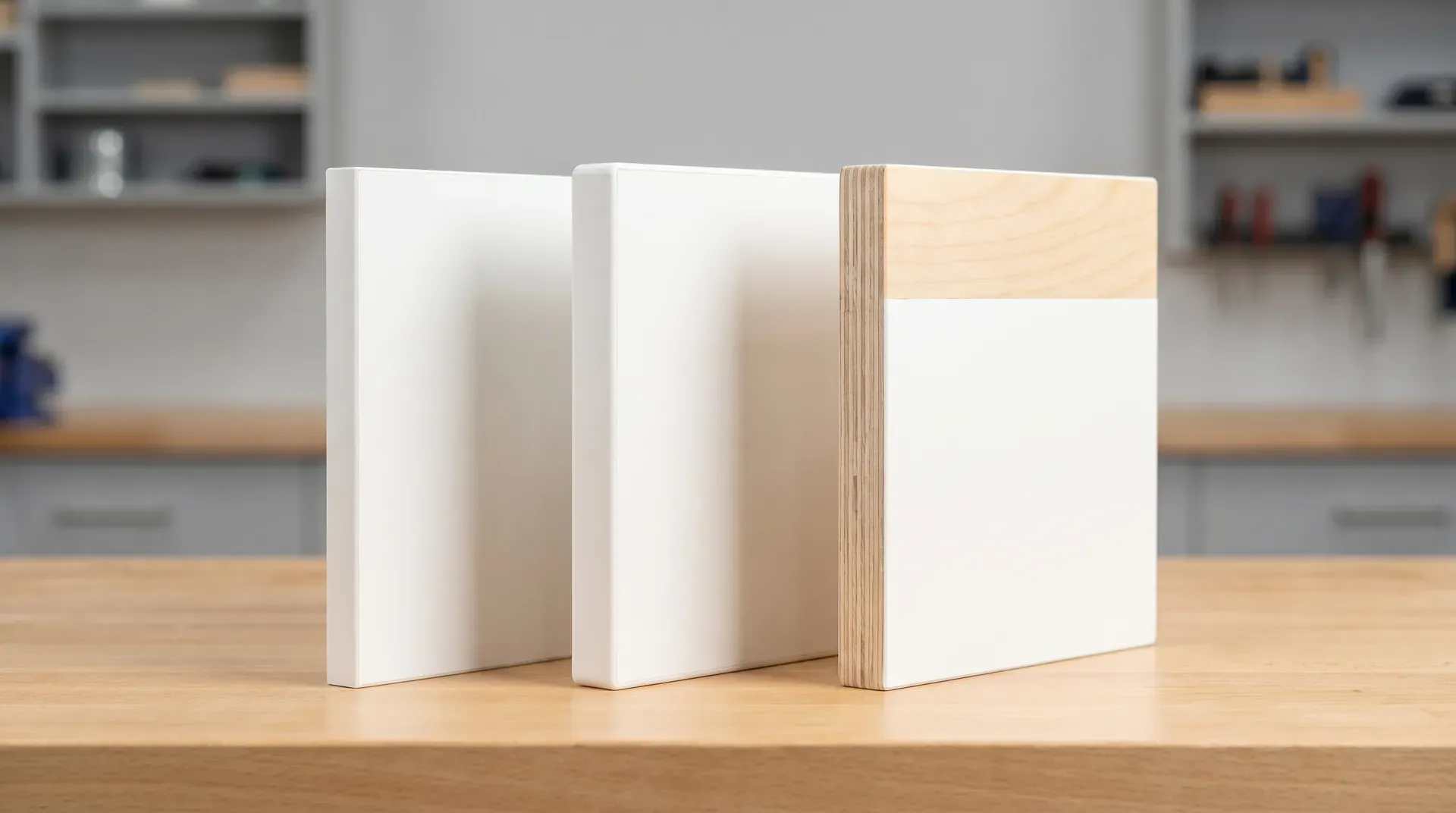

Material hierarchy: chipboard, MFC, plywood

Kitchen carcasses use one of four core materials, and the choice drives durability, moisture resistance, fixing retention, and price.

MFC is the mainstream material. When you walk into an IKEA, a Howdens depot, a Wren showroom, or order from DIY Kitchens, you're looking at MFC carcasses. The debate is not usually MFC vs plywood (unless you're spending £25,000+) but the quality of the MFC itself and how it's finished.

Egger and Kronospan are the two dominant European board manufacturers, and their boards are used across most UK kitchen suppliers. Higher-density MFC from these manufacturers holds screws better, resists chipping at cut edges, and has a more even surface than cheaper imported chipboard used in the budget ranges.

At the premium end, birch plywood is genuinely different. Cross-laminated veneers make the board dimensionally stable, resistant to warping, and able to hold screws indefinitely. A birch ply carcass with proper waterproof bonding will still be structurally sound in 40 years. The cost is 2-3x MFC, which is why it only shows up in kitchens starting at £20,000-£25,000.

Click to enlarge

15mm vs 18mm: the hinge-screw grip problem

Of every specification that separates a good carcass from a poor one, board thickness is the one you can actually influence with a single question.

15mm carcasses still exist in budget ranges from Wickes, some B&Q lines, and entry-level offerings at major retailers. The industry sometimes calls 15mm the "old industry standard" because it was common before the mid-2000s. It's cheaper per unit, slightly lighter, and looks nearly identical to 18mm from outside the box.

18mm carcasses are the current quality standard. IKEA METOD, Howdens, DIY Kitchens, Naked Kitchens, and the mid-to-premium Wren ranges are all 18mm. It's thicker, heavier, holds fixings better, and is more rigid across the full width of the cabinet.

The difference sounds marginal. It isn't, and here's why.

A standard concealed hinge (Blum, Hettich, Salice) uses two wood screws that grip into the vertical side panel of the carcass. Those screws need the panel to be thick enough to give them something to bite into. A 15mm board with a 2mm surface laminate leaves the screw only 12-13mm of actual chipboard to grip. An 18mm board leaves 15-16mm. Over years of opening and closing a cabinet door, that 3mm of extra grip is the difference between a hinge that holds indefinitely and one that works loose.

Independent fitters who have tested both materials report hinge failures in 15mm carcasses after 7 years of daily use: screws loose, holes enlarged, doors refusing to stay adjusted. The same test at 18mm shows no detectable movement. The same goes for shelf pins carrying 25kg of crockery: 15mm boards show measurable deflection after 6 months; 18mm boards don't.

Edgebanding: the 2mm ABS showroom test

Every cut edge of an MFC panel has to be sealed. The raw chipboard core is exposed on the cut face, and without a bonded edge it will absorb moisture, chip when knocked, and look ugly. The sealant is called edgebanding, and the specification is where most of the visible quality of a kitchen carcass comes from.

There are three edgebanding tiers, and the thickness alone tells you which tier you're looking at.

The specification that separates a quality MFC carcass from a budget one is 2mm ABS on the front edges (the edges you see when the cupboard door is open) with 0.4mm edging tape on internal and hidden edges. This is the DIY Kitchens spec, the Howdens mid-range spec, and the Naked Kitchens standard. It gives you the visible durability where it matters and doesn't waste money on edges nobody ever sees.

The budget spec is 0.4mm melamine tape on every edge. You can see it in a showroom: the front edge of the carcass has a very thin line of edging where it meets the face, often in a slightly different shade to the main carcass. Knock it with a fingernail and it feels like paper. On a cabinet that gets banged by a dishwasher door or a shoe over ten years of daily use, that paper-thin edging is the first thing to fail. The symptom is bubbles, lifts, and peels along front edges, usually starting near appliances that produce steam (dishwashers, kettles, hobs) and spreading from there.

The showroom test: walk up to a display cupboard, open the door, and run your thumbnail firmly along the front edge of the carcass. If it feels solid, slightly raised, and squared off, that's 2mm ABS. If it feels flat, slightly soft, and bends under the nail, that's 0.4mm melamine tape. No salesperson is going to volunteer this information. You have to check yourself.

Back panels: 8mm, 12-15mm, or 18mm

The back panel of a carcass does three jobs. It holds the box square during transport and installation. It closes the back of the cupboard so you don't see the wall. And it gives screws something to bite into when you wall-mount a wall unit.

Traditional budget kitchens used 3-6mm hardboard backs. Hardboard is cheap, flexes under any weight, absorbs moisture, and weakens over time. A hardboard back is why some old kitchens feel rattly and unstable when you open a door too hard: the box is only as rigid as its weakest panel.

Modern specifications split into three tiers:

• 8mm MFC back panel (DIY Kitchens' spec): rigid enough to hold the box square, thin enough to leave a 42mm service void behind the unit for pipes and cables to run through. The box remains rigid because the four faces are all 18mm MFC glued and dowelled together; the back is a stabiliser rather than a load-bearer.
• 12-15mm MFC back panel (Howdens' spec): more rigid in isolation, creates a stronger wall-mount anchor point, but reduces the available service void behind the unit. Fitters installing wall units over pipe runs or cable chases have more to plan around.
• 18mm solid MFC back panel (some SJB trade and premium suppliers): maximum rigidity, wall-unit fixings can go anywhere on the back, but the thickest spec available. Typically only used where fitters specify it for particular installation scenarios.

The practical consequence for homeowners: a DIY Kitchens carcass with an 8mm back and a 42mm service void is the right choice if your kitchen has plumbing, waste runs, or cable chases sitting behind the units. The fitter gets the room to route pipes cleanly. A Howdens carcass with a thicker back panel and a smaller service void is easier to install onto a flat masonry wall with no services behind it, but it's harder work to fit around a sink waste that needs to track horizontally behind the base units.

Neither spec is wrong. They're different trade-offs. If your kitchen fitter has already agreed to a supplier, ask them which service void depth they're working with and plan the plumbing route to suit.

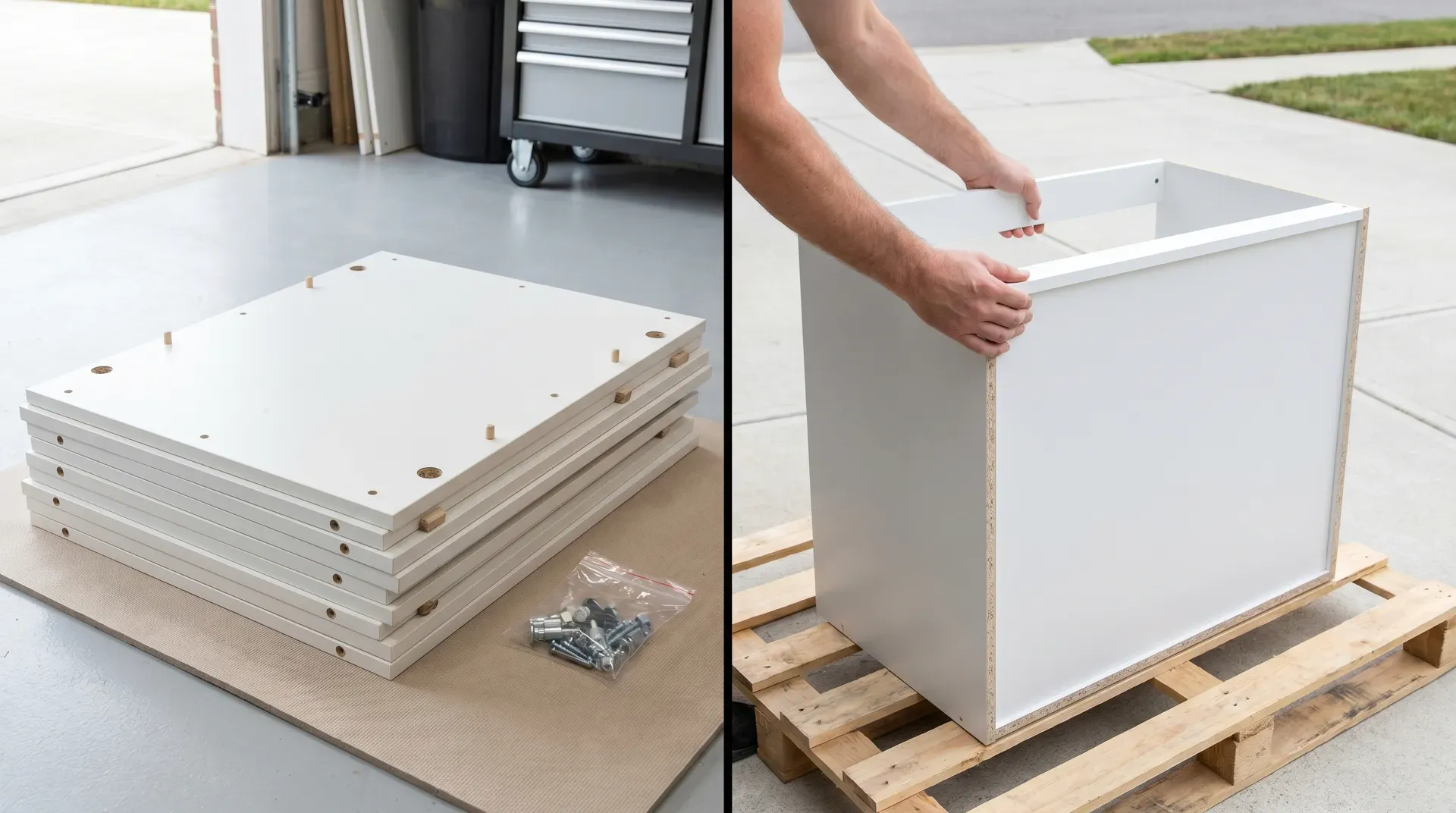

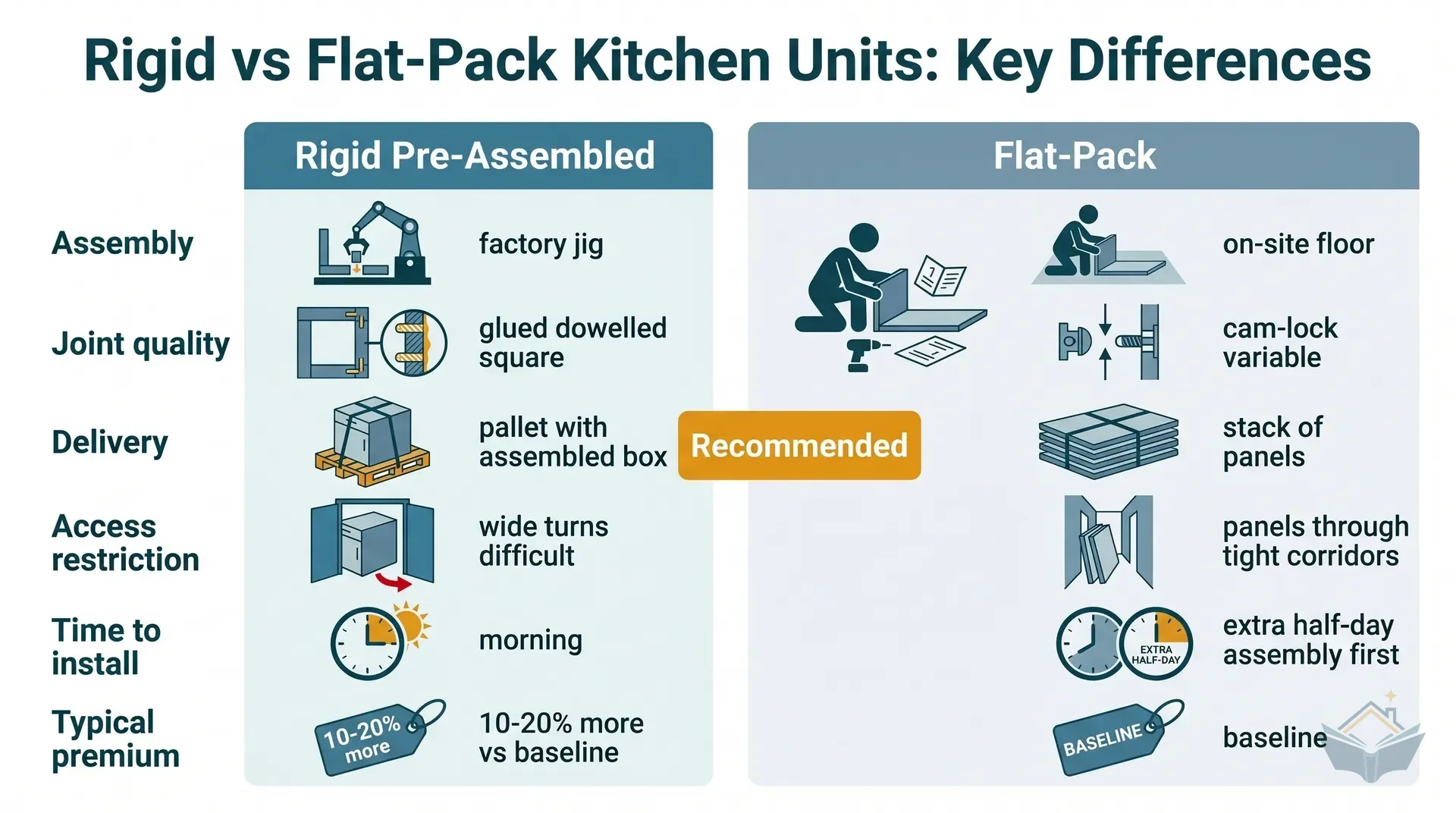

Flat-pack vs rigid: what you're actually buying

The single most confusing question in kitchen unit buying is whether to order rigid pre-assembled units or flat-pack units that arrive as panels.

Rigid units arrive fully assembled from the factory. The sides, top, bottom, and back are already glued, dowelled, and squared up under factory conditions. They're delivered to your driveway on a pallet. Your fitter lifts them into position, levels them, and screws adjacent units together. A typical kitchen's worth of rigid base units can be sat in position in a morning.

Flat-pack units arrive as a stack of panels, dowels, cam locks, and a bag of screws. Your fitter (or you) assembles each unit on site using cam-and-dowel joints, typically before fitting. A kitchen that arrives flat-pack takes half a day to a full day just to assemble before fitting can start.

Mapping this to UK suppliers:

• IKEA METOD: flat-pack only. You assemble every unit yourself or pay for IKEA's assembly service. The on-site assembly quality depends entirely on the person doing it.
• B&Q and Wickes budget ranges: flat-pack. Same as IKEA in principle.
• Howdens: rigid pre-assembled. Every unit arrives as a finished box.
• DIY Kitchens: rigid pre-assembled. Direct-to-home delivery of finished units.
• Wren: rigid pre-assembled at mid-range and premium levels.
• Naked Kitchens: rigid.
• deVOL: hand-assembled in the workshop, essentially rigid by a different route.

The quality argument favours rigid. Factory assembly happens on jigs, with professional glue application, under controlled humidity, and with trained operatives doing the same joint thousands of times. On-site flat-pack assembly happens on an uneven floor in a dusty kitchen with variable skill and time pressure. Flat-pack panels are also pre-drilled with more fixing holes than any single configuration uses, because the same panel has to work across multiple unit variants. Those extra holes are small weak points in the finished carcass.

Click to enlarge

The cost argument is less clear. Better Kitchens charges identical prices for flat-pack and rigid from the same supplier. Across the rest of the market, rigid typically costs 10-20% more than flat-pack, but the saving in assembly time (a day of fitter labour at £200-300) usually covers the premium.

The one genuine argument for flat-pack is access. If your kitchen sits at the top of a narrow Victorian staircase or down a tight corridor, flat-pack panels can be carried in where a 600mm assembled base unit won't fit round the corner. In a ground-floor extension with van access to the back door, rigid is easier every time.

Brand spec comparison

No consumer-facing kitchen guide assembles this data in one place, because each supplier publishes only their own headline specs and nobody makes the cross-comparison easy. Here's where the major UK suppliers actually sit.

A few things stand out when you line the suppliers up like this.

Howdens does not publish technical specifications. The carcass thickness, edgebanding, and back panel details above are all community-sourced from fitters and BuildHub contributors, not Howdens' own website. This is partly because Howdens is a trade-only supplier (you buy through a builder or fitter, not directly), and partly because they don't want consumers comparing spec sheets. If you're quoted a Howdens kitchen, your fitter is the only source for exactly what you're getting.

DIY Kitchens is the spec transparency leader. Every specification is published on their website: 18mm Egger board, 2mm PVC front edges, 0.4mm edging tape on internal edges, 8mm MFC backs. No other high-street-priced supplier publishes this level of detail. Whether DIY Kitchens is the right supplier for your kitchen is a separate question, but the spec sheet is a useful reference point for asking others the same questions.

Wren's "lifetime" warranty means lifetime on carcasses only. The doors carry a separate 5-year warranty. The headline is technically true but commercially misleading when compared to IKEA's 25-year single warranty that covers carcasses, hinges, and drawers together.

IKEA METOD is flat-pack only. The 25-year warranty is strong, but the real-world quality of an IKEA kitchen is heavily dependent on who assembled it. A professionally assembled IKEA kitchen can look and feel similar to a mid-range rigid kitchen. A self-assembled IKEA kitchen can look distinctly DIY from day one. Budget for professional assembly (£1,100-£2,200 on top of unit costs) if you're going this route and not comfortable with flat-pack.

Warranty small print

Every major supplier advertises a long warranty period: 25 years (IKEA, Howdens, DIY Kitchens), lifetime (Wren). The reality is that these warranties cover manufacturing defects, not wear, not moisture damage, and not improper installation. The gap between the headline number and what's actually covered is where homeowners get caught.

IKEA METOD's 25-year warranty explicitly excludes:

• Damage from moisture, including swelling caused by steam or spills left unattended
• Incorrect installation, including wall-mounted units that fail because of inadequate wall fixings
• Damage from abrasive cleaners or wrong cleaning products
• Doors, handles, and any visible wear components

Howdens' 25-year warranty runs to the trade account, not to the end consumer. If your builder or fitter has bought the kitchen through their trade account and has since stopped trading, your warranty claim route is complicated. Insisting on a copy of the Howdens order confirmation in your name at order time is the workaround.

Wren's lifetime warranty applies only to carcasses. Doors are on a separate 5-year warranty, drawers on 10 years, and water damage is excluded from all three.

DIY Kitchens' 25-year warranty follows the same pattern: manufacturing defects yes, water damage no. Their quality control is notably tight (community reports of out-of-square cabinets being replaced within 24 hours) but the warranty exclusions are standard.

The practical implication: do not rely on any warranty to cover moisture damage. Every major brand excludes it. Specify 2mm ABS front edges on any cabinet near a dishwasher, kettle, or hob. Check edgebanding integrity on delivery and refuse any unit with a damaged edge before it's installed. Fix plumbing leaks immediately. These are cheaper than a warranty claim that isn't going to succeed anyway.

How much do you need

Kitchen carcass costs are typically quoted as part of a total kitchen price, not per-unit. A full kitchen of carcasses (units only, no doors, no worktop, no appliances) typically sits at 35-45% of the total kitchen budget across all tiers.

Budget tier includes IKEA METOD, B&Q budget ranges, Wren entry-level. Units only, total for a typical UK kitchen sits in the [CostRange: missing price data for kitchen-total-budget-range] range depending on layout and size. An IKEA METOD 80cm base unit frame alone is around £52; a 40cm wall unit frame around £25. Add doors, hinges, legs, and hanging rails and the per-unit cost roughly doubles.

Mid-range tier covers Howdens, DIY Kitchens, mid-range Wren, Magnet. Units only, total for a typical kitchen sits in the [CostRange: missing price data for kitchen-total-midrange-range] range. Quotes for the same kitchen layout routinely show Howdens 40-100% more expensive than DIY Kitchens for specifications that community fitters describe as comparable.

Premium tier covers German (Poggenpohl, Leicht) and UK premium (Harvey Jones, Neptune mid-range). Units only, total sits in the [CostRange: missing price data for kitchen-total-premium-range] range. At this level, carcasses may be birch ply or premium MFC, with visible drawer boxes in oak or birch, and fully integrated storage systems.

Bespoke tier (deVOL, Neptune full, Roundhouse) starts at £25,000 for units alone and has no ceiling. Prime birch ply carcasses, hand-assembled, painted to order.

Sizing the number of units you need: measure each run of kitchen cabinets along the wall in linear metres, divide by the largest practical unit width (usually 1000mm for base, 800mm for wall), and then adjust to fit the exact layout. A small U-shape kitchen (3m x 2m floor plan) typically uses 7-9 base units, 5-7 wall units, and 1-2 tall units. A large open-plan kitchen extension (6m x 4m with island) typically uses 12-15 base units, 8-10 wall units, and 2-3 tall units.

Remember that unit pricing never includes the "finishing pieces" that tie the kitchen together. Fillers, plinths, cornices, pelmets, end panels, and scribe strips add real cost on top of the unit order. A typical kitchen adds [CostRange: missing price data for kitchen-finishing-pieces] in finishing pieces.

Alternatives and the DIY Kitchens question

If budget is the primary constraint, the alternative to premium or mid-range kitchens is flat-pack budget. IKEA METOD, Wickes budget, and B&Q budget all sit in a similar price band and with similar compromises: 15mm or 18mm MFC with thin edgebanding, flat-pack assembly, and warranty exclusions that bite hardest on the common failure modes (moisture damage). The saving is real, and for a rental property or utility-space kitchen the budget tier is defensible.

If quality is the primary constraint at a mid-range budget, the alternative to Howdens is DIY Kitchens. The community consensus across BuildHub, Mumsnet, and MoneySavingExpert is remarkably consistent: DIY Kitchens delivers comparable or better carcass quality (18mm Egger MFC, 2mm PVC front edges, 8mm back panels, Blum hinges and drawers as standard) at roughly half the price of a comparable Howdens specification. The trade-offs are no physical showroom (you're ordering based on published specs and photographs), a lead time typically 3-6 weeks (Howdens can deliver in days through trade depots), and you handle your own fitter sourcing (Howdens can recommend trade fitters who know the product).

If you have a trusted kitchen fitter who is willing to work with DIY Kitchens, the cost saving compared to Howdens at the same spec can fund a significantly better worktop, better appliances, or both. If you don't have a fitter and need the trade-depot convenience of Howdens' availability, the premium is buying time and reliability rather than material quality.

Common mistakes

Trusting the showroom without asking for specifications in writing. A showroom kitchen has been assembled by skilled installers, kept dry, and polished for display. Your kitchen will be installed by one fitter in a week and then lived in by a family for 20 years. The specifications on the order sheet are what matters, not how the display looks. Ask for the thickness, edgebanding, back panel, and warranty terms in writing before signing.

Ordering the budget range and paying for professional installation. Paying a £1,500-£2,000 premium for professional fitting of a £3,000 IKEA kitchen inverts the economics. A £4,500-£5,000 budget-plus-installation total costs similar to a mid-range rigid kitchen (DIY Kitchens with fitter, for example) that arrives with better carcass specifications. If you're paying for installation anyway, specifying mid-range units is usually better value than specifying budget units.

Assuming a service void is a service void. DIY Kitchens' 8mm back panel with 42mm service void is generous. Howdens' thicker back panel with different internal geometry can have as little as 20-25mm usable void for pipework behind the cabinet. If your kitchen layout has sink waste pipes running horizontally behind base units, or gas pipes chased into the wall behind the units, ask the fitter which supplier's service void depth matches the plumbing route before ordering.

Specifying 15mm carcass sides to save money. The per-unit saving between 15mm and 18mm is £5-15 per unit. Across a 12-unit kitchen, the total saving is £60-180. The cost of hinge-screw blowout in 15mm units after 7-10 years is a new kitchen, because failed hinges can't be reliably repaired in thin chipboard. This is the single worst place to cut cost.

Not checking edgebanding integrity on delivery. Damage happens in transit, in warehouses, and during initial unloading. A chipped front edge on a new unit will be a visible defect for the life of the kitchen unless you refuse delivery at the door and get a replacement sent. Inspect every visible edge before signing the delivery note. Reputable suppliers will replace damaged units promptly if defects are reported within 24-48 hours.

Where you'll need this

Kitchen unit carcasses are the single biggest material decision in the kitchen-design and second-fix phases of any extension or renovation project, and the specification you lock in here determines the durability of the finished kitchen for the next 15-25 years.

• Sourcing units and worktops - supplier selection, quote comparison, and what to check in a showroom before committing
• Kitchen installation - how carcasses are fitted, the sequencing with worktop templating, and what a quality install looks like when the units go in

Units are ordered 4-8 weeks before installation for rigid suppliers (DIY Kitchens, Wren, Naked Kitchens) and available within days for trade-depot suppliers (Howdens through a trade fitter, IKEA through click-and-collect). The specification questions in this guide are ones to ask before placing the order, not after. A kitchen ordered on a rushed timeline with unchecked specifications tends to deliver what looks fine on day one and starts failing quietly in years three to seven.
