Cabinet Connectors: The Bolts That Hold Your Kitchen Together

Your kitchen fitter runs ten base units along the wall, drives wood screws through the sides to join them, caps the ends, and fits worktops. Two years later, the chipboard carcass sides start flexing where the screws pass through. The joint between units three and four opens up by 2mm. The silicone bead along the worktop splits. Nobody caused it. The screws just did what tapered wood screws do in chipboard, which is pull through slowly under cyclic load. The fix is to lift the worktop, separate the units, and refit with proper connector bolts. Understanding what these fittings are and why they matter before installation begins is cheaper than fixing the join afterwards.

What they are and what they're for

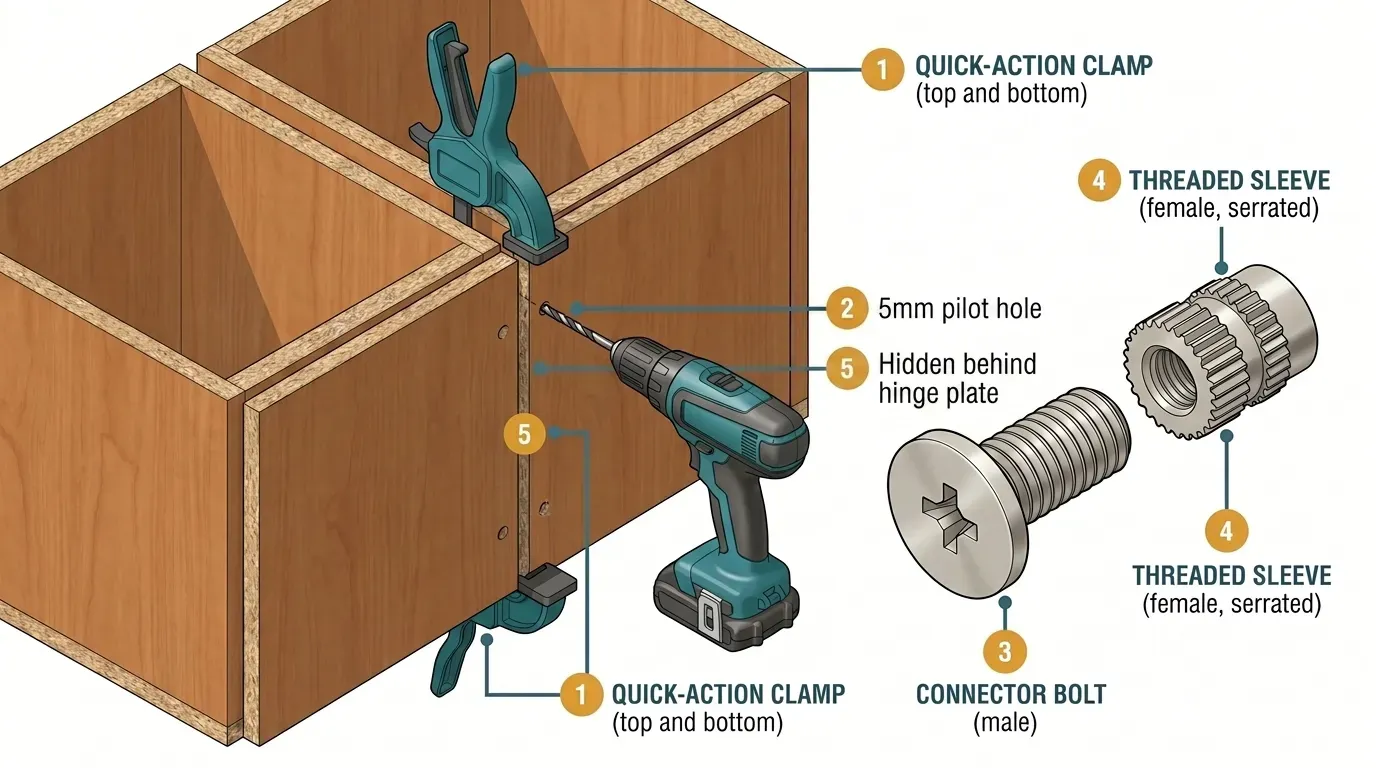

Cabinet connectors (also called cabinet bolts, carcass connectors, inter-screw connectors, or cabinet clamp bolts) are two-part fasteners used to join adjacent kitchen unit carcasses into a single rigid bank. Each fastener has a male bolt with a screwdriver slot on one end and a female threaded sleeve (sometimes called a barrel nut) on the other. They pass through a pilot hole drilled through both side panels at once. As you tighten the bolt, the two halves pull the panels together with parallel clamping force.

They are not wall fixings. Wall fixing is a separate operation using brackets or screws into the wall. Connectors do one job: hold unit A flush against unit B so that the row of cabinets behaves like a single block.

Why not just drive a wood screw through one side into the next? Kitchen carcasses are almost always 18mm melamine-faced chipboard or sometimes MDF. Both materials have low tensile strength perpendicular to the face. A tapered wood screw creates a cone-shaped grip in the chipboard, and under cyclic lateral load (every time you slam a drawer, rest on the worktop, or open a heavy door), that grip fatigues. The screw eventually pulls through. A dedicated connector bolt clamps in parallel with a much larger bearing surface on both sides of the joint, and it's demountable if you ever need to separate the units. The expert joiner position is consistent: "Standard wood screws are tapered and can pull through the soft chipboard often used in kitchen carcasses. Dedicated binding posts clamp the two units together with parallel force, offering a much stronger and safer join."

One other practical point. Connector bolts are almost always supplied in the fittings pack that comes with your units. Howdens kitchens include their own M5 flange bolts in the fitter's pack. DIY Kitchens, Wickes, B&Q, and other suppliers include generic M4 or M6 connectors. Check the fittings box before you buy anything. Only buy connectors separately if the pack is short, if you want to add rear connectors that weren't supplied, or if you're joining salvaged or second-hand units with no fittings.

Types and thread sizes

There are three common connector formats in UK kitchens, and they are not interchangeable. Mixing thread sizes on the same run guarantees frustration.

The critical trap is pilot hole diameter. Every mainstream source specifies a 5mm hole for the standard generic connector, and that's what you'll drill 95% of the time. Hafele sleeve-type connectors are the exception. Their plastic sleeve is 8mm diameter, and if you drill 5mm because you assumed, the sleeve won't seat. You'll either force it and split the melamine, or end up trying to drill out the hole to 8mm with both units already clamped (awkward at best). The fix is a 30-second check of the packet before the drill comes out.

The second trap is brand mixing. If you inherit a Howdens run and add a second-hand unit from elsewhere, the Howdens M5 bolt may not thread into a generic M4 sleeve from the donor unit. Connectors come as matched pairs; don't mix thread standards on the same joint.

Thread size does not translate directly to strength for the loads a kitchen bank has to carry. All three standard sizes (M4, M5, M6) in steel are more than adequate to hold a run of cabinets rigid under normal use. The thread size is mostly determined by the carcass manufacturer, not the engineering requirement.

How to work with them

Kit you need

A cordless drill with a 5mm HSS twist bit (or 8mm if you're using Hafele-type). Two quick-action clamps or G-clamps (top and bottom of the cabinet side). A PZ2 screwdriver bit or standard Phillips. A spirit level at least 600mm long for individual unit levelling, ideally a 1800mm level or a laser for checking across multiple units. A scrap piece of timber to back up the exit side of the hole and prevent melamine blowout.

A cordless impact driver is tempting but wrong for the final tightening. The high torque pulses will strip the sleeve thread or pull the flange through the chipboard. Use the screwdriver function on your combi drill with the clutch set low, or tighten by hand with a PZ2 screwdriver for the last quarter turn.

The sequence that matters

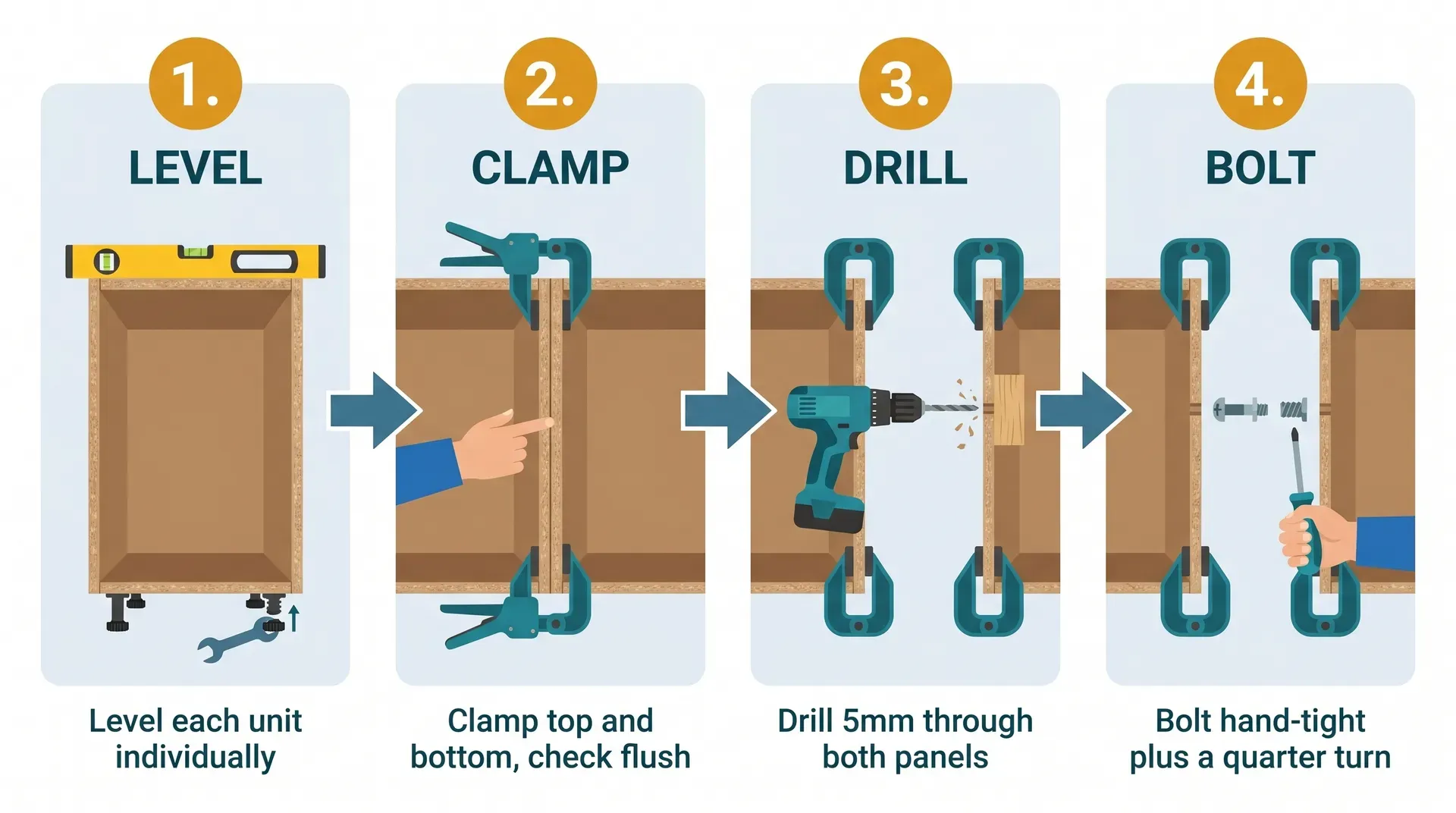

This is the single biggest source of installation failure. The professional sequence is:

1. Position unit 1 against the wall. Level it side-to-side and front-to-back using the adjustable feet. The unit must be level in both axes as a standalone item, before any neighbour is added.
2. Position unit 2 beside it. Level it individually in both axes as well.
3. With both units level, slide unit 2 tight against unit 1. Clamp them together top and bottom using quick-action or G-clamps. The clamps must pull the front faces flush. Run a fingertip across the join; if you can feel a step, adjust and reclamp.
4. With units still clamped, drill the 5mm pilot hole through both side panels at the same time, near the front edge. Back the exit side with a scrap timber block to prevent melamine blowout.
5. Insert the connector bolt from one side, the sleeve from the other, and tighten hand-tight plus a quarter turn. Don't overtighten.
6. Move to the next unit. Repeat levelling, clamping, drilling, bolting.
7. Only once the full run is joined into a single rigid block, fix the block to the wall with brackets or screws through the back rail into the studs or masonry.

Drilling without clamping first is the mistake that causes 90% of botched kitchen fits. Without pre-clamping, the drill bit follows the path of least resistance through the first panel, then exits slightly off-axis into the second. When you insert the bolt, it pulls the panels into alignment with whatever offset the drill created, leaving the front faces stepped. A stepped front face is obvious once doors are fitted, and the only fix is to undo the joint, redrill in a new position, and plug the original holes. Every reputable source emphasises this: clamp first, drill second.

Click to enlarge

Positioning the hole (so nobody sees it)

The professional convention is to place the pilot hole directly in front of the hinge mounting plate position, so the bolt head is concealed behind the door hinge once doors are re-hung. The European 32mm cabinet system puts hinge cup holes at 37mm from the front edge of the side panel. Drilling the connector hole 30-35mm from the front edge aligns it to sit behind the hinge plate.

Don't drill too close to the edge (under 25mm) because the chipboard can blow out or crack between the hole and the edge. Don't drill too far back (over 50mm) because the bolt becomes visible inside the cupboard.

Four connectors per joint is the right count for a base unit: two at the front (hidden behind hinge plates, top and bottom), two at the rear (behind the back panel, top and bottom). The rear pair prevents the cabinet twisting when worktop weight is applied. For wall units, four per joint is also appropriate though some fitters settle for two at the front.

The serrated sleeve problem

Here's a failure mode that catches people out and isn't documented in most installation guides. Some budget connector sleeves have a smooth outer surface. When you tighten the bolt, the sleeve spins freely in its hole rather than gripping the chipboard. You turn the bolt, the sleeve turns with it, and the joint never actually pulls tight. There's no fix short of replacing the connector.

Good connectors have serrated or ribbed sleeves that bite into the chipboard and prevent rotation. Check the packet before you buy. If the sleeve is smooth and shiny, put it back. The bulk packs with serrated sleeves (ZenHuaXinTon is a common brand on Amazon) are noticeably more reliable than cheap smooth-sleeve alternatives.

How many you need

For a typical 10-unit kitchen run there are approximately nine joins between units. At four connectors per join (two front, two rear), that's 36 connectors minimum. Add a handful for a tall unit or island return, plus wastage, and you're looking at around 50 connectors for a typical installation.

A couple of 10-packs from Screwfix covers it, or a single bulk 50-100 piece Amazon kit is more economical if you want a stock. The cost is trivial either way. Budget around £5-£10 for connectors for an entire kitchen. That's a rounding error against the cabinet cost itself, so there's no reason to skimp on quality.

If you're installing a Howdens kitchen, the fittings pack supplies exactly what you need. You shouldn't need to buy additional connectors unless you're adding rear connections that Howdens didn't pack. For DIY Kitchens, B&Q, Wickes, and similar, check the pack count against your unit count before the install day. Running short mid-install and having to drive to Screwfix wastes an hour.

Cost and where to buy

Cabinet connectors are a low-value consumable. The price per bolt is pennies; the differences between retailers are pence.

Product	Retailer	Pack	Typical price	Per bolt
Inter Screws M4 branded	Screwfix, Toolstation	10	£3.49	~35p
Easyfix Inter Screws M4	Screwfix	10	£1.69	~17p
Inter Screws M6 branded	Screwfix	10	£2.29	~23p
Easyfix Inter Screws M6	Screwfix	10	£1.89	~19p
GoodHome steel connector	B&Q	20	£4.00	20p
JMOOT M4 all-metal kit	Amazon UK	50	£8.98	~18p
ZenHuaXinTon (serrated)	Amazon UK	160	£6.29	~4p
Howdens M5 flange bolt	Howdens (trade only)	10	Trade	Trade

Screwfix and Toolstation are the easy retail options. Both stock branded and budget tiers of M4 and M6. The Easyfix range is fine for most installs; the difference between Easyfix and the branded line is packaging and plating, not structural reliability.

For bulk, the Amazon ZenHuaXinTon 160-piece kit is outstanding value and includes serrated sleeves. If you're fitting multiple kitchens or want a permanent stock for future repairs, this is the best buy. For a single kitchen, two Screwfix 10-packs of the appropriate thread size is faster.

Howdens M5 bolts are trade-only and supplied in the kitchen fittings pack. You don't buy these separately as a homeowner, and generic retail M5 bolts are rare. If you run short on a Howdens job, the answer is to ask your Howdens depot for a top-up pack, not to substitute a different thread size.

Hafele sleeve-type connectors are trade kitchen supplier stock. East Coast Kitchens and similar specialists carry them at around £3.95 per pair. If a bespoke fitter specified Hafele connectors, match like-for-like; don't substitute a 5mm generic.

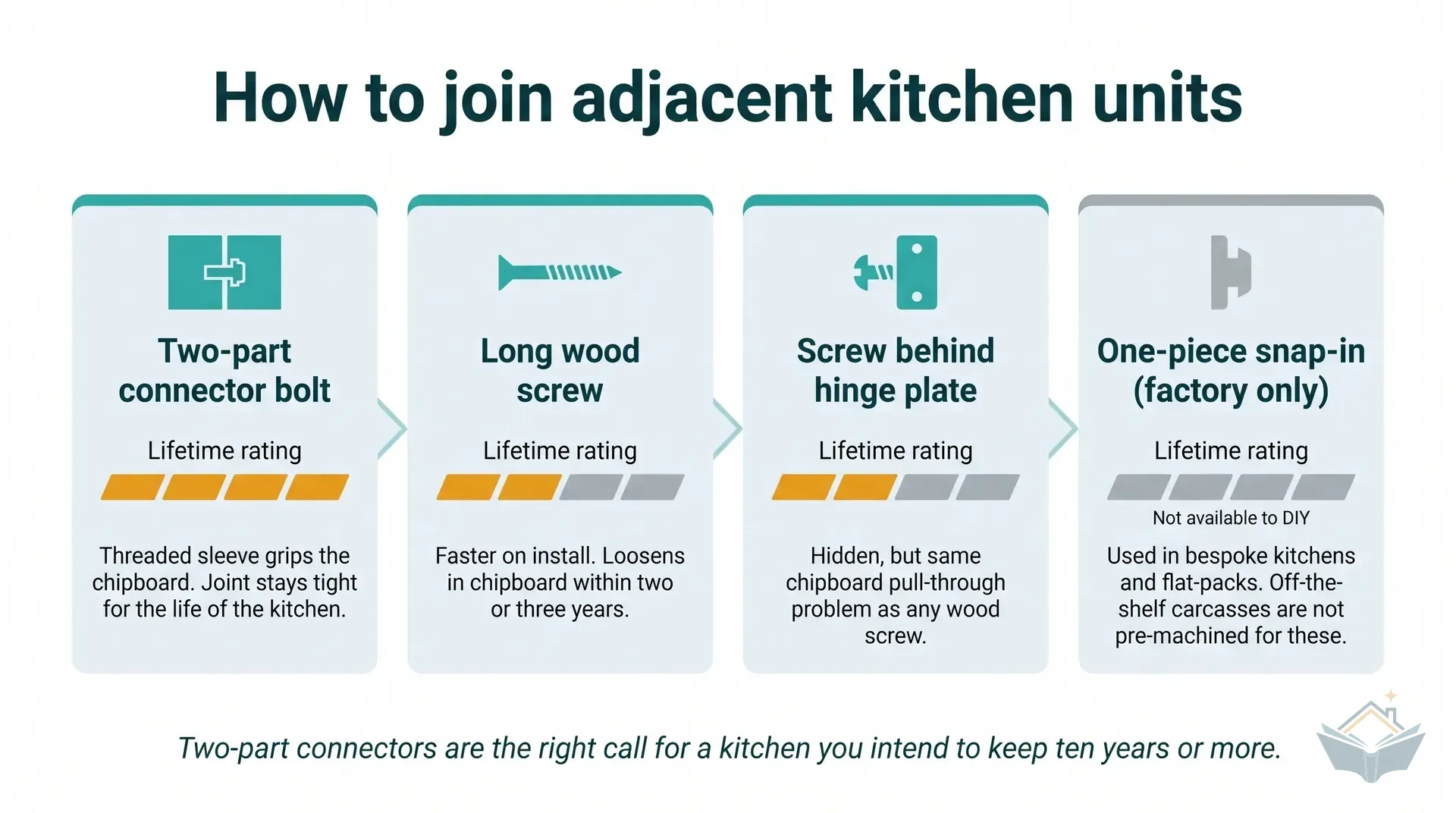

Alternatives

The main alternative to a two-part connector bolt is a long wood screw driven through one carcass side into the next. It's faster and uses fittings you already have. It's also the reason kitchens develop gaps at joints two or three years in. Wood screws in chipboard are a false economy. The time saved on install is paid back with interest when the joint loosens.

Another alternative is the screw-behind-hinge method, where a single wood screw is driven through the side panel behind where the hinge plate will sit, concealing the screw head. This is the Units Online approach and is sometimes used by fitters working quickly. It works for a few years but has the same chipboard pull-through problem as any wood screw in this location. For a kitchen you intend to keep for a decade or more, a proper two-part connector is the right call.

Lamello Cabineo and similar CNC-machined one-piece connectors are a factory-only option. The panel is bored with a specific profile during manufacture, and the connector is a single-piece snap-in fitting. These are used in high-end bespoke kitchens and IKEA-style flat-packs. They aren't available to a DIY fitter working with standard off-the-shelf carcasses.

Where you'll need this

Cabinet connectors are a specific consumable for kitchen unit installation. They come up at one stage of the build, but getting them right is what determines whether your kitchen looks like a continuous bank of cabinets or a row of individually-fitted boxes with visible gaps.

• Kitchen installation - the primary task where connectors are used, immediately after unit levelling and before wall fixing

These fittings appear in any kitchen installation on any extension or renovation project where new units are being fitted. The sequence (level, clamp, drill, bolt, then wall-fix) applies regardless of kitchen brand or project type. Spending 10 minutes checking your fittings pack, confirming the pilot hole diameter, and pre-clamping each joint before drilling prevents the stepped-front failure that turns a good kitchen into a mediocre one.

Common mistakes

Using a 5mm drill bit for a Hafele sleeve-type connector. The Hafele sleeve housing is 8mm, not 5mm. Check the packaging before drilling. This mistake is hard to undo because the units are already clamped in position.

Buying connectors with smooth sleeves. The sleeve must be serrated or ribbed to grip the chipboard and prevent rotation during tightening. A smooth sleeve spins with the bolt, so the joint never actually closes. Inspect the packet before you buy, or order a bulk kit with known serrated fittings.

Over-tightening with an impact driver. Chipboard is not metal. Hand-tight plus a quarter turn with a screwdriver is enough. An impact driver strips the sleeve thread or pulls the bolt flange through the melamine face. Use the clutch on a combi drill if you're driving with power, and finish by hand.

Connecting units before levelling each one individually. A unit that is out of level by even a couple of millimetres drags its neighbour out of true the moment they're bolted together. Level every unit on its feet, in both axes, before introducing it to the run. One laser level or a long spirit level makes this a five-minute check; skipping it makes the whole bank slope.

Fixing the first unit to the wall before connecting its neighbours. The professional sequence is connect-then-wall-fix, not wall-fix-then-connect. A unit already bolted to the wall cannot be adjusted to accept a slightly-out-of-square neighbour. Joining the full run into a rigid block first, then fixing that block to the wall, lets you absorb wall imperfections at the back without distorting the front face. The homeowner blog that wall-fixes first works on simple single-line runs but fails on anything involving a return or a tight corner.

Mixing thread standards on the same run. If you inherit Howdens units (M5) and add a salvaged unit (probably M4 or M6), the connectors won't thread together. Stay with the thread size supplied by the original manufacturer, or replace the entire run's connectors with a consistent generic set.
