Timber Connectors: Restraint Straps, Truss Clips, and Framing Anchors
The UK guide to timber connectors for extensions. Restraint straps, truss clips, and framing anchors - what building control checks, what they cost from £0.47 to £6.00 – £7.49, and the installation details that matter.
By Ian
Project managed a £182k Oxfordshire kitchen extension
Imagine inspecting a roof and finding restraint straps laid over the timber but never fixed. The steel is present, but the connection cannot transfer its design load. Check the strap fixings before the roof space becomes difficult to access.
That's not a freak case. It's documented. And it's the reason building control inspectors specifically check timber connectors at the pre-plaster stage. These are cheap fittings, a few pounds each, that prevent walls collapsing and roofs lifting off. Get them wrong and you have a structural failure. Get them right and nobody ever thinks about them again.
What timber connectors are
Timber connectors are galvanised steel straps, clips, and plates that tie structural timber elements to each other and to the masonry around them. Their job is resisting forces that nails alone can't handle, primarily wind uplift (which tries to peel the roof off the walls) and lateral movement (which pushes gable walls outwards).
Without these connectors, a masonry wall is just a stack of blocks sitting on top of each other with nothing stopping it from toppling sideways. A roof is just timber resting on a wall plate with nothing stopping the wind from lifting it. In normal weather, gravity and friction hold everything together. In a gale, they don't. UK storms routinely hit 70-80mph gusts. That's enough to lift an unrestrained roof structure clean off the walls.
One builder on a trade forum put it bluntly: "a grown man could push a gable wall out if it's not tied in." That's without wind. With it, the forces are vastly greater.
The connectors themselves are simple. Flat strips of galvanised steel with pre-punched holes for nails. Pressed steel clips that grip timber and wall plate simultaneously. Small folded brackets that join two or three timber members at angles. Nothing complicated to look at. But the specification, the nail count, the spacing, the way they're built into the blockwork, all of that is prescribed by Building Regulations and all of it gets inspected.

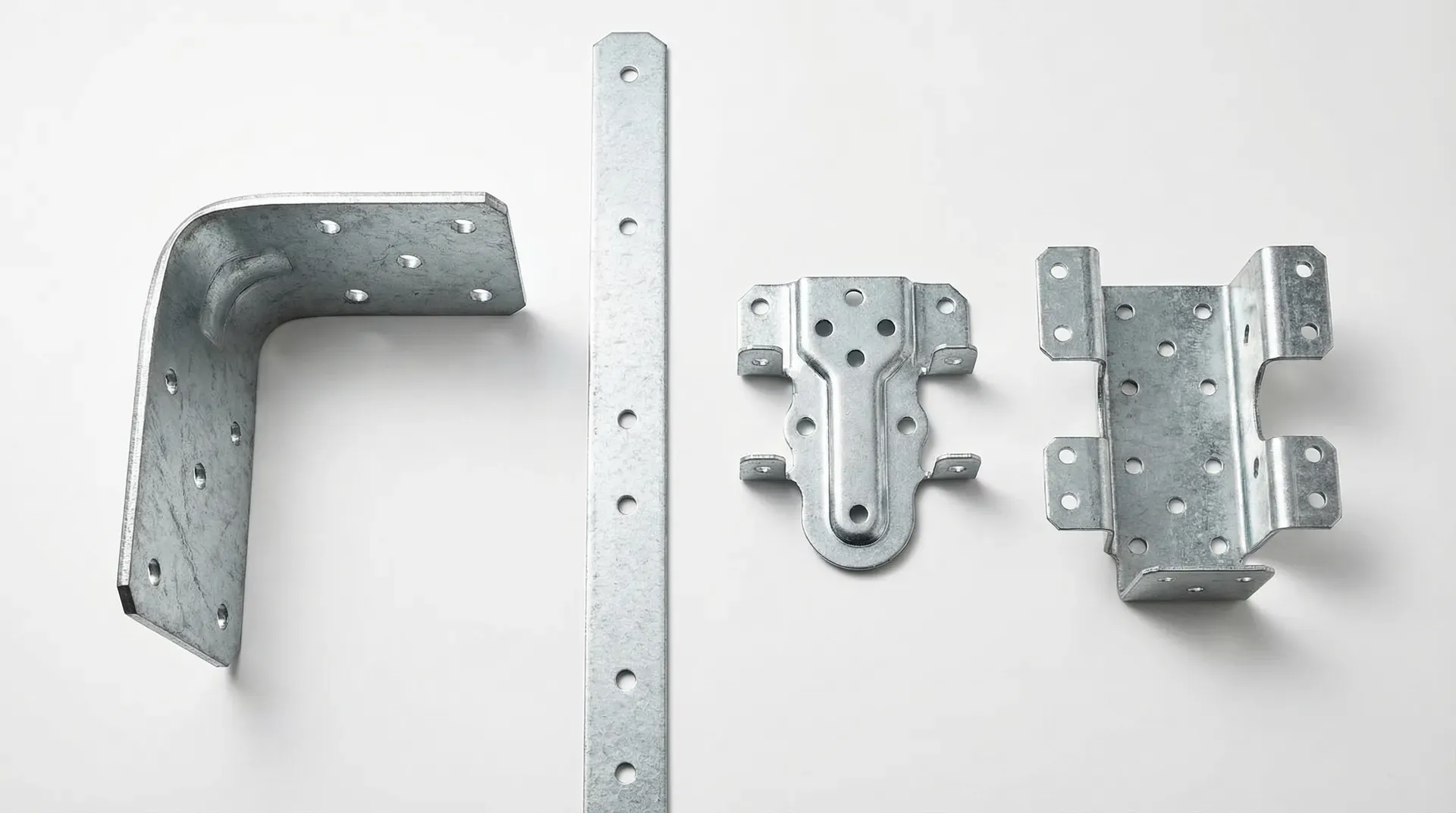

Types of timber connector
Four types cover virtually every domestic extension and roof project. Each does a different job, gets installed at a different stage, and building control checks each one separately.
| Connector | What it does | Where it goes | When installed | What BC checks | Cost each |
|---|---|---|---|---|---|
| Heavy restraint strap (typically 30x5mm) | Ties roof structure to inner leaf of masonry wall, resisting wind uplift and lateral movement | Gable walls: along the roof slopes, and at ceiling level on tall gables | Nailed across the roof timbers, end turned down over the gable's inner leaf as the gable is built up | Strap positions at 2m max centres, minimum 8 nails, strap tight to masonry, not kinked, 100mm downturn into blockwork | £6.00 – £7.49 |
| Light restraint strap | Holds timber wall plate down onto masonry, resisting vertical uplift | Top of inner leaf, running vertically from wall plate down the blockwork face | Built into blockwork during wall construction | Minimum 1m length, correct fixings into both timber and masonry | £3 |
| Truss clip | Locks each roof truss to the wall plate, preventing sideways movement and uplift | Every truss-to-wall-plate junction | Fitted as each truss is placed on the wall plate | Clip at each specified bearing, correct nail count, clips not bent or deformed | £0.47 |
| Framing anchor | Connects two or three timber members at angles, general-purpose structural joint | Joist-to-beam connections, trimmer joints, anywhere timber meets timber at 90 degrees | During first fix carpentry | Correct nail count, tabs bent to suit the joint geometry | £0.80 |
Heavy restraint straps
These are the ones that matter most and cause the most defects. A heavy restraint strap is a flat strip of galvanised or stainless steel with a 90-degree bend at one end. The traditional section is 30mm wide and 5mm thick, and retail straps are often a little thinner (28mm by 4mm is common). Approved Document A illustrates a 30 x 5mm galvanised mild steel strap (Diagram 15) and asks for straps that conform to BS EN 845-1 with a declared tensile strength of at least 8kN, fixed at no more than 2m centres. Check the pack or product page states both. The bent end tucks down into the blockwork by at least 100mm. The flat section runs across the top of the inner leaf and nails to the roof timber, spanning at least three trusses or joists.
They come in various lengths: 600mm, 800mm, 1000mm, 1200mm, 1500mm. The length you need depends on truss spacing and how far the strap needs to reach. Most domestic roofs at 600mm truss centres use 1000mm or 1200mm straps.
Heavy straps resist horizontal forces. They stop walls being pushed outwards by the roof spreading, and they stop the roof being lifted by wind. Approved Document A (paragraph 2C36 and Diagram 16) requires gable walls to be strapped to the roof at no more than 2m centres along the roof slopes, with straps at ceiling level as well where the gable is tall relative to the wall thickness. For buildings up to three storeys (which covers every domestic extension), 2m spacing is the rule.
Light restraint straps
For NHBC work, holding-down straps have a minimum 30mm x 2.5mm section under Chapter 7.2.6. These handle vertical loads only, holding the timber wall plate down onto the top of the blockwork wall. They run vertically down the inside face of the inner leaf and fix to both the wall plate (with nails) and the masonry (with screws into plugs or hardened masonry nails). Minimum 1m long, at no more than 2m centres at eaves level. Approved Document A lets you leave them out on a tiled or slated roof pitched at 15 degrees or more, with rafters or trusses at no more than 1.2m centres, in an area known to resist wind gusts. Flat roofs need them.
Truss clips
Small pressed-steel clips, sized to match your timber width (38mm, 44mm, 47mm, or 50mm). They grip the bottom chord of each truss where it sits on the wall plate. Provide the specified connection at each truss bearing on a wall plate. Without them, the trusses are just resting on the plate with nothing but gravity holding them in place.
Truss clips replaced the old method of skew-nailing (driving a nail diagonally through the truss into the wall plate). Skew-nailing risks splitting the timber, especially with modern kiln-dried softwood that's more brittle than the air-dried stock builders used decades ago.
Framing anchors
Versatile little brackets with bendable tabs. The Simpson Strong-Tie A35E is the standard. You bend the tabs on site to suit whatever angle you need: 90-degree joist-to-beam connections, trimmer joints around stairwells, any timber-to-timber joint that needs more than nails.
How to install them properly
This is the section that matters most if you're managing a build. Timber connectors are cheap and simple. The installation details are what building control actually inspects, and getting them wrong means failing the pre-plaster inspection.
Building Regulations: the non-negotiable requirements
Approved Document A (Structure) sets the baseline. For domestic extensions in England and Wales:
- Lateral restraint straps at 2 m maximum centres where gable walls meet the roof
- Straps must have a declared tensile strength of at least 8 kN
- Straps must conform to BS EN 845-1
- Strap end turned down over an uncut block of the inner leaf (Diagram 16); the usual specification is a downturn of at least 100 mm
- Straps must cross at least 3 trusses
NHBC 7.2.8 gives maximum lateral-restraint strap spacing of 2m for homes up to three storeys, or two storeys in Scotland. This is NHBC warranty guidance, not a substitute for the structural design or the applicable national building standards.
Nail specification
This is where builds fail inspection. The strap is only as strong as its fixings. An unfixed strap is decoration.
For Simpson Strong-Tie heavy restraint straps (the market leader), the manufacturer specification is: minimum 8 nails of 3.75 x 30mm galvanised square twist nails, evenly distributed along the strap length.
NHBC-warrantied buildings have an alternative fixing specification: 4 no. 50mm minimum x 4mm steel screws, or 4 no. 75mm x 4mm round wire nails, with one fixing into the third rafter. Both approaches are correct in their context. Use whichever your warranty provider or building control officer specifies.
For light restraint straps, the timber fixings are: 3 no. 3.75 x 30mm square twist nails into the wall plate. The masonry fixings are: 4mm x 75mm hardened masonry nails or 5.5mm x 50mm screws in plugs.
Truss clips take short nails through their pre-punched holes into both the truss and the wall plate. Follow the manufacturer's stamped instructions on the clip. It's usually 4-6 nails per clip.
The installation sequence that matters
Vertical (light) straps at eaves are fixed down the inside face of the inner leaf and turned over the wall plate (Approved Document A Diagram 16), so fit them before the walls are lined. Heavy gable straps are fixed across the roof timbers and their bent ends turned down over the gable's inner leaf as the gable is built up, so they cannot be properly retrofitted afterwards.
Fix the straps to the blockwork
Vertical straps for the wall plate are fixed down the inside face of the inner leaf, with screws into plugs or hardened masonry nails, and turned over the plate. Gable straps go in as the gable inner leaf is built up to the roof timbers: the bent end turns down over an uncut block, tight against it. No gaps, no kinks, no bends.
Install the wall plate and trusses
The wall plate goes on and the trusses go up before the gables are raised. At each gable strap position, fit noggings and packing between the trusses so the strap lies flat across solid timber.
Fix with the correct nails
Drive 8 no. 3.75 x 30mm galvanised square twist nails through the pre-punched holes, evenly distributed along the strap length. The strap must span at least three trusses. Follow the designed fixing arrangement. NHBC also permits a specific longitudinal-bracing arrangement with eight 25mm x 4mm steel screws; do not mix its fixing schedule with the nogging arrangement.
Install truss clips at every junction
Fit a truss clip at every point where a truss bottom chord meets the wall plate. Use the specified number and position of clips and the manufacturer's fixing schedule.
The critical thing about this sequence: step one happens during wall construction, possibly weeks before the roof goes on. If the bricklayer forgets to build the straps in, you have a serious problem that's expensive to fix later.

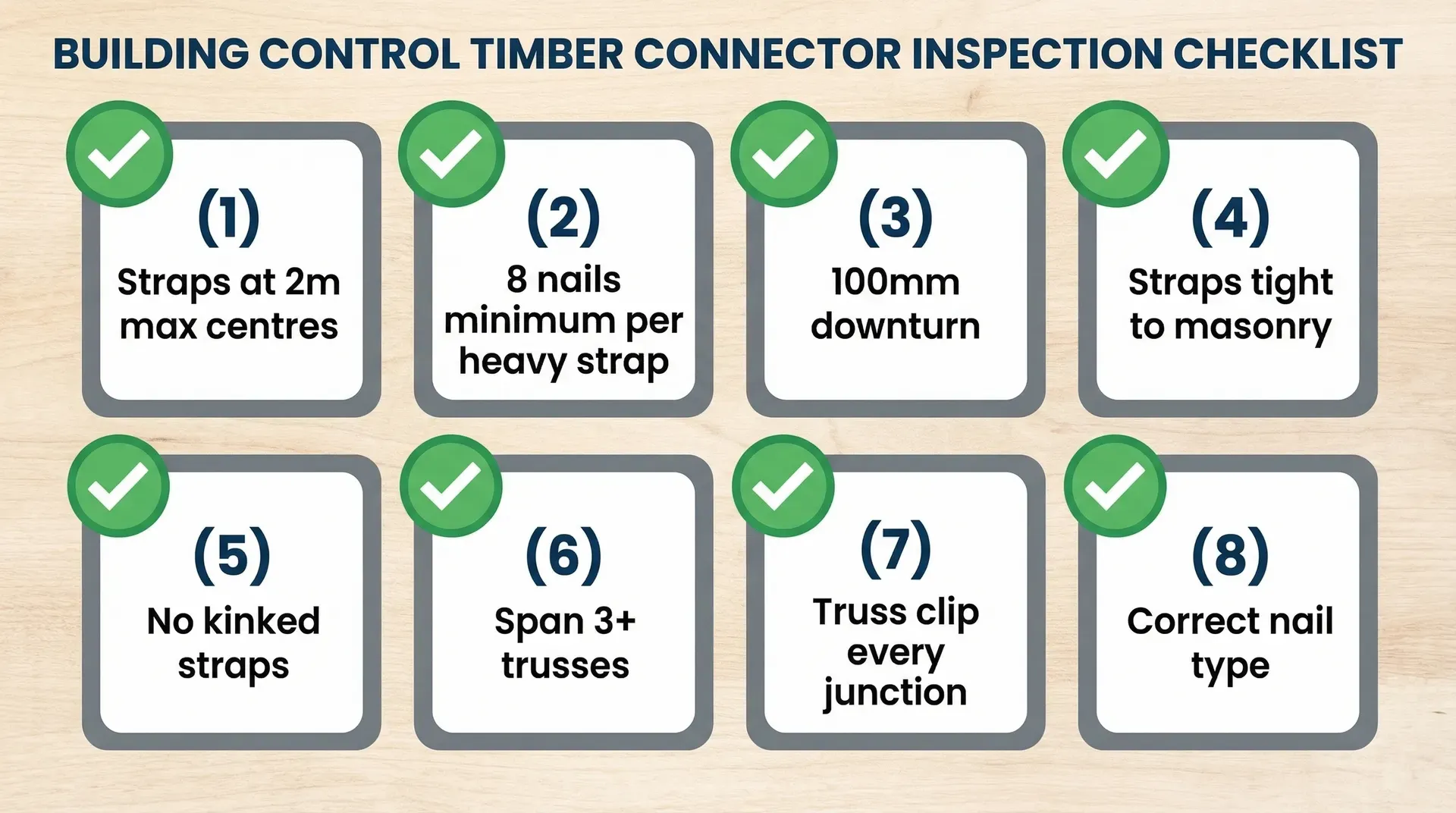

What building control inspects
Building control checks timber connectors at two stages. First, at the roof structure inspection (truss clips, strap positions relative to trusses). Second, at the pre-plaster inspection (everything visible in the roof space before it gets boarded over or insulated).
They check:
- Strap positions at correct centres (2m maximum)
- Correct nail count in every strap (they will count them)
- Straps tight against the masonry face with no gaps
- Straps not kinked, bent, or twisted
- 100mm minimum downturn built into blockwork
- Straps spanning at least three trusses
- Truss clips on every truss-to-wall-plate junction
- Correct nail type (square twist, not round wire for the main strap fixings)
Fail any of these and you'll be asked to rectify before sign-off. Retrofitting straps that should have been built in means drilling, plugging, and screwing into the masonry face, which is never as strong as a properly bedded strap.
Warning
A builder shortcut that's widespread but non-compliant: fixing restraint straps to the longitudinal diagonal bracing that runs across the truss tops instead of to noggings between trusses. This looks tidy and is quicker, but it doesn't comply with Building Regulations guidance. If your builder does this, the BCO can (and should) reject it.
How much you need

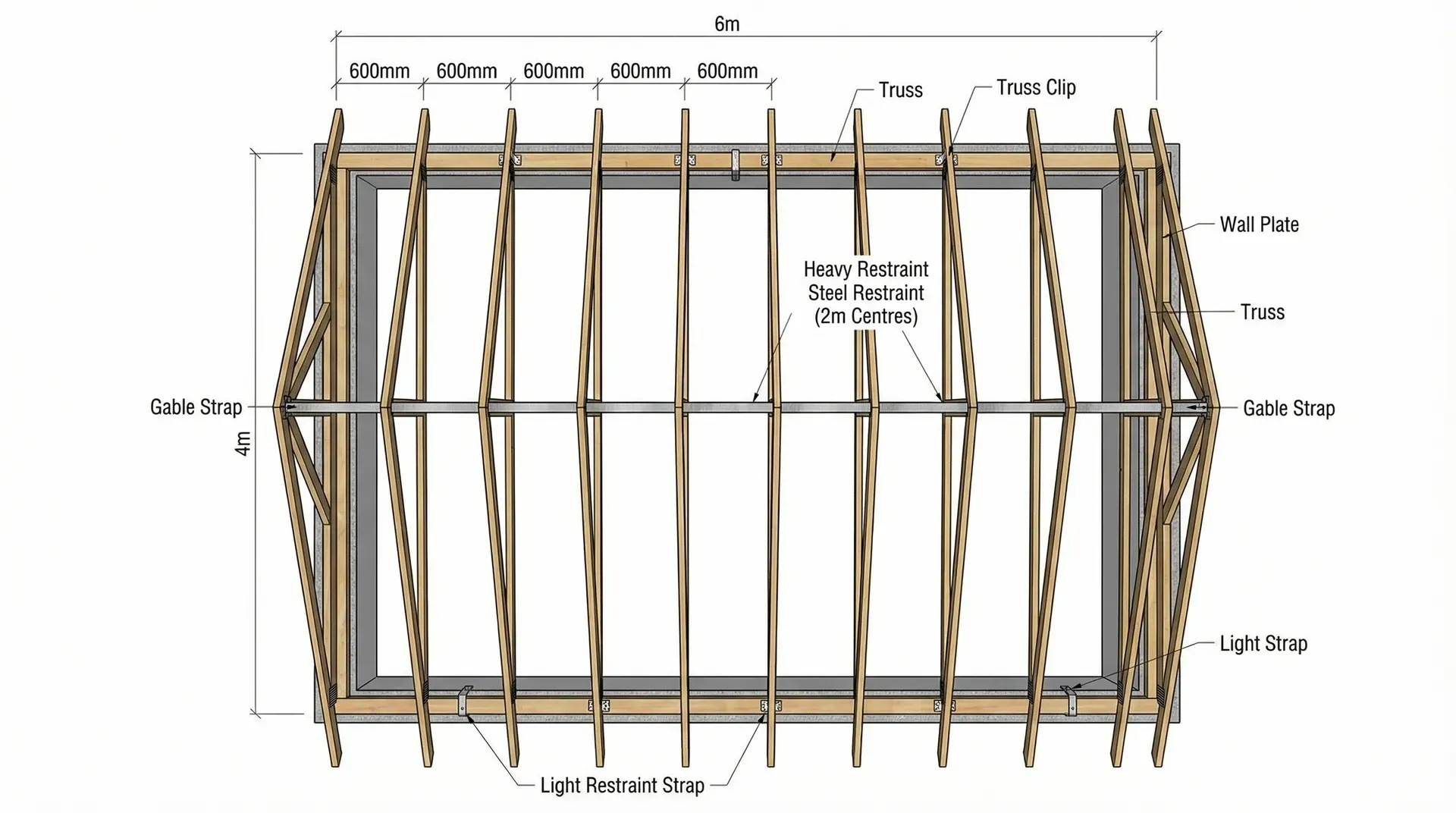

For a typical single-storey rear extension with a pitched roof:
Restraint straps (heavy duty): These go where a gable wall meets the roof, at no more than 2m centres up each roof slope, plus straps at ceiling level on a tall gable. A gable on a 4m-wide extension typically takes two straps per slope, so allow around 4 per gable. Your engineer's or truss designer's drawings set the exact number.
Restraint straps (light duty): Where they are needed (see above), one per wall plate anchor point, typically at 2m centres along the wall plate. Same 6m extension: 4-6 light straps.
Truss clips: One per truss, per bearing point. Trusses at 600mm centres across a 6m span means 11 trusses, each with clips at both ends. That's 22 truss clips. Buy a 20-pack and a spare pack. They're cheap enough to over-order.
Framing anchors: Depends on your roof design. Valley junctions, trimmer details, any non-standard timber joint. A simple roof might need 6-8. A cut roof with valleys could need 15-20. Your structural engineer's drawings will show every connection.
Cost and where to buy
Price the connector schedule from the structural design: strap count, clip count and fixings vary with the roof and wall arrangement.
Restraint straps (heavy duty):
- Simpson Strong-Tie 1000mm bent, 10-pack: £59.99 (about £6.00 – £7.49 each)
- BPC Fixings 1000mm bent (Toolstation): £7.49 each
- Simpson Strong-Tie 600mm flat, 10-pack: £34.99 (about £3.50 each)
Restraint straps (light duty):
- Simpson Strong-Tie 1000mm bent, 10-pack: £29.99 (about £3 each)
- BPC Fixings 1200mm bent (Toolstation): £3.59 each
Truss clips:
- Simpson Strong-Tie 47mm, 20-pack: £9.49 (about £0.47 each)
- Simpson Strong-Tie 38mm, 20-pack: £8.49 (about £0.42 each)
- Simpson Strong-Tie 44mm, 20-pack: £9.99
Framing anchors:
- Simpson Strong-Tie A35E, 10-pack: £7.99 (about £0.80 each)
Match your truss clip width to your timber. Measure the actual truss bottom chord. Most modern trusses use 35mm or 47mm C16/C24 timber, but check. A 47mm clip on 35mm timber won't grip properly.
Simpson Strong-Tie dominates the UK market. Sabrefix is the main alternative at similar pricing with DX275 galvanising. BPC Fixings offers a slightly cheaper range, widely stocked at Toolstation. Expamet covers the basics but has a smaller product range. All are adequate for domestic work. Pick whichever your merchant stocks.
External resource
Screwfix - Restraint Straps
Simpson Strong-Tie restraint straps in various lengths and configurations. Pack pricing with next-day delivery.
screwfix.com
External resource
Screwfix - Truss Clips
Truss clips from Simpson Strong-Tie and Sabrefix. 20-packs from under a tenner.
screwfix.com
Where to buy Timber Connectors
Check current prices from UK suppliers.
These are affiliate links: if you buy through them we may earn a small commission, at no extra cost to you. Learn more.
Alternatives
In older buildings, builders used traditional built-in ties: strips of hoop iron or bent steel flats bedded into mortar joints and nailed to timber. Some pre-war houses have nothing at all, relying entirely on the weight of the roof and the friction between wall plate and blockwork.
Traditional ties work, in the sense that millions of older houses haven't blown apart. But they're slower to install, less consistent, and harder for building control to verify. Modern pressed-steel connectors are engineered to a declared load capacity, CE marked, and designed to be inspected. There's no reason to use anything else on new work.
Angle brackets can substitute for framing anchors in some non-structural timber-to-timber joints. But they're not a replacement for restraint straps or truss clips. Those do a job that nothing else does as well.
Where you'll need this
Timber connectors appear at two stages of your build and one inspection point:
- Walls and blockwork - gable restraint straps must go in as the gable inner leaf is built up. This is a hold point. If the bricklayer gets past the strap courses without them, you're looking at a retrofit that's weaker and more expensive. Watch this stage closely, or have your project manager watch it.
- Roof structure - truss clips go on as each truss is placed. Heavy straps get their nail fixings once the trusses are in position. Light straps get their timber fixings to the wall plate. Framing anchors go in wherever the structural engineer has specified timber-to-timber connections.
- Building control inspection - the BCO inspects at roof structure stage and again at pre-plaster. They check positions, nail counts, strap condition. This is one of the items they always check. Not sometimes. Always.
Common mistakes
Forgetting to build straps into the blockwork. The most expensive mistake because it's the hardest to fix. Once the walls are up and the roof is on, you can't go back and bed a strap into a mortar joint. The retrofit option (screw-fixing straps to the masonry face with plugs and masonry screws) works, but it's weaker than a built-in strap, costs more in labour, and some BCOs will push back on it. Tell your bricklayer before work starts: straps go in at the specified courses, no exceptions.
Insufficient nails. Missing fixings leave a connector unable to achieve its design capacity. Sometimes, builders put in two or three nails instead of eight because the strap "looks secure enough." It isn't. Wind loads are intermittent and cumulative. A strap with three nails will hold the timber down on a calm day. Its resistance to the design wind load has not been demonstrated. Count the nails yourself.
Kinked or bent straps. A strap that's been bent, kinked, or twisted during handling has reduced tensile strength. The kink creates a stress concentration point that can fail under load. Straps should be straight along their length with only the manufactured bends (the downturn into masonry). If a strap gets damaged, replace it. They cost a few pounds.
Wrong strap type. Heavy duty for horizontal restraint (roof-to-wall, floor-to-wall). Light duty for vertical loads (wall plate to masonry). Using a light strap where a heavy strap should go means half the tensile capacity and a potential inspection failure.
Fixing to bracing instead of noggings. Longitudinal diagonal bracing runs across the top of truss webs to stabilise the roof structure. It's tempting to nail the restraint strap to this bracing because it's already there and runs in the right direction. Don't. The strap must fix to noggings fitted between trusses, or to the truss members themselves, not to bracing. Fixing to bracing doesn't transfer the restraint load into the truss structure correctly.
Skipping truss clips and relying on skew-nailing. Skew-nailing a truss to a wall plate risks splitting the timber and doesn't provide the same restraint as a properly fitted clip. Truss clips cost under 50p each. There's no reason to skip them.
These are not cosmetic issues. Every one of these mistakes reduces the ability of your roof and walls to resist wind forces. The UK doesn't get hurricanes, but it gets plenty of storms that will test every connection in a roof structure. Timber connectors are the cheapest structural insurance on any build. Get them right.
