Nails: Types, Sizes, and When Each One Matters

An OSB racking board on a timber frame extension, fixed with round wire nails instead of ring shank, will pop off the studs in a strong wind. The board looks fixed. It isn't. Round wire nails in sheet materials have less than a third of the pull-out resistance of ring shank nails. That racking board is the only thing stopping the wall from folding like a hinge under lateral load.

Or a floor that bounces. Joist hangers fixed with whatever smooth nails were lying around on site, instead of the specified 30x3.75mm galvanised square twist nails. Building control will spot it. You'll strip the lot and redo them.

Nails are the oldest fixing in construction. They're also the most misunderstood. The wrong nail in the wrong place isn't just inefficient. It's a structural failure waiting to happen.

What nails are and what they do

A nail is a pointed metal shaft with a head, driven into timber (or through one material into another) by impact. The head distributes the load across the surface. The shaft grips the timber fibres through friction, and in the case of ring shank or twist nails, through mechanical interlock.

Nails work primarily in shear, resisting sideways forces where two pieces of timber meet. Screws are better at resisting pull-out (withdrawal). This distinction matters. Structural connections that experience shear loads, like joist hangers and truss clips, need nails. Not screws. There have been deck collapses where screws were used in joist hangers instead of nails, because screws snapped under the lateral load they were never designed to carry.

The sizing rule is straightforward: pick a nail at least 2.5 times the thickness of the material you're fixing, ideally 3 times. Fixing 18mm OSB? You need a minimum 45mm nail, ideally 50mm or longer. Fixing a 25mm batten? Use 65mm nails. The extra length gives you enough penetration into the timber behind.

Types of nails

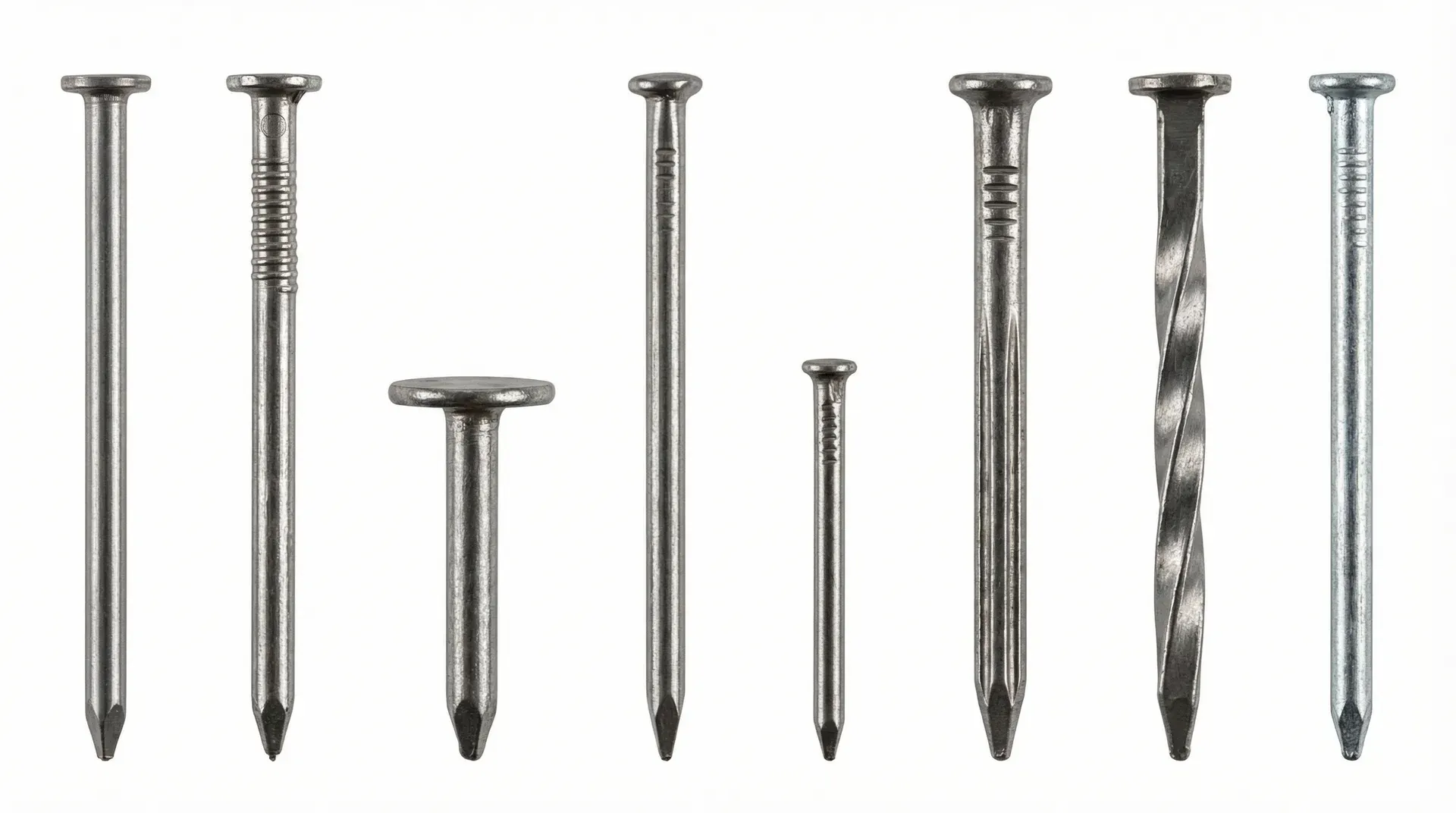

There are eight types you'll encounter on a UK building project. Each exists for a reason.

Click to enlarge

Round wire nails are the default. If someone says "nails" without a qualifier, they mean these. Smooth shaft, flat head, bright (uncoated) steel. They're fine for internal framing: stud walls, nogging, sole plates, top plates. Quick to drive, easy to pull out if you make a mistake. That easy pull-out is also their weakness. They don't belong in any application where withdrawal resistance matters.

Ring shank nails have concentric rings stamped along the shaft. Those rings dig into timber fibres and lock. Research from the APA shows ring shank nails provide 276% higher withdrawal capacity than plain shank nails in plywood, and similar performance in OSB. That's not a marginal improvement. It's the difference between a racking board that stays put in a gale and one that doesn't. Ring shank is specified for all structural sheet material fixing: plywood and OSB racking boards, structural floor decking, roof sheathing. Don't substitute round wire.

Clout nails have a head roughly twice the diameter of a round wire nail's head. That extra head area stops the nail pulling through thin sheet materials. Roofing felt, breathable membrane, sarking board edges. Galvanised clouts are standard for roofing work.

Square twist nails deserve their own section.

Joist hanger nails: get this right

This is the single most common structural nailing mistake on UK extension sites. Joist hangers, truss clips, and restraint straps require 30x3.75mm galvanised square twist nails. Not round wire. Not smooth shank. Not screws. Square twist, 30mm long, 3.75mm gauge, galvanised.

The twisted square cross-section of these nails grips the timber and absorbs the micro-movements that happen as a timber structure dries and settles. Round wire nails in joist hangers can work loose over time as the timber shrinks around them. Square twist nails don't.

Building control inspects structural nail types at joist hangers, truss clips, and restraint straps before those connections get covered up. Wrong nails at inspection means stripping back and refixing everything. Buy the right nails before you start. A 1kg box of 30x3.75mm sheradised square twist nails costs TBC at Screwfix, roughly TBC for 500g at Toolstation. You get approximately 350-400 nails per kilogram.

Every nail hole in the joist hanger must be filled. Simpson Strong-Tie truss clips, for example, require six nails: three into the truss, three into the wall plate. Miss one and the connection is under-specified.

You can't use a standard nail gun for joist hangers. The nail needs to align with the pre-punched holes in the hanger, and a framing nailer fires wherever the barrel points. Specialist positive placement nailers exist (around £500), but most builders and all DIYers hand-nail joist hangers with a claw hammer. It's slower. It's the right way.

Click to enlarge

How to work with nails

Hand nailing

Hand-nailing is a skill. A bad technique means bent nails, split timber, and bruised thumbs.

Hold the nail between your thumb and forefinger, near the base, not the top. Tap it gently two or three times to set it into the timber. Once it stands on its own, move your fingers clear and swing harder. Keep your eye on the nail head, not the hammer. The hammer follows your eye.

Swing so the nail shaft is at right angles to the hammer face when they meet. An angled strike bends the nail. Use the weight of the hammer, not brute force. A 16oz claw hammer is the right weight for general carpentry. Anything lighter makes driving 75mm+ nails painful. Anything heavier fatigues your wrist.

Split timber is the other common problem. Nailing near the end of a board, within 25mm of the edge, almost always splits it. Pre-drill a pilot hole at 80-90% of the nail diameter, or blunt the nail point with a tap of the hammer. A blunt point tears through timber fibres instead of wedging them apart, which dramatically reduces splitting. Oval wire nails are designed for this: the oval cross-section follows the grain rather than forcing it apart.

Toe nailing (sometimes called tosh nailing) means driving the nail at roughly 45 degrees through one piece of timber into another. It's how you fix a stud to a sole plate without access from underneath. Drive two nails from opposite sides to stop the joint pulling apart.

Nail guns

On any structural framing job of any size, you'll use a nail gun. Or your builder will. Hand-driving 90mm nails into stud work for an entire extension is theoretically possible and practically absurd.

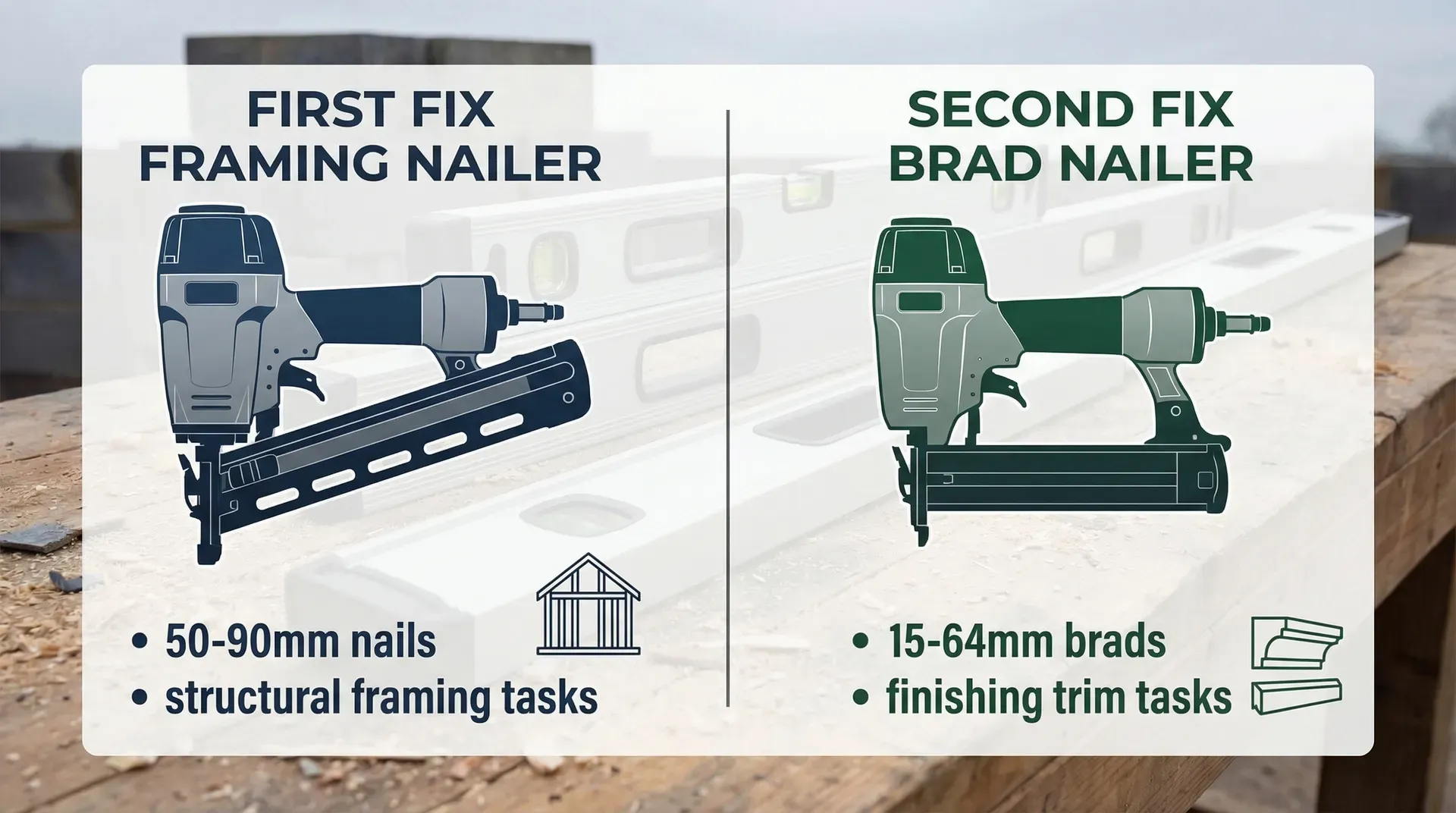

First fix framing nailers fire 50-90mm collated nails. The Paslode IM350+ is the UK industry standard, and it's what roughly 99% of structural timber-to-timber connections on British building sites use. These are gas-powered, cordless, and fast. Collated nails come in strips of 34-degree D-head nails, available as smooth shank (bright or galvanised) or ring shank (galvanised). A 2,200-pack of Paslode bright smooth 90mm nails costs TBC. A 1,100-pack of hot-dip galvanised ring shank 75mm nails costs TBC.

Second fix brad nailers fire 15-64mm 16-gauge brads. These are for finishing: skirting boards, architrave, door casings, panelling. The brad has a tiny head that sits below the timber surface, leaving a small hole you fill before painting. The Paslode IM65A and DeWalt DCN680N are the popular choices.

If you're a homeowner doing significant timber work, hire a first fix nailer for the framing phase. Buying only makes sense if you'll use it repeatedly. Second fix nailers are worth owning if you're fitting your own skirting, architrave, and trim across an entire house.

Click to enlarge

The ring shank advantage

When ring shank nails are specified, don't substitute round wire to save a few pounds. The numbers are stark. In tested withdrawal (pull-out) resistance:

• Plain shank nails in plywood: 79.7 lbs/in of penetration
• Ring shank nails in plywood: 316.3 lbs/in of penetration

That's a 276% improvement. In OSB the gap is similar: 67.6 lbs/in for plain shank, 281.5 lbs/in for ring shank. This data comes from APA peer-reviewed research, not marketing claims.

Ring shank nails are harder to remove. That's the point. But it also means mistakes are expensive. Make sure the board is correctly positioned before you start nailing. Once a ring shank nail is in, pulling it out damages both the nail hole and the board.

How much do you need

Nails are sold by weight, not count. A 1kg box of 75mm round wire nails contains around 180 nails. A 1kg box of 40mm nails has roughly 680. The difference matters for ordering.

For a rough estimate on a timber frame extension: budget 5kg of 90mm collated nails for general framing (stud walls, nogging, joist trimming), 2kg of 50mm ring shank for OSB racking and sheathing, 2kg of clout nails for roofing felt and membrane, and 1kg of 30mm square twist for joist hangers and truss clips. That's a starting point, not a precise schedule. Your structural engineer's drawings will specify exact nailing patterns.

Cost and where to buy

Nails are a commodity. Brand matters less than type and finish. Easyfix (Screwfix own brand), Timco, and F&F (Toolstation) all do the job. For collated nails, Paslode dominates the UK market because their guns dominate the UK market, and the nails must match the gun.

Loose nails (per 1kg box)

Galvanised ring shank nails cost 3-4 times more than bright round wire equivalents. That premium is worth paying for external structural sheet material fixing. For internal framing where the timber stays dry, bright round wire or bright ring shank does the job at a fraction of the cost.

Copper clout nails for slate roofing run around TBC per kilogram. Expensive, but copper won't corrode against slate over a 60-year roof life. Your roofer should be using these, not galvanised.

Collated nails (nail gun)

Collated nails cost more per nail but save enormous amounts of time. A pack of 2,200 Paslode bright 90mm nails at TBC works out to roughly TBC per nail. A pack of 1,100 hot-dip galvanised ring shank 75mm at TBC is approximately TBC per nail. That's pennies. The labour saving compared to hand-driving 2,200 nails is where the real value sits.

Buy from Screwfix, Toolstation, or your local builders merchant. Nails are heavy and bulky, so click-and-collect beats delivery if you can. Travis Perkins and Jewson carry deeper stock of specialist types (sheradised square twist, stainless steel clouts) than the retail sheds.

Alternatives to nails

Wood screws offer higher withdrawal resistance and can be removed cleanly. They're slower to drive (even with an impact driver) and more expensive per unit. Use screws where you need to pull things tight, where you need to disassemble later, or where withdrawal resistance matters more than shear strength. Don't use screws in structural shear connections. That includes joist hangers, truss clips, and restraint straps.

Staples fix sheet materials quickly using a staple gun or pneumatic stapler. Common for fixing breathable membrane to timber framing, building paper, and vapour barriers. They don't have the holding power of nails for structural applications, but for sheet membrane work they're fast and adequate.

Neither alternative replaces nails for structural framing. Nails remain the specified fastener for timber-to-timber structural connections across UK construction.

Where you'll need nails on your project

• Roof structure - fixing roof battens to rafters (65mm galvanised round wire or ring shank), boarding out flat roofs (ring shank into joists), structural timber connections via nail gun
• Roof covering - fixing roofing felt with galvanised clouts, securing tile clips, battening for slate or tile
• Plastering - fixing plasterboard with galvanised plasterboard nails (largely superseded by screws, but still used on ceilings where the speed advantage matters)
• Structural framing - all stud wall construction, nogging, joist trimming, sole plates, top plates
• Joist hangers and truss clips - 30x3.75mm galvanised square twist nails only

Common mistakes

Using the wrong nail type. Round wire where ring shank is specified. Bright where galvanised is needed. Smooth shank in joist hangers instead of square twist. Each substitution looks minor. Each one is a structural or durability problem.

Using screws in joist hangers. This gets its own entry because it's that serious. Screws are not rated for shear unless specifically tested and certified for that application. Standard wood screws in joist hangers can snap under load. Use 30x3.75mm galvanised square twist nails. Nothing else.

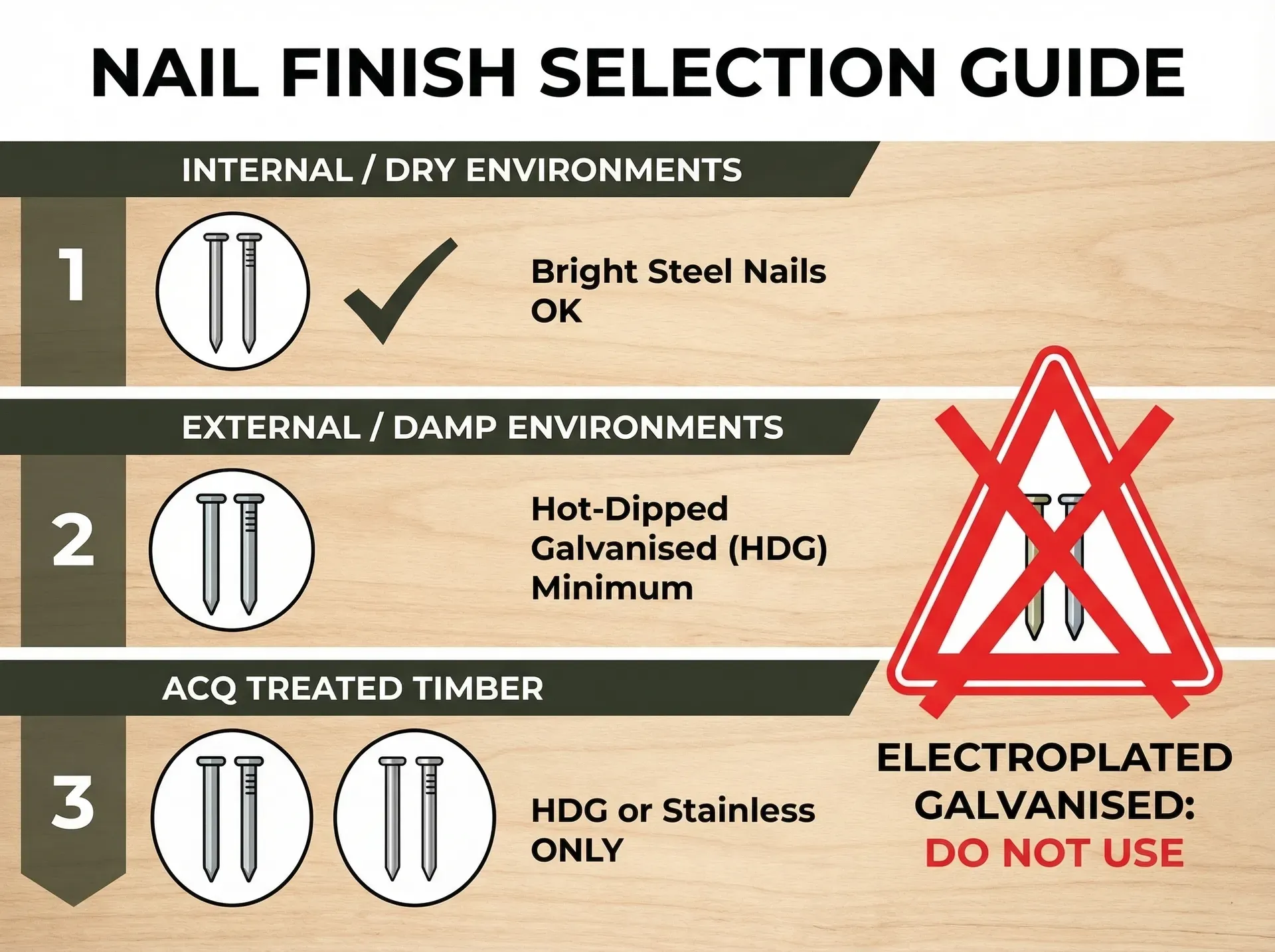

Electroplated galvanised nails with ACQ treated timber. This catches people out. Electroplated (also called "bright zinc plated") galvanised nails resist weather corrosion. They look galvanised. But the thin zinc layer does not resist the chemical corrosion from ACQ pressure-treated timber, which is the standard treatment in the UK since CCA was phased out. ACQ is significantly more corrosive to metals than old CCA treatment. Use hot-dipped galvanised nails (thicker, rougher zinc coating) or stainless steel with ACQ treated timber. The packaging usually states "hot-dipped" or "HDG" if it's the right type.

Click to enlarge

Masonry nail shatter hazard. Masonry nails are hardened steel. Hardened steel is brittle. Strike one wrong, or hit a particularly hard aggregate in a concrete block, and the nail can shatter. Fragments fly. Always wear safety glasses when driving masonry nails. Hold the nail with pliers, not your fingers, for the first few strikes. Better yet, use a drill and wall plug for most masonry fixings. Masonry nails are a quick fix, not a precision one.

Nails too short. A 40mm nail through 18mm board gives you 22mm of penetration into the timber behind. That's barely enough. The 2.5-3x rule exists for good reason. A 50mm nail through 18mm board gives you 32mm of grip. That's the difference between a fixing that holds and one that pulls out under load.

Splitting timber by nailing too close to the edge. Keep nails at least 25mm from the end of a board. Pre-drill in hardwoods. Blunt the nail point. Stagger nails so they don't all follow the same grain line, which creates a split along that line.

Hand-driving long nails (90mm+) without a nail gun. It can be done. It's slow, your accuracy drops after the first fifty, and you'll bend more than you drive. If you're doing any substantial quantity of structural framing, hire a first fix nailer. A day's hire costs less than the paracetamol for your wrist.
