Joist Hangers: The Fixings Building Control Will Actually Check

A building inspector walks onto your extension site, looks at the first-floor joists, and starts counting nail holes. Three empty holes on one hanger. Screws instead of nails on another. A third hanger that's been bent to fit a joist it wasn't sized for. That's a fail. The floor can't be boarded, the ceiling below can't be plastered, and your build stops until every hanger is stripped out and reinstalled correctly. This happens regularly on UK extension projects, and it's entirely avoidable.

Joist hangers are one of the few fixings where building control will physically inspect every single one. They'll count the nails. They'll check the nail type. They'll measure the hanger against the joist. Get this wrong and you lose days. Get it right and it's a five-minute sign-off.

What joist hangers are and why they matter

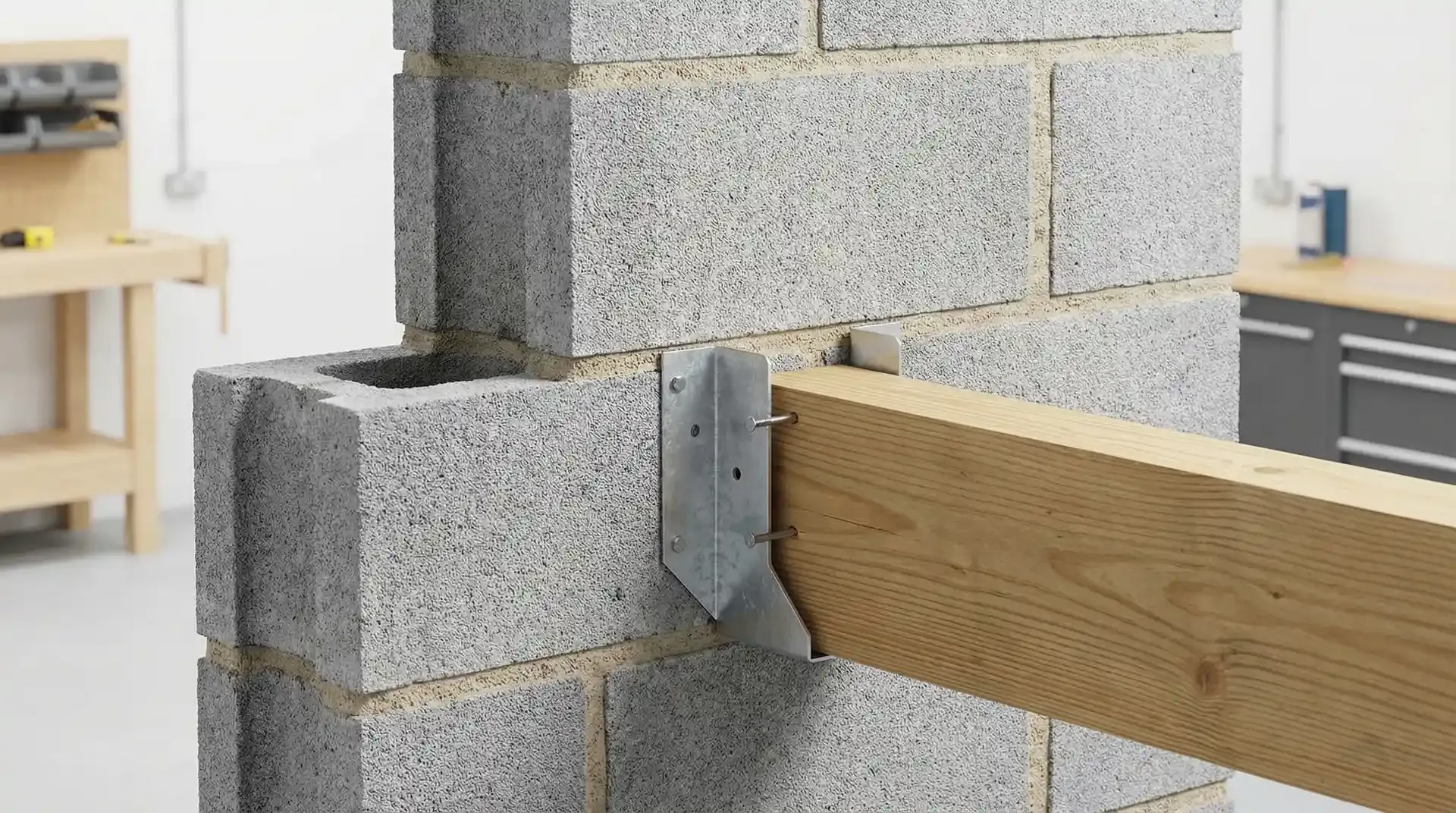

A joist hanger is a formed galvanised steel bracket that supports the end of a timber joist where it meets a masonry wall or a timber beam. The joist sits inside the hanger like a seat, with the hanger's flanges wrapping up both sides. Those flanges have pre-punched holes for nails, and those nails are what transfer the load from the joist into the wall or beam.

Click to enlarge

Without hangers, joist ends would need to be built directly into pockets cut into the wall. That's the traditional method and it works, but it's slower, more prone to damp problems at the joist end, and harder to get right. Joist hangers solved all three problems. They're now the standard method specified by NHBC, required by Approved Document A, and expected by every building inspector in the country.

The hangers themselves must comply with BS EN 845-1 (which superseded the older BS 6178). This isn't optional. Proprietary hangers from Simpson Strong-Tie, Expamet (BAT), and BPC Fixings all carry the necessary certification. Don't fabricate your own from flat steel plate. Building control won't accept them.

Types of joist hanger

Four main types cover almost every domestic situation. The type you need depends on whether the joist meets masonry or timber, whether the hanger needs to be concealed, and whether you're building new walls or retrofitting.

Masonry hangers

The workhorse. Used wherever a joist meets a blockwork wall, which on a typical extension means every joist at both ends. The top flange sits in a mortar bed between courses, and the back plate bears against the face of the block. NHBC requires 75mm minimum bearing on masonry.

A critical detail: the back plate must be in full contact with the blockwork face across its entire height. If mortar squeezes behind it and pushes the hanger away from the wall, that's a defect. The hanger must be tight to the wall and vertical.

You must wait for a minimum of three courses of solid blockwork (675mm of masonry) above the hanger's top flange, with the mortar fully cured, before loading the joists. This is not a suggestion. The CROSS safety report documents multiple floor collapses on UK construction sites where joists were loaded before this was achieved. In one 2007 incident, four bricklayers were injured. Building control treats this as a hold point.

Face-fix hangers

Used for timber-to-timber connections. Where a joist meets a trimmer around a stairwell opening, for example, or where ceiling joists connect to a ridge beam. The hanger nails directly to the face of the supporting timber. No masonry involved.

Light-duty versions (0.9mm steel, like the BPC A270) handle standard floor joists. Heavy-duty versions (1.5mm steel) suit trimmers and doubled-up beams carrying heavier loads. The nailing requirements are higher on face-fix hangers because the nails into the supporting timber are doing all the work. A typical heavy-duty face-fix hanger needs 20 or more nails: some into the joist, some into the supporting beam face, some into the top wrap.

Adjustable and speedy hangers

Simpson Strong-Tie's JHA and Expamet's Speedy hangers both feature adjustable leg straps that fold down to match different joist depths. The JHA has speed prongs that grip the supporting timber temporarily, holding the hanger in position while you nail it off. Both hands free. This matters when you're nailing overhead or in awkward positions.

These are the go-to for most timber-to-timber work on domestic projects. At TBC each, they're the cheapest option and fast to install.

Concealed hangers

Simpson Strong-Tie's TU and BTALU ranges hide entirely inside the timber, leaving clean visible connections for exposed beam work. A slot is routed or sawn into the incoming beam, the hanger slides in, and steel dowels lock it in place. The result looks like the beam is floating unsupported.

At TBC each, these are ten times the cost of a standard hanger. Use them only where the connection is visible and appearance matters. Oak frame extensions, exposed purlin roofs, barn conversions. Don't use them behind plasterboard where nobody will see them.

Sizing: width AND depth must match

Joist hangers are sized to match both the width and depth of your joist. Get either dimension wrong and building control will reject it.

Standard softwood joists in the UK are 47mm wide (regularised C16 or C24 timber). Older stock and some reclaimed timber runs 50mm. Measure your actual joist, not what you think it should be. Buying a 50mm hanger for 47mm joists leaves a 3mm gap, and the joist will rock inside the hanger. That's a fail.

Depth matters too. A hanger for 47x200mm joists won't work on 47x225mm joists. The joist will stick up above the hanger flanges, which means the nails can't engage properly and the hanger can't restrain the joist against twisting. NHBC requires that for solid timber joists, the hanger must be the full depth of the joist. For engineered I-joists, the hanger depth must be at least 0.6 times the joist depth.

Common masonry hanger sizes for domestic extensions:

• 47 x 100mm (internal partitions, light ceilings)
• 47 x 150mm (ground floors over crawl spaces)
• 47 x 200mm (standard first-floor joists)
• 47 x 225mm (longer span first-floor joists, flat roof joists)

The actual hanger height is typically 10mm less than the stated joist depth. This accommodates the fact that regularised timber runs slightly under its nominal dimension. A "47x200mm" hanger is designed for timber that's actually 195mm deep. This is standard across manufacturers.

Measure your joists. Then buy your hangers. Not the other way round.

How to install joist hangers (and what building control checks)

This is where most failures happen. Not because installation is difficult, but because builders cut corners. The single rule that matters more than everything else on this page:

The correct nail

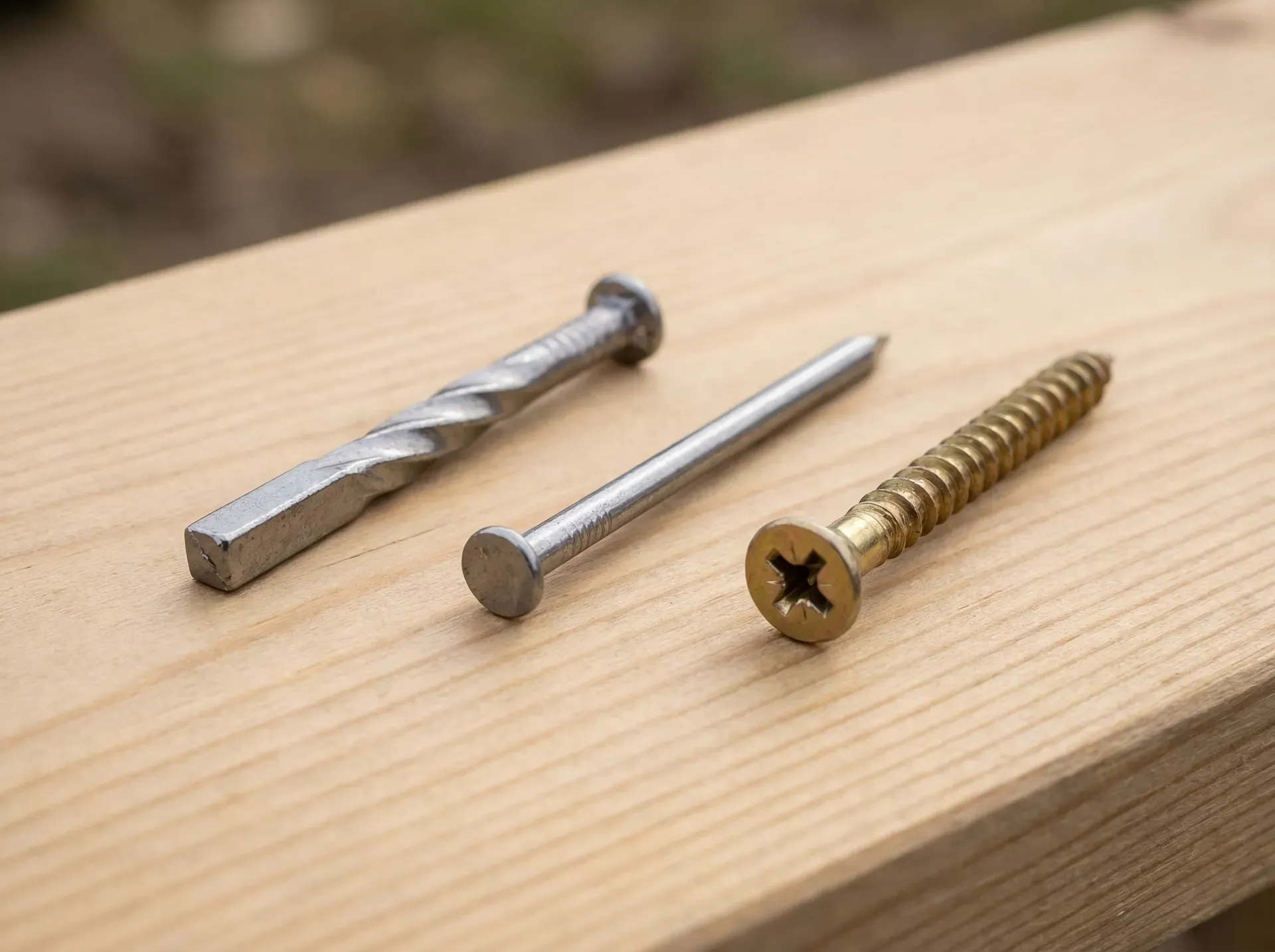

The specified fixing for joist hanger side flanges is a 30 x 3.75mm galvanised (or sheradised) square twist nail. Not a round wire nail. Not a clout nail. Not a screw.

Square twist nails have a square cross-section with a helical twist along the shank. This design gives them far superior grip and pull-out resistance compared to round nails. The sheradised or galvanised finish provides corrosion resistance. The 3.75mm diameter matches the pre-punched holes in the hanger flanges precisely.

Click to enlarge

Why not screws? Screws are brittle. They're hardened steel designed to resist pull-out, but joist hangers experience shear forces (sideways loading). A hardened screw under shear load snaps cleanly. A nail bends. Bending absorbs energy. Snapping doesn't. Building control officers across the UK will reject screws in joist hangers. Forum threads are full of builders who learned this the expensive way.

A 1kg pack of 30x3.75mm sheradised square twist nails costs around TBC from Screwfix. You'll need 2-3kg for a typical extension. Order them with your hangers. Builders regularly forget.

Installation sequence for masonry hangers

1. Check the hanger matches the joist

   Measure the joist width and depth. Confirm the hanger is the correct size. Place the joist inside the hanger on the ground to verify the fit before installing anything. The joist should sit snugly with no lateral rock and the top of the joist flush with or slightly below the top of the hanger flanges.

2. Set the hanger in position as the wall goes up

   The hanger's top flange beds into a mortar course. The back plate must be in full contact with the blockwork face for its entire height. The hanger must be vertical. Don't push it into a mortar joint at an angle or force it against uneven blockwork. If the block face isn't flat, bed the hanger on a full mortar course and press it firmly against the wall before the mortar sets.

3. Build a minimum of three courses above

   Three courses of solid blockwork (675mm of masonry) must be laid above the hanger's top flange. The mortar must be fully cured before any load goes on. Do not drop joists into the hangers before this is complete. Do not stack materials on the joists. Do not walk on them.

4. Cut joists to length and seat them

   Cut each joist square to length. LABC requires a maximum 6mm overall tolerance (3mm at each end). A sloppy cut that leaves a big gap between the joist end and the wall face reduces the bearing. Seat the joist fully into the hanger so it rests on the bottom plate.

5. Nail every hole

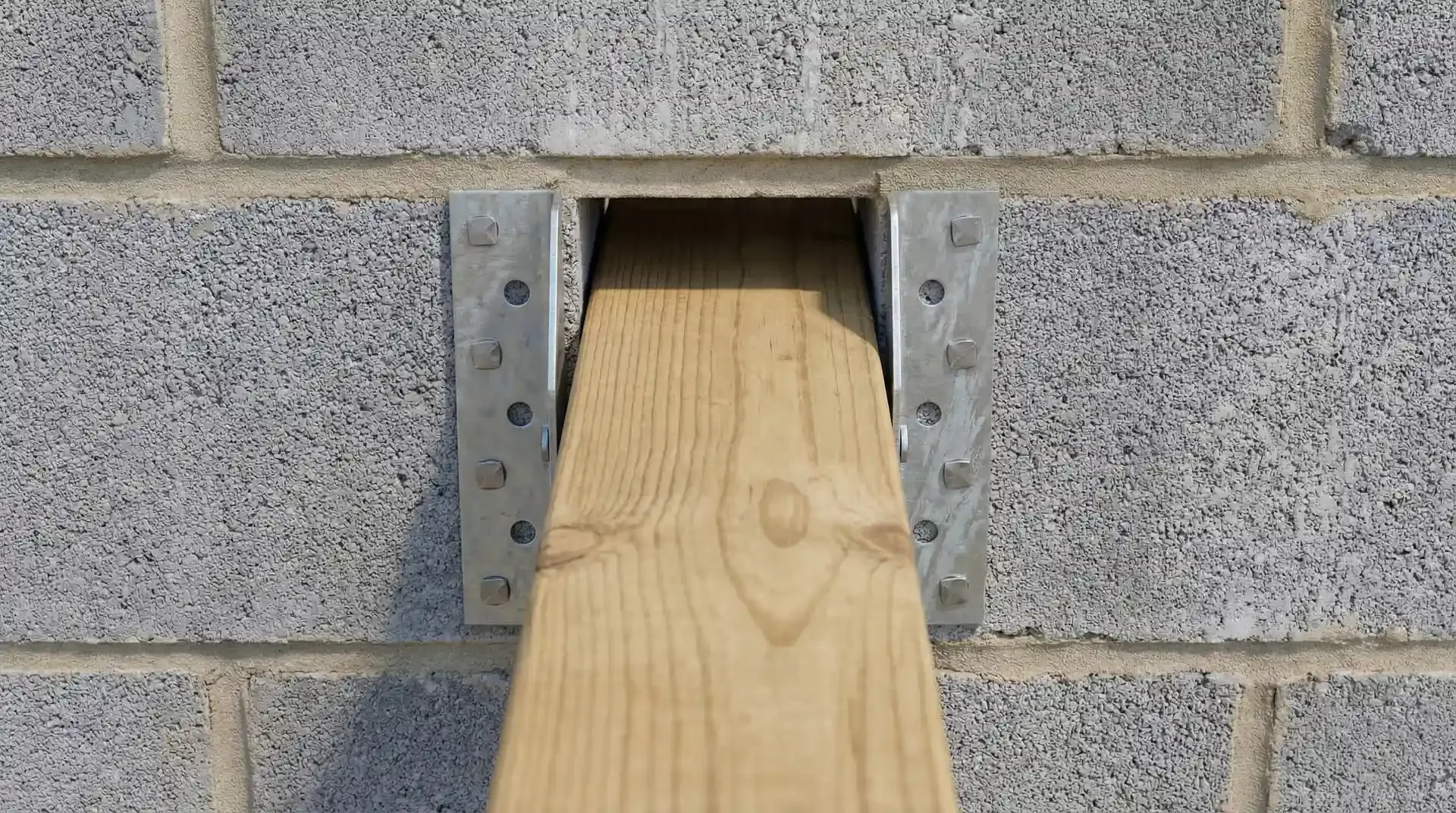

   Drive a 30x3.75mm sheradised square twist nail into every circular hole in both side flanges. Use a hammer. Position each nail squarely, not at an angle. Fill every hole. If a hanger has six holes per side, that's twelve nails per hanger. No exceptions.

Click to enlarge

For face-fix hangers, the same principle applies but the nail count is higher. A heavy-duty face-fix hanger can need 20+ nails: into the joist sides, into the face of the supporting beam, and into the top wrap. Check the manufacturer's data sheet for the exact nailing schedule. Simpson Strong-Tie prints the required nail type and quantity directly on every hanger.

What building control will check

Building inspectors look at joist hangers specifically. Here's their checklist:

• Hanger type matches the masonry strength (don't use hangers rated for 3.5 N/mm2 blocks on 2.8 N/mm2 aircrete)
• Hanger size matches the joist width and depth
• Back plate in full contact with blockwork
• Hanger is vertical and tight to the wall
• Minimum three courses of blockwork built above the top flange
• Every circular nail hole filled with the correct nail
• No screws used in place of nails
• Joists square-cut with no more than 6mm total gap
• No bent or distorted flanges
• Restraint-type hangers at maximum 2m centres where the wall exceeds 3m in length (per Approved Document A, Diagram 15c)

That last point catches people out. On longer walls, standard hangers only provide vertical support. Restraint-type hangers also tie the joist to the wall to prevent the wall from bowing outward. Building regs require these at 2m centres on walls over 3m. Your structural engineer will specify this, but check that the builder actually installs them.

How many you need

Simple calculation. Count your joists. Each joist needs a hanger at every end that meets a wall or beam. On a typical extension, that's one hanger per joist end.

A 4-metre-wide extension with joists at 400mm centres needs roughly 10 joists. Each joist meets a wall at both ends. That's 20 masonry hangers. Add two or three more for trimmer connections around stairwell openings or loft hatches (face-fix type). Budget 22-25 hangers for a standard single-storey extension.

For nails: each masonry hanger typically has 4-6 nail holes across both flanges. At 20 hangers, that's 80-120 nails. A 1kg pack of 30x3.75mm square twist nails contains roughly 200 nails. One pack covers most single-storey extensions. Buy two if you're doing first floor and ceiling joists.

Cost and where to buy

Joist hangers are commodity items stocked everywhere. Prices are remarkably consistent across retailers for the standard sizes.

Masonry hangers (the most common type):

• 47 x 150mm: TBC each (typically sold in 4-packs around TBC)
• 47 x 200mm: TBC each
• 47 x 225mm: TBC each

Timber-to-timber (face-fix and adjustable):

• Light-duty adjustable (Simpson JHA270 or Expamet Speedy): TBC each
• Standard face-fix: TBC each
• Heavy-duty multi-truss: around TBC each

Concealed beam hangers: TBC each. A different product category entirely.

Square twist nails (the essential consumable you'll forget to order):

• 1kg pack (approx 200 nails): TBC
• 2.5kg pack: around TBC

Buy from Screwfix, Toolstation, or your builders' merchant. For 20+ hangers, the 4-packs or 10-packs at Toolstation and Screwfix work out cheaper per unit than buying individually. Trade suppliers like Tradefix Direct and AJ Ferguson can be cheaper still on masonry hangers, with prices under £2 each in quantity.

The total cost for joist hangers on a typical extension is modest: 20 masonry hangers at £3 – £4 each plus two packs of nails comes to roughly £3 – £4. It's not where your money goes. But getting them wrong costs you days of delay and the price of stripping out and refitting.

Alternatives to joist hangers

Two alternatives exist. Neither is better for new-build extensions.

Building joists into the wall (traditional method). The joist end sits in a pocket formed in the blockwork. This was standard practice before hangers became widespread. It's slower because the bricklayer has to form each pocket individually, and the joist ends are more vulnerable to damp where they sit inside the wall. Some conservation projects and period property repairs still use this method. For a new extension, hangers are faster, more reliable, and what building control expects to see.

Coach bolts through a ledger plate. A horizontal timber (the ledger) is bolted to the wall, and joists rest on top of it or are notched over it. Used mainly for decking and pergola construction. Not suitable for structural floors inside a building. The bolt connections don't provide the same restraint as hangers, and the ledger creates a single point of failure.

Stick with hangers. They exist because they're the best solution.

Where you'll use joist hangers on your project

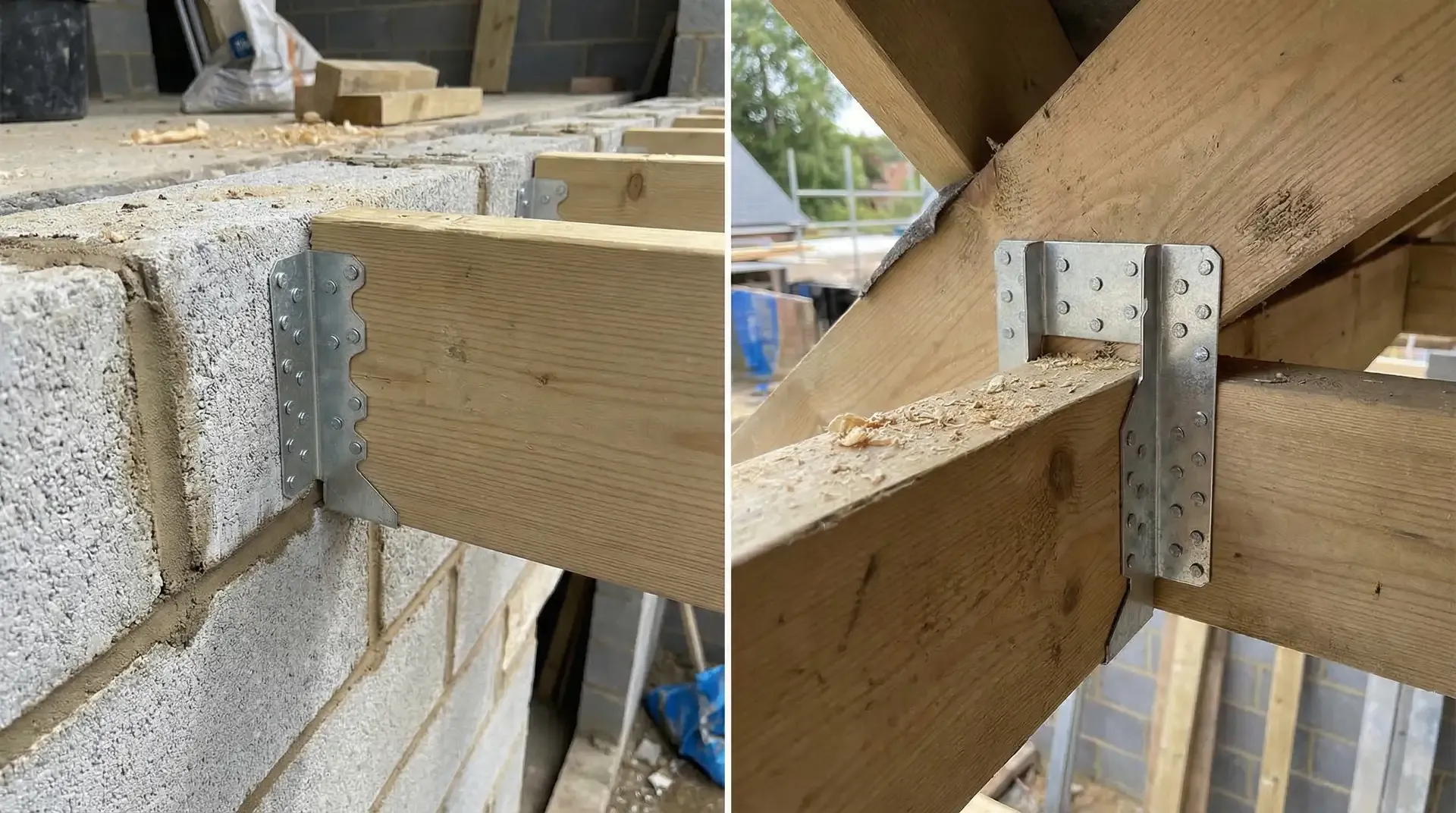

Joist hangers appear at two key stages of an extension build:

• Walls and blockwork - masonry hangers are built into the blockwork as the walls go up. This is when the bricklayer installs them. If they're missed during wall construction, you'll need retrofit hangers (shot-fired or resin-fixed), which are more expensive and harder to get right.
• Roof structure - ceiling joists and purlin connections often use face-fix or adjustable hangers. The carpenter installs these when building the roof.

Click to enlarge

Common mistakes (and how to spot them)

These are the failures building control catches most often, and the ones homeowners should check before the inspector arrives.

Missing nails. The number one problem. Builders leave holes empty because "it's strong enough" or because they ran out of the correct nails and didn't want to stop. It isn't strong enough. Every empty hole reduces the hanger's rated load capacity. Fill every hole.

Screws instead of nails. The second most common failure. Screws are convenient and builders carry them everywhere. But standard wood screws have hardened shanks that snap under shear loading. Square twist nails bend. Bending is what you want in a structural connection. Building control will reject screws unless the specific screw carries a manufacturer's ETA for use in that hanger (rare, and expensive).

Wrong size hanger. A 47x200mm hanger on 47x225mm joists. Or a 50mm-wide hanger on 47mm joists. Either way, the joist doesn't sit properly, the nails can't engage correctly, and the load path is compromised. Measure your joists before ordering hangers.

Bent flanges. When a hanger doesn't quite fit, some builders bend the flanges outward to force the joist in, or bend them inward to take up slack. Any deformation of the flanges changes the hanger's structural behaviour and voids its certification. If the hanger doesn't fit, you have the wrong hanger. Replace it.

Loading before the mortar cures. Masonry hangers need three courses of solid blockwork above the top flange, with the mortar fully set, before any load goes on the joist. Dropping joists in early, stacking timber on the floor, or walking across the joists before the mortar cures has caused documented floor collapses on UK sites.

Hanger not tight to the wall. Mortar squeezed behind the back plate, or the hanger installed against an uneven block face, creates a gap. That gap means the back plate can't transfer load properly. The hanger must be flush and vertical.

If you're managing your own build, check every hanger before the joists go in. Count the nails. Check the nail type. Verify the hanger size matches the joist. Look for bent flanges. It takes fifteen minutes and saves you the re-inspection.
