Drywall Screws: Sizes, Threads, and How Not to Wreck Plasterboard

A new extension is plastered, painted, and signed off. Eight months later, small circular bumps start appearing across the ceiling. Twenty of them, dotted in lines that follow the joists. The plaster cracks around each one and the head of a drywall screw pokes through. That's a screw pop, and the cause was decided before any plasterer touched the wall: the boarder over-drove the screws, the bugle heads broke through the paper face, and the screws lost their grip on the board months before the plaster started to fail.

Repairing screw pops costs £15–£25/m² of skim plus weeks of patching, sanding, and repainting. The fix for a screw pop is never the original screw itself. You add a new screw 20mm away and leave the broken one in place, because removing it destabilises the board further. The damage compounds.

Drywall screws are the most consequential fixing in the entire second-fix stage and one of the easiest to get wrong. There are four sizes, two thread types, two finishes that look almost identical, and a single technique error (over-driving) that can ruin every screw on a wall.

What drywall screws are and what they do

A drywall screw is a self-tapping fastener designed for one job: pulling a sheet of plasterboard tight to a timber or metal stud without tearing the paper face. They look superficially like wood screws but the geometry is different in three load-bearing ways: the head, the thread, and the finish.

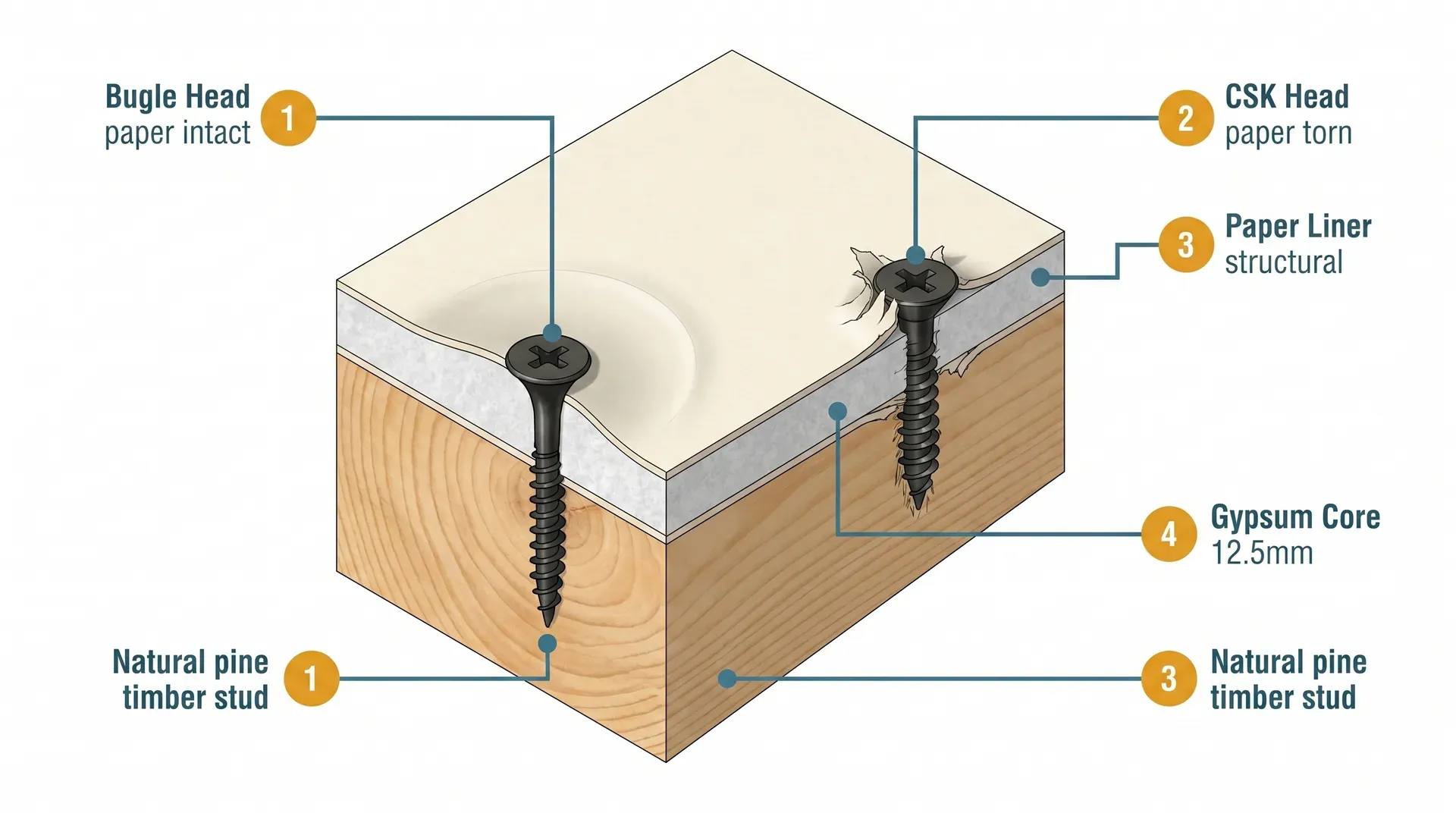

The head is shaped like the bell of a trumpet, which is where the name "bugle head" comes from. The underside curves outward in a smooth arc, widening into a broad rim. When the screw drives home, that curve pushes the paper liner of the plasterboard down into a shallow dimple rather than punching through it. A standard countersunk wood screw has a sharp 80° conical underside that concentrates load on a small ring around the shank. Drive a wood screw into plasterboard at the same torque and the cone tears the paper face on the way in. Once the paper is torn, the screw is holding nothing structural: the gypsum core is soft chalky filler, and the paper liners on each face are what actually stop the board flexing and falling.

Click to enlarge

The thread runs to a sharp point that bites into timber or thin gauge metal without a pilot hole. The shank is a straight 3.5mm or 3.9mm cylinder, narrower than a typical wood screw, because plasterboard cannot accommodate the shoulder of a tapered shank.

The finish is almost always black phosphate. The conversion coating leaves the screw a matte black colour and gives it modest corrosion resistance: enough to survive the slightly damp paper face of the board and the alkaline plaster skim that goes over it. Bright zinc-plated drywall screws also exist, especially on imported low-cost packs in B&Q, but they are a downgrade for standard interior work. Zinc plating bleeds rust under sustained dampness and the rust telegraphs through painted skim as orange spots, particularly under emulsion in steamy bathrooms and laundry rooms.

Types and specifications

There are three useful axes to think about: thread type, length, and finish.

Coarse thread vs fine thread

This is the choice that determines whether your screws actually grip.

Coarse thread drywall screws (sometimes labelled W-type, for "wood") have a 60° thread angle and a wide pitch: the spirals are widely spaced. They cut into timber fibres on the first rotation, pull the screw down quickly, and lock with the kind of grip a wood screw has. Use these for any plasterboard fixed to timber framing: stud walls, ceiling joists, timber noggins, sole plates and head plates.

Fine thread drywall screws (S-type, for "self-tapping into steel") have a 25° thread angle and a tight pitch: closely spaced spirals. The shallow angle and dense thread cuts through gauge metal cleanly without stripping. Use these for plasterboard fixed to metal C-stud partitions or Gypframe ceiling channels. Coarse-thread screws into metal will spin endlessly without engaging: the wide pitch can't grip the thin metal wall of a stud, and the screw burns its way through into a sloppy hole.

If you mix the two on site, the coarse-thread screws into metal will still drive (just badly) and the fine-thread screws into timber will drive normally but with about half the holding power because the fine pitch doesn't grip wood fibres. Order the right thread for the substrate and keep the boxes apart.

Length

The sizing rule is a formula, not a fixed table. Screw length = board thickness + at least 25mm into timber, or board thickness + at least 10mm into metal. That single rule covers every situation, including double-layer fire-rated assemblies and insulated boards.

Working through the standard cases:

• 9.5mm board into timber: 9.5 + 25 = 34.5mm minimum. Round up to the next stocked size: 38mm. Some guides recommend 32mm for 9.5mm board, which gives 22.5mm penetration. That's below the British Gypsum minimum but is widely sold and used. 38 mm is the safer default.
• 12.5mm board into timber: 12.5 + 25 = 37.5mm. Round up to 38mm. This is the workhorse size on every UK extension. Buy this in the largest box your boarder will use.
• 12.5mm board into metal stud: 12.5 + 10 = 22.5mm. Round up to 25mm. Use fine thread.
• 15mm board into timber: 15 + 25 = 40mm. Round up to 42mm.
• Double 12.5mm board (fire-rated assembly): 25 + 10 = 35mm into the stud needed, plus the second board layer it has to cross. 42 mm is correct for the British Gypsum tested 60-minute system.

The 32mm and 35mm screws sold as "general drywall screws" in 200-packs at Wickes are too short for 12.5mm board into timber. They give you 19.5mm or 22.5mm of penetration, below the 25mm minimum, and will pull out as the studs dry and shrink seasonally. Don't buy these for a kitchen extension wall.

Standards

UK drywall screws should be manufactured to BS EN 14566:2008+A1:2009 (Mechanical fasteners for gypsum plasterboard systems). This is the harmonised European standard adopted as a British Standard. It specifies the thread geometry, head profile, hardness, and corrosion resistance of nails, screws, and staples for plasterboard. Look for "EN 14566" on the box at the merchant. Some older guides refer to BS 1210, which is the wood screw standard and does not cover drywall screws.

Building control will not normally inspect individual screws, but the assembly tolerances in the British Gypsum and Knauf system specifications assume EN 14566 fasteners. Cheap import screws that don't carry the marking can pass visual inspection but fail under fire test, which matters in any 30-minute or 60-minute fire-rated wall (garage conversion ceilings, escape routes in two-storey homes, walls protecting habitable rooms above garages).

How to work with them

This is the section every guide skips. Driving a drywall screw correctly is a feel-based skill, and the difference between "fine" and "ruined the board" is about half a turn of the trigger.

The right tool, and the wrong one

A drywall screw gun is a dedicated power tool with an adjustable depth-stop nose cone over the bit. The cone protrudes ahead of the bit by a set distance. As the screw drives, the cone contacts the paper face of the board, the clutch releases automatically, and the bit stops turning the moment the head reaches the correct dimpled depth. You can drive 200 screws in a row without thinking about depth. A corded DeWalt DW274K runs £90 – £200 and pays for itself on a single boarding job.

A cordless combi drill with a properly set clutch is the realistic homeowner option. Set the clutch to mid-range (around 8-10 on most 18V combis), test on an offcut, and adjust until the screw stops with the head sitting in a shallow dimple just below the paper surface. The slight change in feel and sound just before the bugle would crush through the paper is the sweet spot. A magnetic combi drill bit holder with a depth-stop sleeve helps, and the cost is trivial at any builders merchant.

The hammer setting on a combi drill is also wrong for the same reason: the percussive action transmits to the board even without the bit moving forward. Switch the collar to drill mode (the icon is a single drill bit, not a hammer).

Bit choice: PH2 or PZ2?

UK-manufactured drywall screws are almost universally Phillips PH2 drive. Trade brands like Easydrive (Screwfix), FandF (Toolstation), and Forgefix all use Phillips. Imported screws from European brands sometimes use Pozidriv PZ2: visually similar but with four extra small lines forming a star around the cross. Using a PH2 bit on a PZ2 screw, or vice versa, only contacts four of the eight drive surfaces. The bit cams out (slips with a graunching sound), strips the head, and you end up with a screw stuck halfway in that you can't drive or remove.

Check the box. If it says "Phillips" or "PH" use a PH2 bit. If it says "Pozi" or "PZ" use a PZ2 bit. Buy a fresh bit at the start of any boarding job: worn bits cam out far more than fresh ones. A pack of three Bosch ImpactControl PH2 bits is the cost of a sandwich at Screwfix.

The dimple

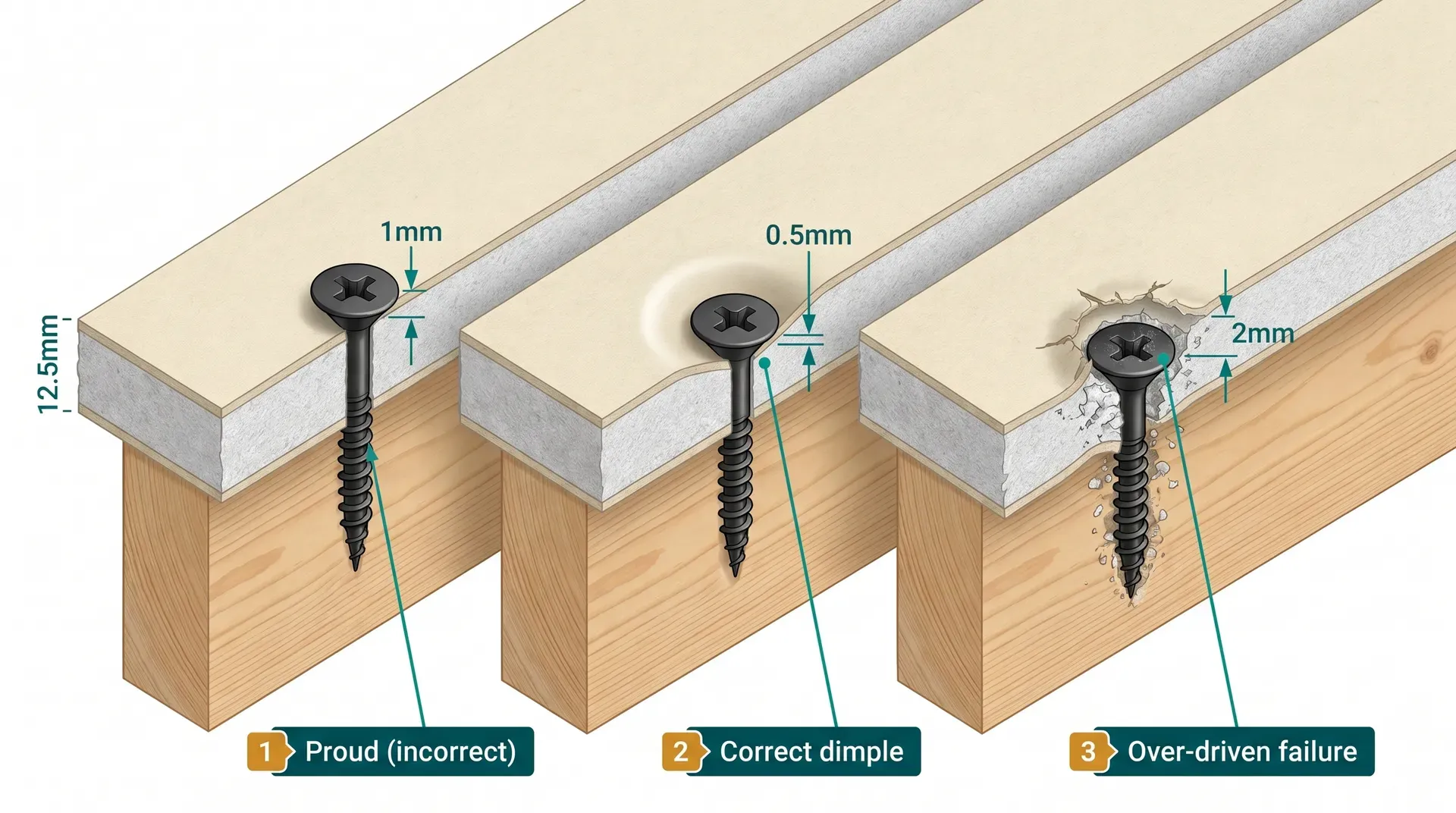

A correctly driven drywall screw sits about 0.5mm below the paper face of the board, in a shallow circular dimple no deeper than the diameter of the screw head. The paper is intact, slightly compressed, and the head is recessed enough to be covered by 1-2mm of jointing compound or skim plaster. Run a flat hand across the boarded wall after fixing: a correctly driven screw is invisible to the touch. A proud screw catches your fingernail. An over-driven screw drops your finger into a hole.

Click to enlarge

The single most-repeated piece of advice on the Plasterers Forum, the Screwfix Community, and BuildHub on this topic is the same: once a screw has torn the paper, do not back it out. Removing it crumbles more of the gypsum core and leaves a hole that's now structurally worse than the torn-paper hole. Drive a fresh screw 20mm to either side instead, and leave the bad screw in place to avoid further damage.

Spacing

The British Gypsum and NHBC fixing specification is the same across every standard plasterboard system. Memorise these four numbers:

• 300 mm centres along each stud on walls, in the main field of the board.
• 230 mm centres along each joist on ceilings, in the main field.
• 200mm centres at external angles on walls (where two walls meet at a corner, the fixings tighten up).
• 150 mm centres at board ends on ceilings.

Edge distances: 13 mm minimum from any cut or factory edge, 10 mm minimum from any corner. Closer than these and the screw blows the gypsum out of the edge of the board, leaving the screw with no grip and the board edge unsupported.

A standard 2400 x 1200mm board on a wall, with studs at 600mm centres, takes roughly 28 to 36 screws. A ceiling board takes 36 to 44. Spread them too far apart and the board bounces against the framing as the plasterer skims, cracking the skim along the joints within weeks of completion.

A practical sequence for a wall

The technique that pros use, in order:

1. Lift the board into position, supported on a foot lifter or a second person. Leave a 10 mm gap above the floor (the skirting will hide it; the gap stops capillary moisture wicking up from the slab).
2. Drive the first screw at the centre of the board into the centre stud. This pins the board in place.
3. Drive a screw at the top corner of the board on the same stud, then the bottom corner on the same stud. The board now has three points of fixing.
4. Move outward to the adjacent studs and repeat. Always work outward from the centre, never inward from an edge. Working inward squeezes the board and can buckle the paper face.
5. Maintain 300mm centres along each stud. A pencil mark every 300mm on each stud before lifting the board makes this faster.
6. Sweep your hand across the finished board afterwards. Any proud screw catches; drive it in. Any over-driven screw will be obvious as a divot; mark it for an additional fixing 20mm away.

Cost and where to buy

Drywall screws are sold loose in 1000-piece boxes (the trade default), 500-piece boxes (DIY format), and as plastic-collated strips for auto-feed screw guns. The 1000-piece loose box is by far the best value per screw.

Pricing varies more by retailer than by brand. Toolstation FandF and Screwfix Easydrive are the cheapest at the consumer end, both around £9 – £14 for a 1000-pack of 38mm coarse thread. Selco is cheaper still at trade prices, but you need a trade card and the pack quantities are stocked ex-VAT. Wickes and B&Q price slightly higher and stock smaller pack sizes. Bradfords, Jewson, and other builders' merchants are competitive on bulk.

A standard kitchen extension takes one box of 38mm and one box of 25mm: the combined cost of £9 – £14 and £8 – £11 covers the entire boarding stage. Don't try to economise here: buying enough screws is one of the cheapest insurance policies on the build.

Brand notes

• TIMco C2 screws (38mm coarse thread, 1000 pack, often discounted at Bradfords) are the trade-favourite mid-range. Tested to JIS B1125 with surface hardness up to 750 HV. Drive cleanly on a worn bit.
• Easydrive (Screwfix) and FandF (Toolstation) own-brand are perfectly fine for domestic boarding. Twin-thread variants drive faster.
• Forgefix collated strips fit the Senco DS series of auto-feed guns and most other UK-spec screw guns.
• GTEC (sold by Selco) is British Gypsum's system brand and is the right choice if you're working under a Knauf or British Gypsum guarantee.

Avoid unbranded "drywall screws" sold in clamshell packs at supermarket DIY aisles. The hardness can be inconsistent and they snap under torque, leaving broken tips embedded in studs.

Alternatives (and when they aren't)

There are no good substitutes for the specific job of fixing plasterboard. Drywall screws exist because every other fastener fails at this task in some specific way.

Wood screws (yellow zinc screws) tear the paper face on tightening because the CSK head concentrates load and the deeper thread pulls too aggressively. They are also too long in standard lengths (32mm wood screws aren't really sold) and the heads sit higher above the surface. Reserve them for fixing battens to walls, never for boarding.

Plasterboard nails still exist and are still allowed under NHBC for some assemblies. They have ringed shanks to resist withdrawal and a flat broad head. They are noisy to fit (every nail is hammer blows close to a fragile paper surface), they walk out as timber dries, and they are slower than screws. Modern boarding uses screws exclusively. Keep nails for repair work or where mains power isn't available.

Drywall anchors / cavity fixings (the spring-toggle type) are for the next stage: hanging shelves, TVs, mirrors, and curtain rails on already-finished plasterboard. They are not for fixing the board itself.

Drywall screws are themselves not a substitute for wood screws. This catches people out. The hardened black phosphate steel of a drywall screw is brittle in shear: drive one through a piece of timber to fix a heavy bracket and the screw will snap clean in half under the first sideways load. Every drywall screw thrown into general timber work is a structural failure waiting to happen. Use the right screw for the job.

Where you'll need this

Drywall screws appear at the boarding stage of any project that includes new partition walls, ceilings, or insulated dry-lining. On a kitchen extension that's typically 80 to 200 boards, fixed across:

• Walls and blockwork - dry-lining over masonry where dot-and-dab isn't used, and any internal stud walls that divide the new space.
• First fix electrics - boards go up after first fix is signed off; the boarder relies on the electrician's chalk lines for socket and switch positions and your screws need to avoid the buried cables.
• Insulation - boarding over insulated stud walls and warm-roof rafters. Insulated plasterboards (PIR-backed) need longer screws (60-100mm) to cross the insulation layer.

The same screws turn up across loft conversions, garage conversions, and any internal partition or ceiling work in older houses. They are not project-specific: any extension or renovation that creates new wall area uses them.

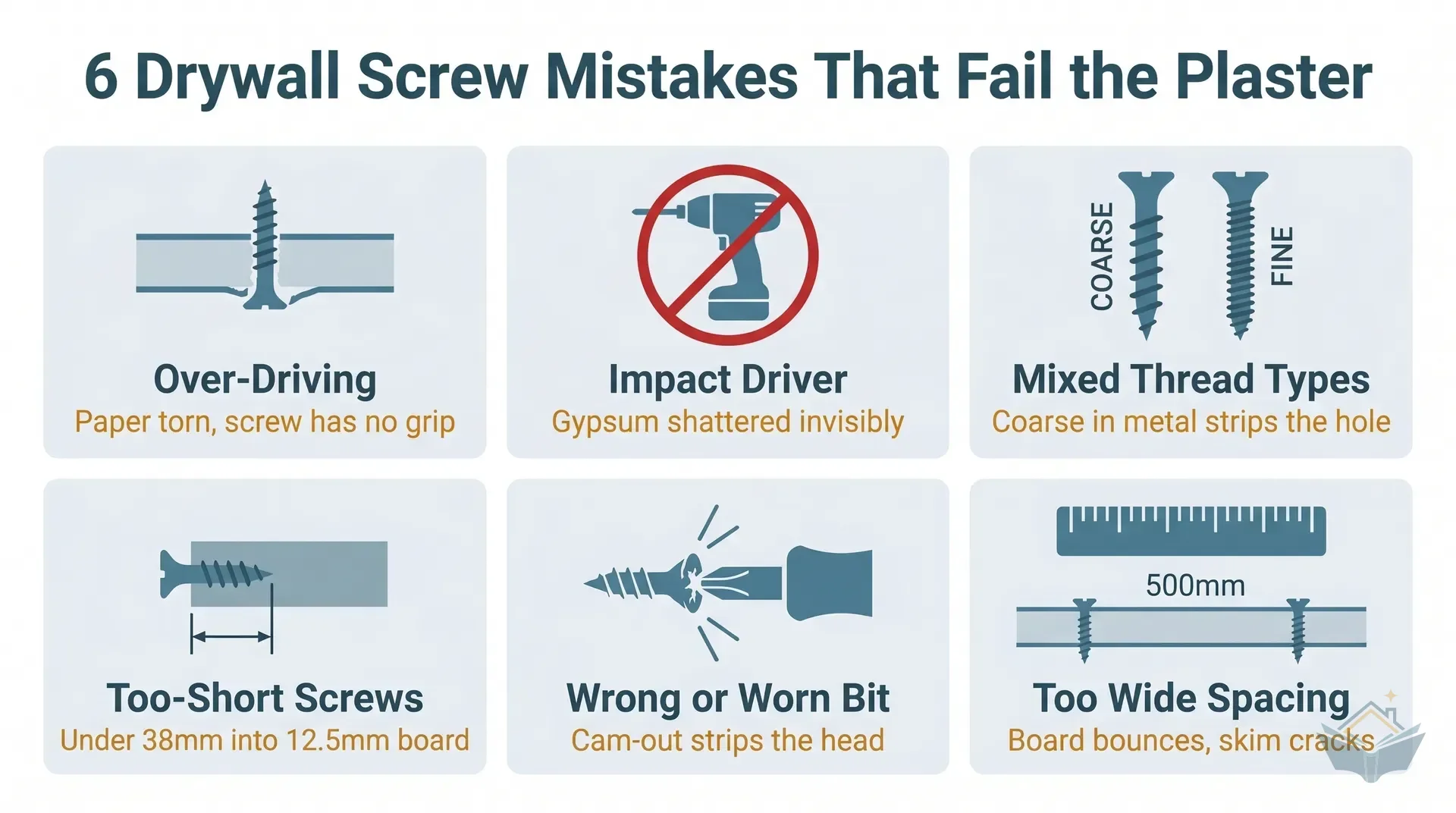

Common mistakes

Over-driving the screw. The single most reported failure on UK plastering forums. Once the bugle head breaks through the paper liner, the screw has lost its grip on the board: the gypsum core alone can't hold the head. Plaster applied over a torn-paper screw will blow within months. The fix is never the original screw; drive a new one nearby and leave the bad one in place.

Using an impact driver. The hammer mechanism damages the gypsum core invisibly. The board fails six months later, after the build is signed off and snagging is complete. Use a combi drill on its driver setting, with the clutch set to release at the correct depth, or buy a dedicated screw gun.

Mixing thread types. Coarse-thread screws into metal C-stud strip the metal. Fine-thread screws into timber give roughly half the holding power. Order coarse for timber framing, fine for metal C-stud, and keep the boxes apart on site. The screws look almost identical: check the thread pitch before you load the magazine.

Using bright zinc-plated drywall screws on green moisture-resistant board. Zinc rusts under sustained dampness and the rust telegraphs through paint and skim as orange spots. For genuinely wet rooms (showers, direct tile-on-board areas), use stainless or hot-dip galvanised. For standard internal work including kitchens, black phosphate is correct.

Spacing screws too widely. The British Gypsum spec is 300mm field on walls, 230mm on ceilings, 150mm at ceiling board ends. Beginners often run screws at 400mm or 500mm centres, which leaves the board bouncing on the framing. The plasterer's first skim coat then cracks along the joints within weeks. Pencil-mark every stud at 300mm centres before lifting the board into position.

Buying too short. 32mm or 35mm screws into 12.5mm board onto timber give 19.5-22.5mm of penetration: below the British Gypsum 25mm minimum. The screws pull out as the studs dry seasonally and produce screw pops months after completion. Always 38mm minimum into timber for 12.5mm board.

Reusing the bit until it cams out. Worn PH2 bits slip in the screw drive and chew the head into a soft circle that no bit will then engage. Start each boarding job with a fresh bit and replace it the moment cam-out becomes frequent. A bit costs pennies; a stripped screw costs you 30 seconds to add another and an extra fixing position you didn't want.
