Coach Bolts: The Right Fixing for Structural Timber Connections
Coach bolts (carriage bolts). Why mild steel beats high tensile, correct hole sizing, washer selection, and what to pay per bolt in zinc plated and stainless.
By Ian
Project managed a £182k Oxfordshire kitchen extension
A bolted timber joint can loosen if its bearing surfaces crush into the wood. Specify the bolt, washers or bearing plates, spacing and tightening detail as a complete connection; do not assume the nut or cup head alone spreads the load adequately.
Coach bolts are one of the simplest fixings in construction, and one of the most commonly mis-installed. The bolt itself does its job. The problems are always around it: wrong hole size, missing washer, wrong material for outdoor use, over-tightening that crushes the timber. Get those details right and a coach bolt connection will outlast the building it's in.

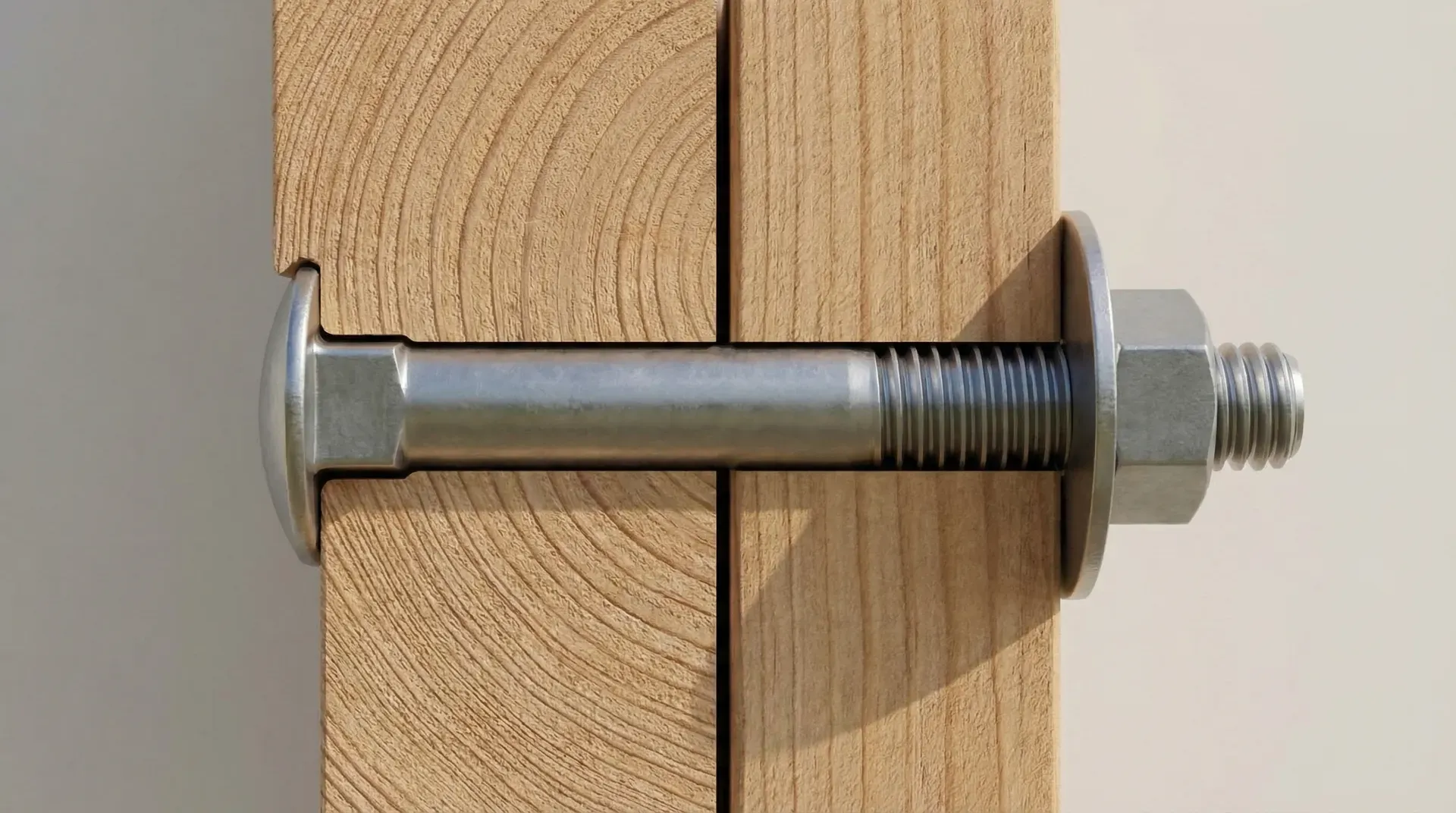

What a coach bolt is and how it works
A coach bolt (also called a carriage bolt or cup head bolt) is a through-bolt designed for timber connections. It passes all the way through two pieces of timber (or timber and steel), and is secured on the far side with a nut and washer. You can't tighten the head side. That's the point.
The bolt has four distinct features. A smooth, domed head that sits flush against the timber surface. Below the head, a short square shank (the "neck") that bites into the timber when you tap it in, locking the bolt so it can't spin. Below that, a cylindrical shaft. And the threaded section at the end, where the nut goes.
The square shank is the clever bit. When you drill a hole the same diameter as the bolt shaft and tap the bolt through, the square corners of the neck dig into the timber. This stops the bolt from rotating. You tighten (or loosen) entirely from the nut side with a spanner or socket. No need for two people, no need to hold the head. On the head side, the smooth dome means there's nothing to grip, nothing to snag, and nothing that protrudes.
This one-sided tightening is why coach bolts exist. In a floor where you're bolting a trimmer beam to a trimmed joist, you often can't reach the head side once the bolt is in. You don't need to. Tap it in, fit the washer and nut from the accessible side, tighten up.

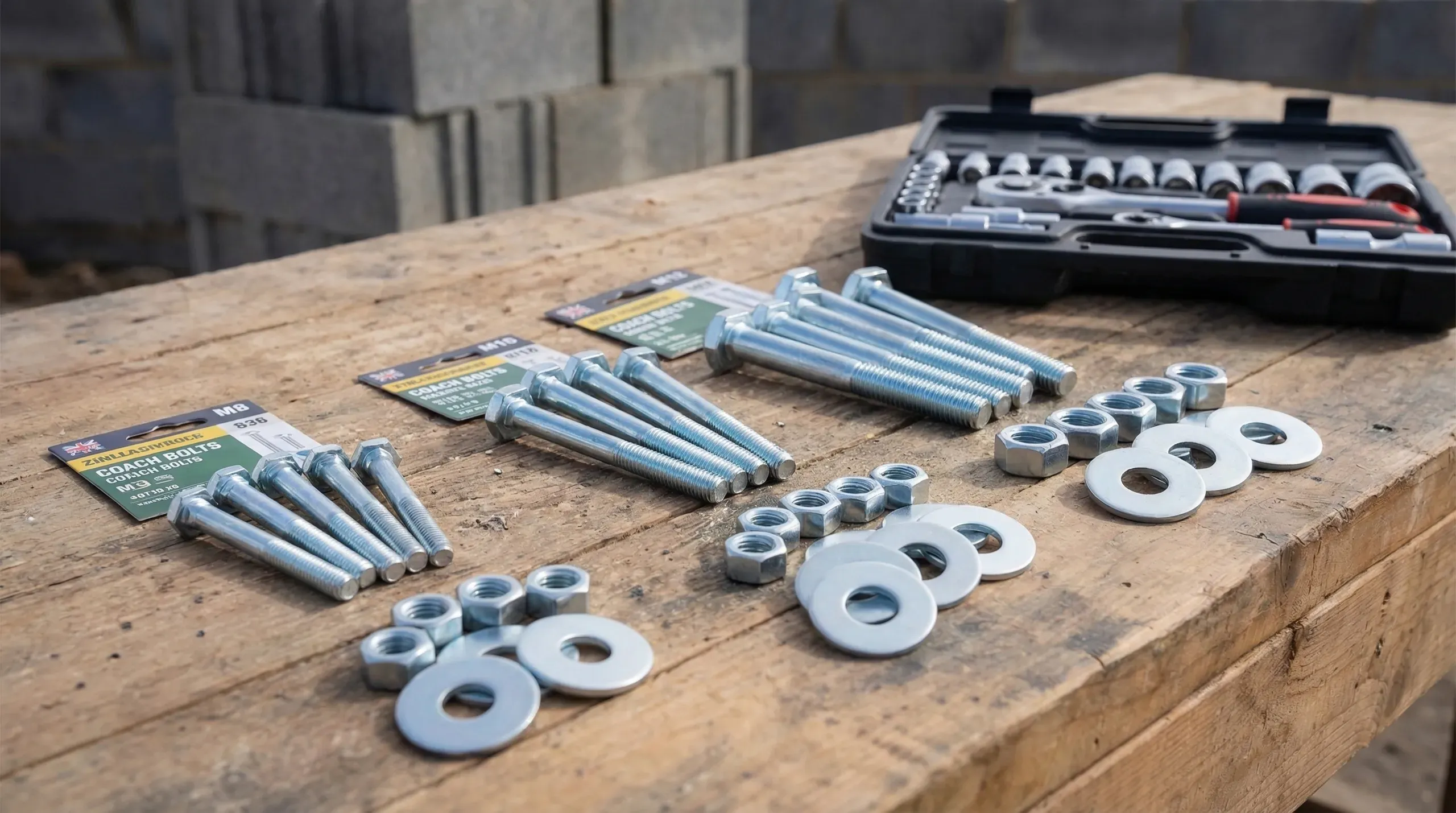

Types, sizes, and why mild steel is right
Coach bolts are manufactured to DIN 603 (the European dimensional standard). The sizes that matter for domestic construction are M8, M10, and M12. "M" is the metric designation for the shaft diameter in millimetres.
| Size | Shaft diameter | Head diameter | Typical use | Drill bit needed |
|---|---|---|---|---|
| M8 | 8mm | 20mm | Light structural connections, fence brackets, gate hardware | 8mm |
| M10 | 10mm | 24mm | The standard choice for most timber-to-timber structural work | 10mm |
| M12 | 12mm | 30mm | Heavy beams, posts, triple-ply trimmers, high-load connections | 12mm |
Lengths range from 50mm to 300mm. The length you need is the total thickness of the timbers being joined, plus about 25-30mm for the washer and nut to engage fully. Two 47mm timbers need a bolt at least 120mm long. Two 72mm timbers need 170mm or more.
Choose bolt diameter and spacing from the connection design. M8, M10 and M12 are common stocked sizes; the engineer selects the diameter for the connection.
Why mild steel, not high tensile
Here's something that catches people out. Coach bolts are Grade 4.6 mild steel. That's deliberate. They're softer than the grade 8.8 high-tensile bolts you'd use in steelwork, and in timber that costs you very little.
In a bolted timber joint, the timber around the hole crushes long before the steel of the bolt gives way. The steel shank of an M12 bolt is several times stronger in shear than the softwood it bears on.
So "stronger" bolts add cost without adding much strength in timber work. Grade 4.6 is what you want unless your engineer specifies otherwise. The strength of the connection is governed mainly by how much load the timber can bear around the bolt, not the bolt's tensile strength.
Finishes
Four options, and the choice is straightforward.
Bright zinc plated (BZP) is the standard. Silver appearance, adequate corrosion resistance for interior use and sheltered exterior applications. This is what you'll find in every Screwfix and Toolstation pack.
Hot-dip galvanised provides heavier corrosion protection for fully exposed outdoor use. The coating is thicker and rougher than BZP. Use these for anything in contact with preservative-treated timber, which accelerates corrosion on lighter coatings.
A2 stainless steel (304 grade) resists rust far better than any coating. The right choice for permanently damp environments, or where you simply never want to think about corrosion. Costs 3-5 times more than zinc plated.
A4 stainless steel (316 grade) is marine-grade: the grade to use near the coast, where salt spray can stain and pit A2.
For a standard domestic extension, BZP is fine for internal structural connections. Galvanised for anything external. A4 stainless if you're near the coast.

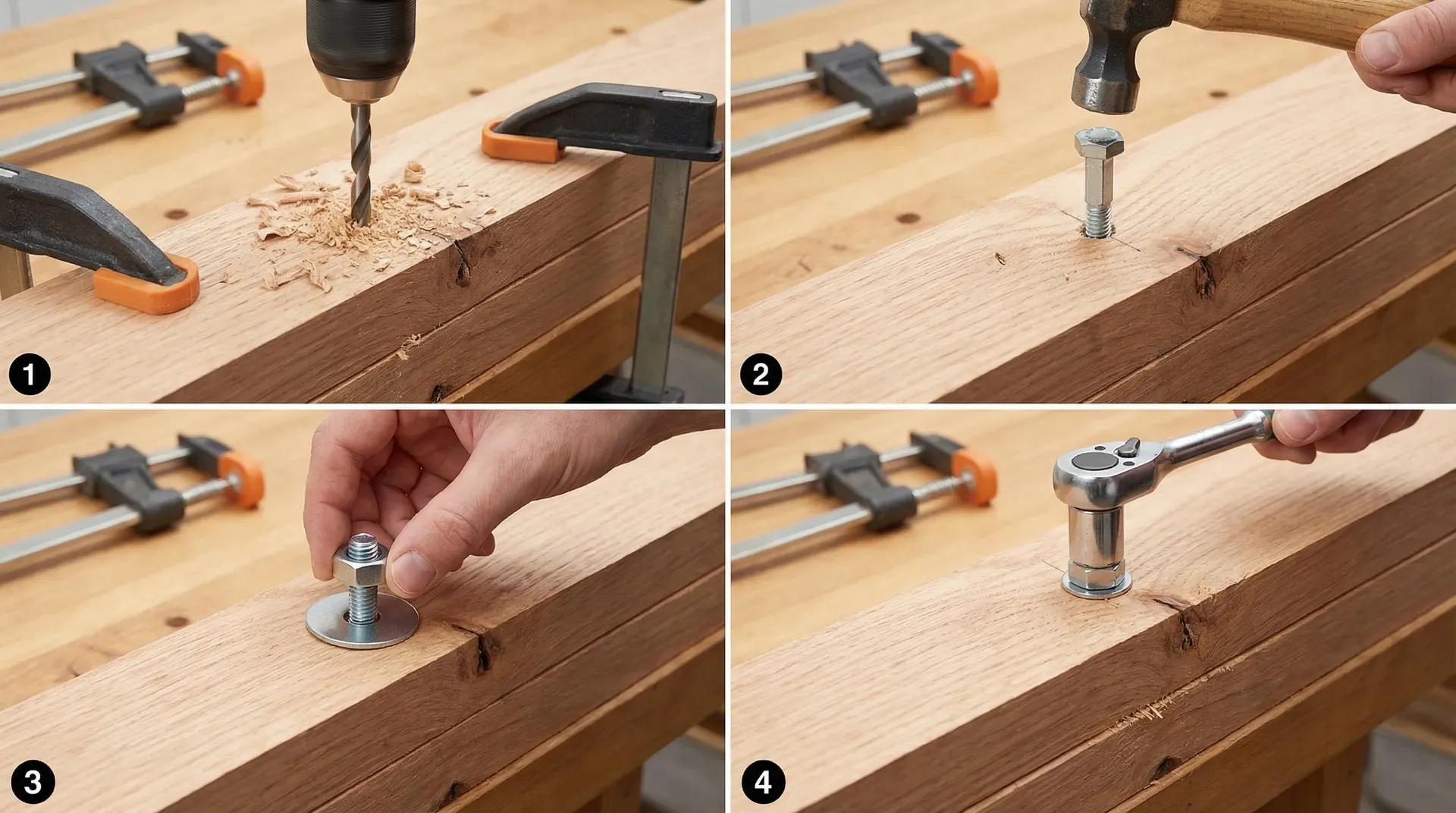

How to install a coach bolt properly
This is a four-step process. Do it right and the connection is solid. Skip a step and you'll be back in six months.
Drill the clearance hole
Use the clearance-hole diameter specified in the connection detail. Eurocode 5 permits a timber bolt hole up to 1mm larger than the bolt diameter; the selected fastener and head detail may impose additional requirements. Clamp the timbers together for alignment and drill cleanly.
Tap the bolt through
Fit the bolt through the prepared hole without forcing an undersized hole or splitting the timber. Arrange the required head-side washer or bearing plate as shown in the design. A cup head and square neck need a compatible engineered detail; do not relocate a structural bolt or add a connector plate without checking spacing and capacity.
Fit the washer and nut
Fit the specified washers or bearing plates on both bearing faces, then engage the nut fully by hand. Confirm washer dimensions and thickness rather than relying on a packet labelled penny washers.
Tighten with a socket or spanner
Use a ratchet with the correct socket (13mm for M8, 17mm for M10, 19mm for M12) or a ring spanner. Tighten until the washer beds firmly against the timber and the joint is pulled snug. Stop there. Do not keep going until the washer starts to embed into the wood. Over-tightening crushes the timber fibres beneath the washer, weakens the connection, and can cause splitting.
Washer selection matters more than you think
The washer's job is to spread the clamping force across a wider area of timber. Without a washer, the nut sits on a contact area the size of the nut's face, roughly 17mm across for an M10. Under load, that small area crushes straight into softwood. The nut sinks, the connection loosens, and the joint fails.
A larger washer spreads the force, but diameter and thickness must both meet the connection design. For an M10 Eurocode 5 detail, a 25mm washer does not meet the 30mm minimum diameter given below.
The engineering guidance from Eurocode 5 is specific: washers at least 3 times the bolt diameter across and at least 0.3 times the diameter thick. For an M10 bolt, that's a 30mm washer at 3mm thick. For M12, it's 36mm at 3.6mm thick.
Check washers against the design before buying. Ordinary thin repair washers may be large in diameter but too thin for the structural detail.
Warning
Some coach bolt packs include a nut but no washer, or include a small form A washer instead of a penny washer. Check the pack contents before you buy. A bag of M10 penny washers costs about £2 for 20. Skipping them to save £2 is how beam brackets end up loose.
Bolt spacing rules
If you're fitting multiple bolts in a row (common on beam-to-beam connections), keep bolts at ≥ 5× bolt diameter (50 mm for M10, 60 mm for M12). Closer than that and the timber between the bolt holes becomes a weak point that can split under load.
Keep bolts at least 3 times the bolt diameter from an unloaded edge of the timber (30mm for M10, 36mm for M12), at least 4 times the diameter (40mm for M10, 48mm for M12) from an edge the load pushes the bolt towards across the grain, and at least 7 times the diameter, or 80mm if that is more, from an end the load pushes the bolt towards. Closer and you risk splitting the timber outward from the bolt hole.
How many do you need
The number of bolts per connection depends on the load and the timber size, but for domestic structural work, these rules of thumb cover most situations.
A simple timber-to-timber lap joint (two timbers side by side): two M10 bolts minimum, staggered vertically.
A beam bracket or post connection: follow the bracket manufacturer's specification. Most beam bracket fixings specify two or four bolts per connection.
For a built-up trimmer, use the engineer's bolt or screw schedule: the structural engineer's bolt schedule. The number, diameter, row spacing and edge distances depend on the load transfer and timber geometry; do not calculate an order from a universal centres rule.
If an engineer has specified the connection, use exactly what's on the drawing. Don't add more and don't use fewer.
What coach bolts cost
Zinc plated coach bolts are cheap. Stainless steel is not. Prices below are per bolt at typical retail pack sizes, as of autumn 2026.
| Size | Length | Zinc plated (per bolt) | A2 stainless (per bolt) |
|---|---|---|---|
| M8 | 100mm | £0.18 – £0.49 | £0.83 – £1.74 |
| M10 | 100mm | £0.32 – £0.95 | £1.12 – £3.48 |
| M10 | 150mm | £0.45 – £0.95 | £1.80 – £3.48 |
| M12 | 100mm | £0.70 – £0.95 | - |
| M12 | 150mm | £0.76 – £1.49 | - |
| M12 | 200mm | £1.00 – £1.49 | - |
An M8 x 100mm in zinc plated runs £0.18 – £0.49 per bolt. Move up to M12 x 200mm and you're looking at about £1.00 – £1.49 each. Stainless A2 costs several times more: an M8 x 100mm in stainless is around £0.83 – £1.74, and M10 x 130mm reaches £1.62 – £2.40.
Buying by the pack brings the per-bolt cost well below the price of a loose bolt. Screwfix sells M8 x 100mm zinc plated in packs of 100 for £17.89, which works out to about 18p each. Toolstation sells the same size in 10-packs for £1.79, which comes to the same price per bolt, so there is no saving in buying 100 unless you need that many.
Don't forget to budget for nuts and washers separately. Not every coach bolt pack includes them. A bag of M10 hex nuts costs a couple of pounds. A bag of M10 penny washers is similar. Small money, but you need them.
External resource
Screwfix Coach Bolts
Easyfix zinc plated coach bolts in M8, M10, and M12. Larger pack sizes than Toolstation, lower per-bolt cost.
screwfix.com
External resource
Toolstation Coach Bolts
FandF and Forgefix coach bolts in small packs. Also stocks A2 stainless steel options from the Apex range.
toolstation.com
Where to buy Coach Bolts
Check current prices from UK suppliers.
These are affiliate links: if you buy through them we may earn a small commission, at no extra cost to you. Learn more.

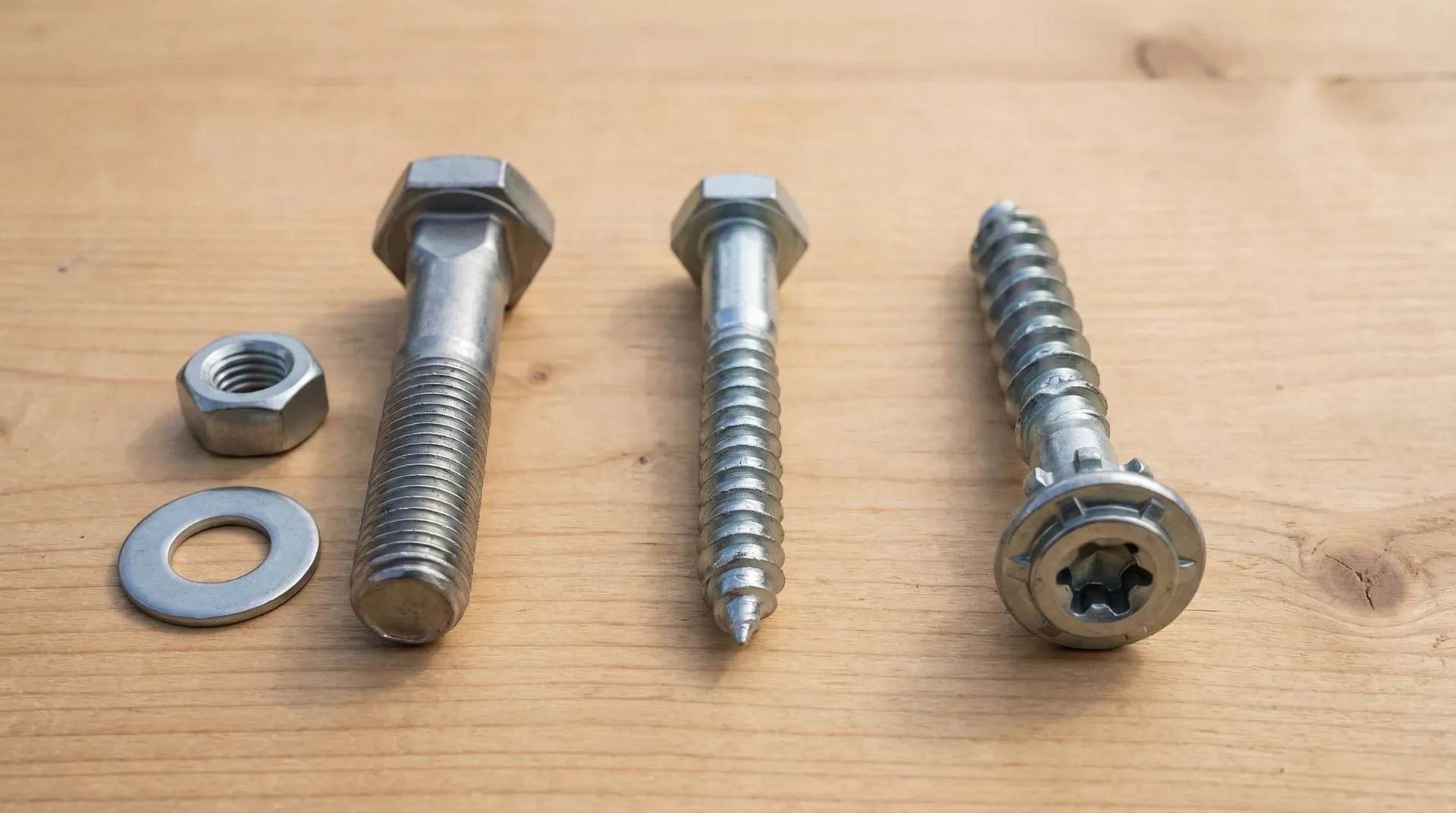

Alternatives to coach bolts
Coach bolts aren't the only option for timber connections. Two alternatives cover different situations.
Wood screws and coach screws
For connections that don't need to be adjustable or retightened, coach screws (DIN 571) are faster to install. A coach screw has a hex head and a wood-thread tip. You drive it with a socket or spanner, and it pulls itself into the timber without needing a nut on the other side. No through-hole needed, no access to the back face required.
The trade-off: you can't retighten a screw connection as timber dries and shrinks. Once it's in, it's in. If the timber moves, the connection loosens and there's nothing you can do except remove and re-drive, which rarely works cleanly in the same hole.
For non-structural connections (fence panels, garden benches, pergola rafters), coach screws are perfectly fine and much faster to fit.
Structural screws
Products like GRK, Spax, and TIMco In-Dex structural screws are a modern alternative that's gaining ground. They're engineered to provide bolt-equivalent holding power without through-bolting. Faster to install, no nut or washer needed, no drilling a clearance hole.
Structural screws may be used where the connection is designed for the selected screw's ETA and manufacturer's load data. They are not a like-for-like replacement for a specified bolt simply because installation is faster.
But for the most critical connections, through-bolting with coach bolts remains the proven default. The ability to retighten the nut as timber seasons is something no screw can match. If your structural engineer has specified coach bolts, don't substitute structural screws without checking with them first.
Where you'll need coach bolts on a build
Structural timber connections are where coach bolts earn their keep.
Floor construction. Built-up trimmers and other loaded timber connections need the engineer's fastener schedule. A designed connection may use bolts, structural screws or other connectors; do not substitute between them without checking the design.
Post-to-beam connections. Where a vertical post supports a horizontal beam, coach bolts through a steel bracket connect the two. The bolt passes through bracket and timber, tightened from the accessible side.
Fence and gate posts. Heavy-duty gate hinges and post brackets use M8 or M10 coach bolts. The smooth domed head on the public side looks clean and offers nothing to grip or unscrew from outside.
Roof timbers. Purlin-to-rafter connections, ridge beam splice joints, bolted truss repairs. Less common in modern trussed roof construction (which uses nailplates), but regular in cut-roof carpentry.
Garden structures. Pergola posts, heavy raised bed frames, playground equipment. Anywhere you're connecting large section timber and need a lasting joint.

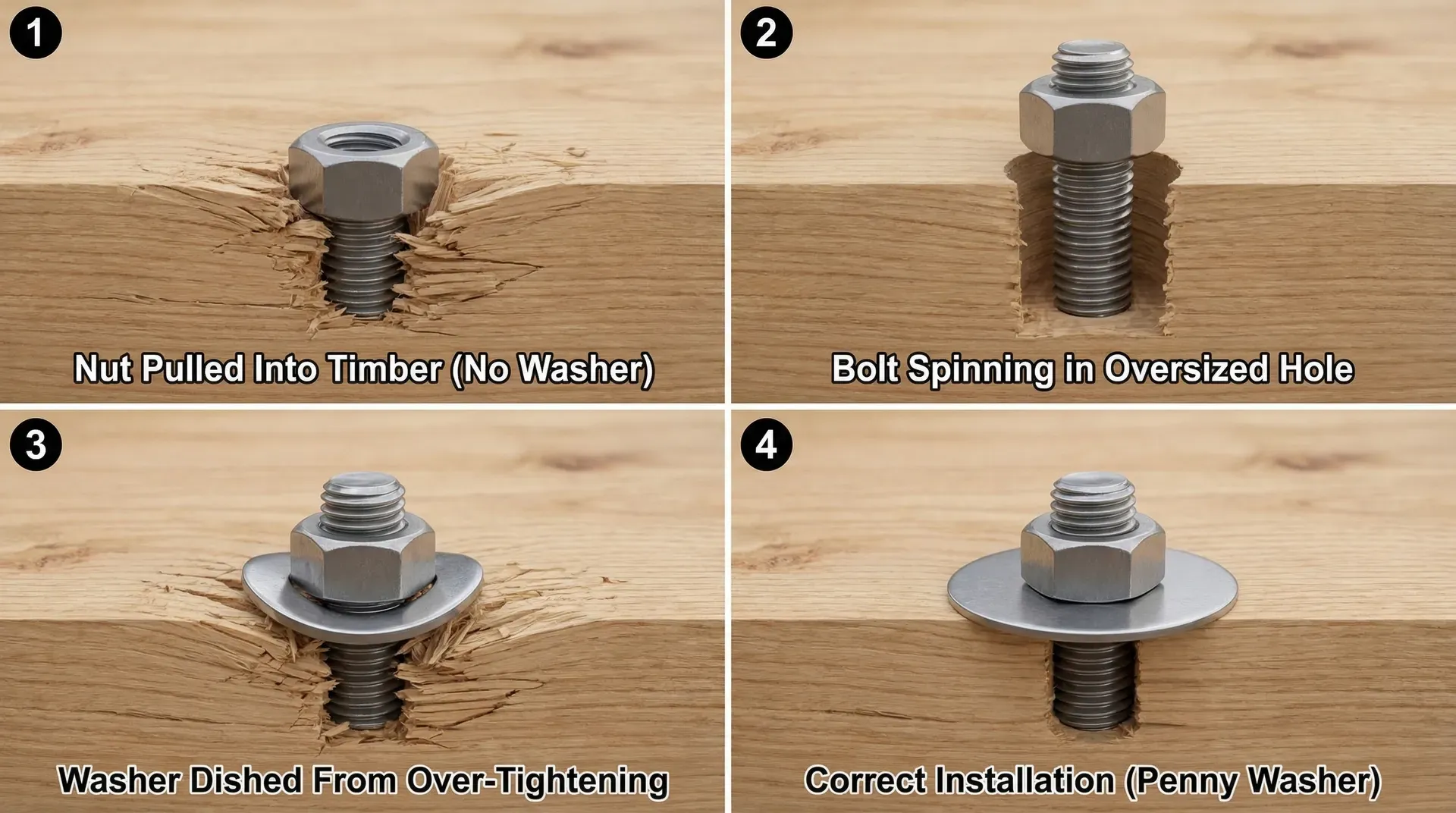

Common mistakes
These are the errors that cause coach bolt connections to fail. Every one of them is avoidable.
Inadequate bearing area. Eurocode 5's bolted-connection detailing calls for washers under both the head and nut, with the specified diameter and thickness. A small domed coach-bolt head is not automatically an equivalent bearing plate. If a cup-head and square-neck arrangement cannot accept the required washer detail, use the engineer's specified alternative.
Wrong hole size. Drill to the designed clearance and fastener instructions. Oversized holes beyond the permitted tolerance reduce connection performance; forcing a bolt into an undersized hole can split timber.
Over-tightening. The nut should be snug, with the washer bedded flat against the timber. Keep going and the washer crushes into the wood, compressing the fibres. The connection feels tight at first, then loosens as the crushed timber relaxes. Worse, over-tightening near the end of a timber can cause it to split along the grain. Snug means snug. If the washer is starting to dish into the surface, you've gone too far.
Wrong finish for outdoor use. Select corrosion resistance for moisture exposure and preservative treatment, following the fastener manufacturer and connection design. Check that the selected coating is suitable for treated timber outdoors.
Wrong length. Allow for the full timber thickness, washers or plates and complete nut engagement: enough threaded length for full nut engagement. Check the actual bolt's threaded length as well as overall length.
Not retightening after timber dries. If you're bolting unseasoned or recently installed timber, the wood will shrink as it dries over the following months. That shrinkage opens up the joint slightly, loosening the nut. Come back after six months and retighten every bolted connection. This is the whole reason coach bolts exist instead of screws: you can retighten them. Take advantage of it.
The bottom line
Coach bolts are simple, cheap, and proven. An M10 x 130mm zinc plated bolt costs about 40p. Add a penny washer and nut and you're still well under a pound for a connection that will hold a structural timber joint for decades.
Match the hole to the shaft diameter. Fit a penny washer. Tighten snug but not brutal. Use the right finish for the environment. Come back and retighten after the timber has dried. That's it.
