Chemical Anchors (Resin Anchors): Choosing and Installing Resin Fixings

How to choose, install, and avoid failures with chemical anchors. Resin types compared, cure times by UK season, cost per fixing from £10.95 – £13.99, and the hole cleaning procedure that determines whether your steel beam stays put.

By Ian

Project managed a £182k Oxfordshire kitchen extension

A steel beam bracket pulls away from a blockwork wall. The resin anchor holding it looks fine on the surface, but the stud slides out with barely any resistance. The cause, almost every time: dust left in the hole before the resin went in. The resin bonded to a film of drilling dust instead of the masonry. The anchor was never really attached to the wall at all.

Hole-cleaning equipment must meet the selected anchor's instructions. If compressed air is specified, use clean oil-free air at the required pressure and flow. Oil contamination can interfere with bonding; the compressor's fuel type alone does not establish air cleanliness.

Chemical anchors are the strongest fixings available for masonry and concrete. But they're unforgiving. A mechanical anchor bolt is more forgiving of careless installation. A chemical anchor installed into a dirty hole can lose half its strength or more.

What chemical anchors are and how they work

A chemical anchor is a two-part adhesive resin in a coaxial cartridge. One tube contains the resin, the other contains a hardener. When you squeeze the cartridge through an applicator gun, the two components mix in a static mixing nozzle and come out as a combined paste. You inject this paste into a drilled hole, push in a threaded stud or piece of rebar, and wait for it to cure. The resin forms a permanent bond between the metal and the surrounding masonry or concrete.

The bond is chemical, not mechanical. Unlike an expansion bolt that grips by pushing outward against the hole walls, a resin anchor creates an adhesive connection across the entire surface of the hole. This is why chemical anchors achieve higher load capacities than mechanical fixings in the same substrate. It's also why they work in hollow or weak masonry where expansion anchors would crack or spin.

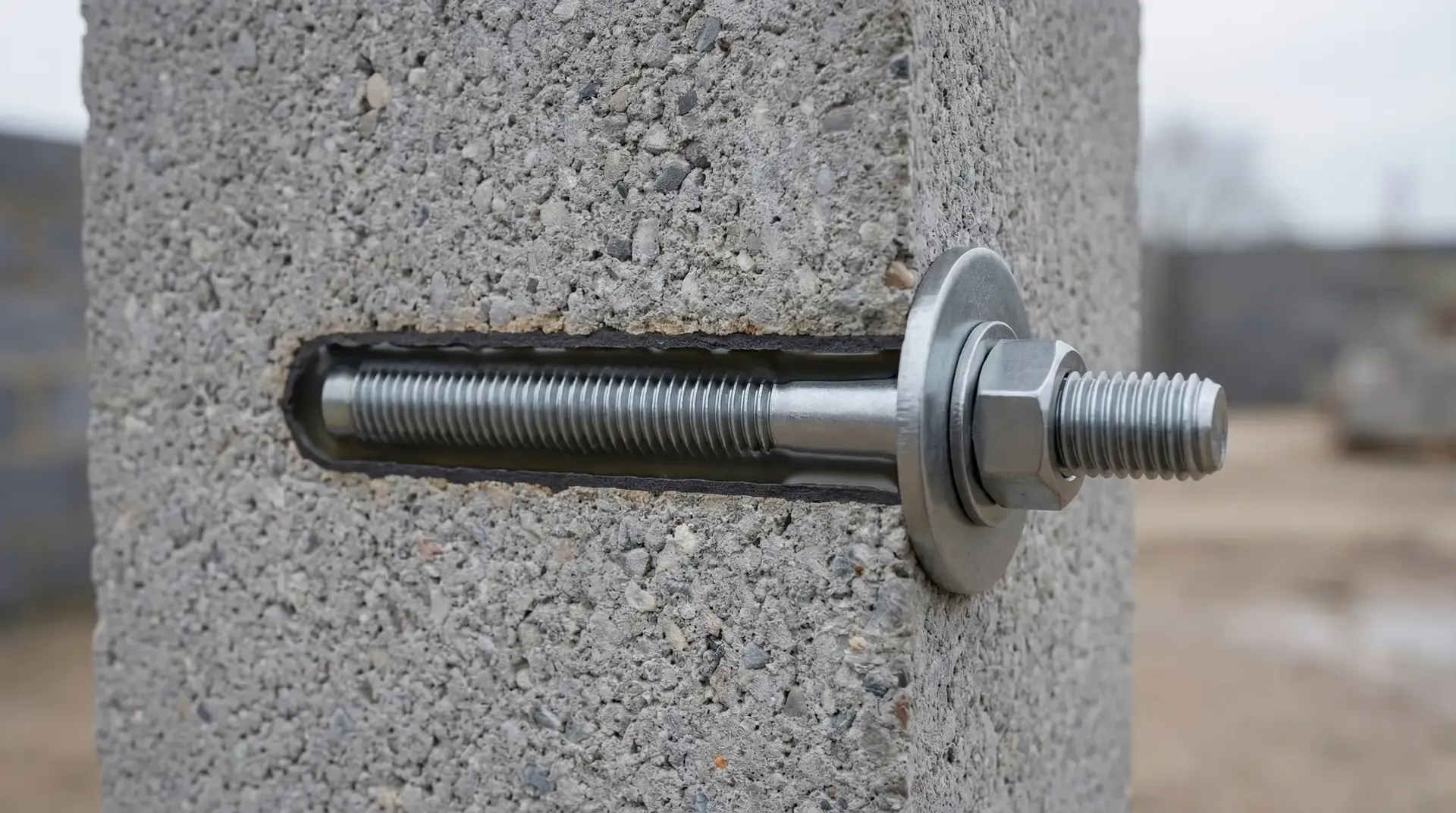

Chemical anchor bond: resin fills the hole and bonds chemically to both substrate and threaded stud.

In UK home extensions, the primary use is fixing steel beams. When a structural engineer specifies a steel for an opening (a new kitchen into a dining room, a rear extension joining the existing house), the steel usually sits on padstones. Where the engineer specifies a bearing plate bolted down, those bolts are often threaded studs bonded into the masonry with chemical anchors. The connection is structural and safety-critical. Getting it wrong is not an option.

Types of chemical anchor resin

Three resin types dominate the UK market. The differences matter because they affect strength, cure time, substrate compatibility, and cost.

PropertyPolyesterVinylester (epoxy acrylate)Pure Epoxy
StrengthMediumHighHighest
Cure time at 10-20C45-60 mins45-60 mins18 hours
Works in damp holesNoYes (most brands)Yes
Cracked concrete approvedCheck exact ETACheck exact ETACheck exact ETA
ETA approval rangeNon-cracked concreteCracked and non-crackedCracked and non-cracked
Hollow masonry (with sleeve)YesYesYes
Gun compatibilityStandard silicone gun (300ml)Varies by brandVaries by brand
Cartridge cost (300-400ml)£6.95 – £10.99£10.95 – £13.99£23.95 – £25.95
Best forGate posts, handrails, light bracketsSteel beams, lintels, medium-heavy loadsEngineer-specified heavy structural work

Polyester is the cheapest option. A 300ml Rawlplug R-KEM II cartridge costs £6.95 – £7.59 and works with a standard silicone gun. Fine for non-structural fixings in dry conditions: garden gate posts, handrail brackets, TV wall mounts into solid brick. Not suitable for anything safety-critical on your extension. It's not approved for cracked concrete, doesn't bond well in damp conditions, and has lower ultimate load capacity.

Vinylester and hybrid mortars can suit many domestic anchoring applications, but approvals for cracked concrete, masonry, damp holes and fire resistance are product-specific. Fischer FIS VL 300 T is £12.39 – £12.99; FIS V is £21.99. Check the exact ETA and use an applicator compatible with the cartridge format; do not infer universal F120 performance from the resin family.

Use vinylester for your steel beam fixings. This is the recommendation.

Pure epoxy may be specified where its approved performance suits the load, substrate and conditions. Cure times are product- and temperature-specific: the resin manufacturer's curing schedule. Check minimum installation temperature and the full manufacturer cure schedule before loading. Rawlplug R-KEX-II 385ml is £23.95.

How to install chemical anchors

This section is the one that matters most. Installation quality determines everything. A perfectly chosen resin installed badly is worse than a mechanical bolt installed well.

Hole cleaning: the step that makes or breaks the fixing

Drilling into masonry compresses dust onto the hole walls. This dust layer looks trivial. It isn't. If you inject resin into a dusty hole, the resin bonds to the dust rather than to the substrate. Your anchor's load capacity drops by 50% or more. In the worst case, the stud pulls out under hand pressure.

The cleaning procedure is blow, brush, blow, four times each, often called 4-4-4. Always finish with a blow-out:

  1. Blow out the hole four times with a hand pump

    Clean the hole using the exact blow/brush sequence and equipment in the anchor instructions. Where compressed air is required it must be clean and oil-free. A hand pump, around £9.99 – £14.30, is suitable only where the specified procedure permits it.

  2. Brush the hole four times with a wire brush

    Push a wire hole cleaning brush (matched to your hole diameter) to the bottom and scrub up and down four times. This breaks the compressed dust layer off the hole walls. Brushes run about £6.20 – £12.95 each.

  3. Blow out again four times

    Repeat the blow-out pump. This removes the dust the brush just loosened. Without this second blow, you've just rearranged the dust rather than removing it.

  4. Check the hole

    The hole should look clean and free of powder when you shine a torch down it. If it doesn't, brush and blow again, always ending with a blow-out so no loosened dust is left behind. Follow the number of passes in your resin's instructions.

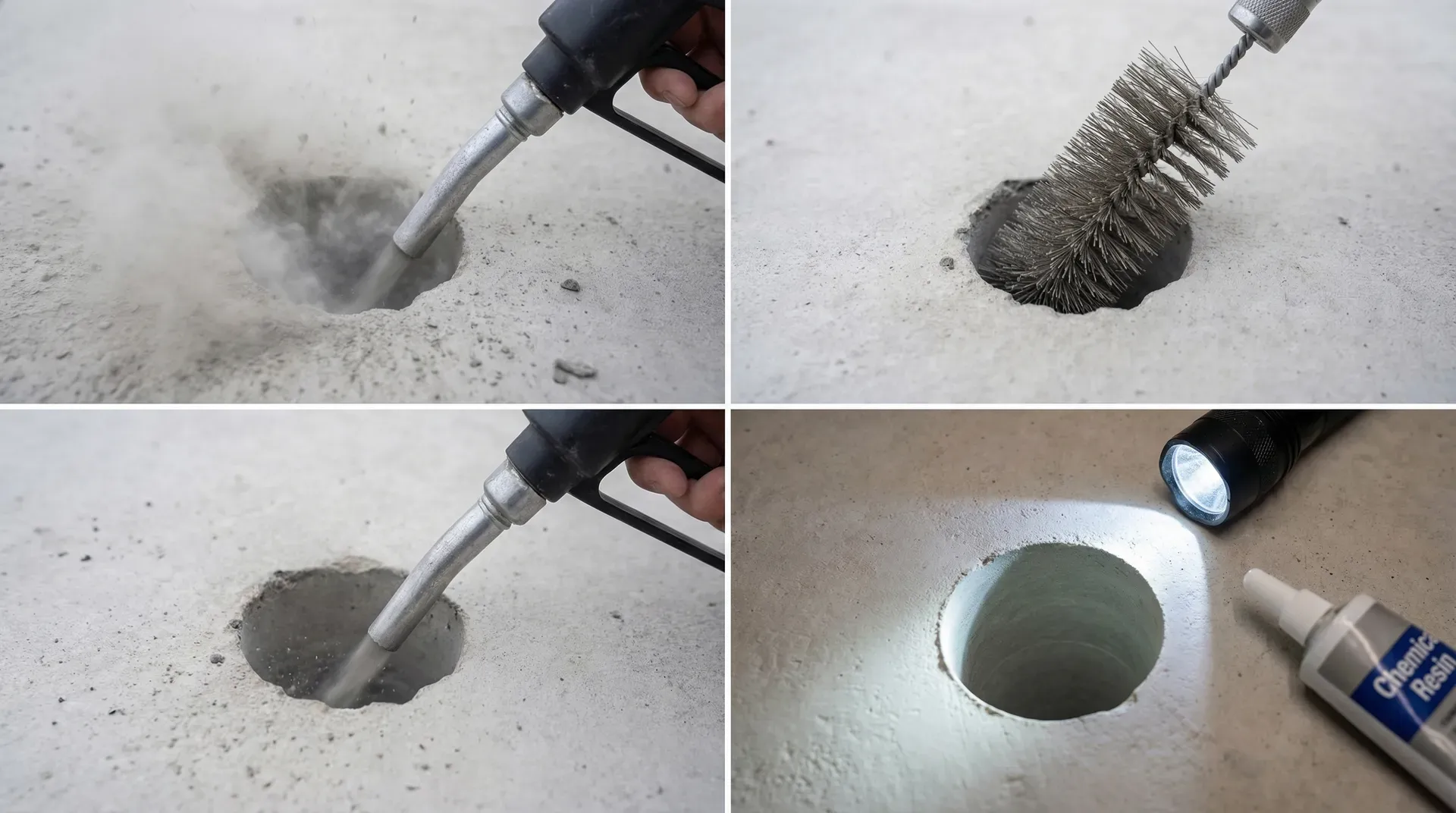

The 4-4-4 cleaning procedure: blow (4 pumps), brush (4 passes), blow again (4 pumps). Always finish with a blow-out. Every hole.

Yes, this feels excessive. Do it anyway. Every chemical anchor manufacturer specifies this procedure. Every failure investigation starts by asking whether it was followed. Most of the time, it wasn't.

Injecting the resin

Load the cartridge into your applicator gun. Before injecting into the actual hole, squeeze out a short bead (about 50 mm) onto scrap material and discard it. The first bead from a new nozzle contains unmixed or poorly mixed resin from the tip. Putting this into your hole is a guaranteed weak spot.

Inject from the back of the hole forward. Push the nozzle to the bottom and fill while slowly withdrawing. Fill the hole to roughly two-thirds full. When you insert the stud, the displaced resin will fill the remainder. If resin squeezes out slightly around the stud at the surface, that's correct. It means the hole is fully filled.

Inserting the stud

Push the threaded stud into the hole with a slow rotating motion. Don't hammer it. Don't rush. The rotation helps the resin flow around the threads and fill any voids. Once the stud is at the correct depth, leave it completely alone. Any movement during the gel phase (the first few minutes) disrupts the bond as it forms.

Hollow masonry: use a perforated sleeve

If you're fixing into hollow blocks, perforated bricks, or any masonry with internal voids, you need a perforated sleeve. Without one, the resin flows into the voids and disperses instead of forming a solid anchor.

A perforated sleeve is a mesh tube that you insert into the hole before injecting resin. The sleeve contains the resin while allowing it to flow through the perforations and grip the internal surfaces of the masonry. Fischer FIS H sleeves cost £0.83 – £3.02 each and come in lengths you cut to size.

For solid dense blockwork or concrete, you don't need a sleeve. For anything with holes, frogs, or cavities, always use one.

Applicator gun compatibility

This catches out first-time buyers constantly. Not all cartridges fit all guns.

Sika AnchorFix-1 and Rawlplug R-KEM II use standard 300ml cartridge tubes. They fit in a normal silicone gun or any standard applicator gun. The Fischer FIS VL 300 T also uses a standard format. But the Fischer FIS V 360S uses a proprietary coaxial cartridge that requires a Fischer-specific dispenser. And Hilti products use foil packs requiring the Hilti HDM dispenser, which costs around £243.48 – £263.20 (not economical for occasional use).

Check the cartridge format before you buy a gun. A standard heavy-duty applicator gun costs £11.95 – £16.95 and handles most 300ml cartridges from Rawlplug, Sika, and DeWalt.

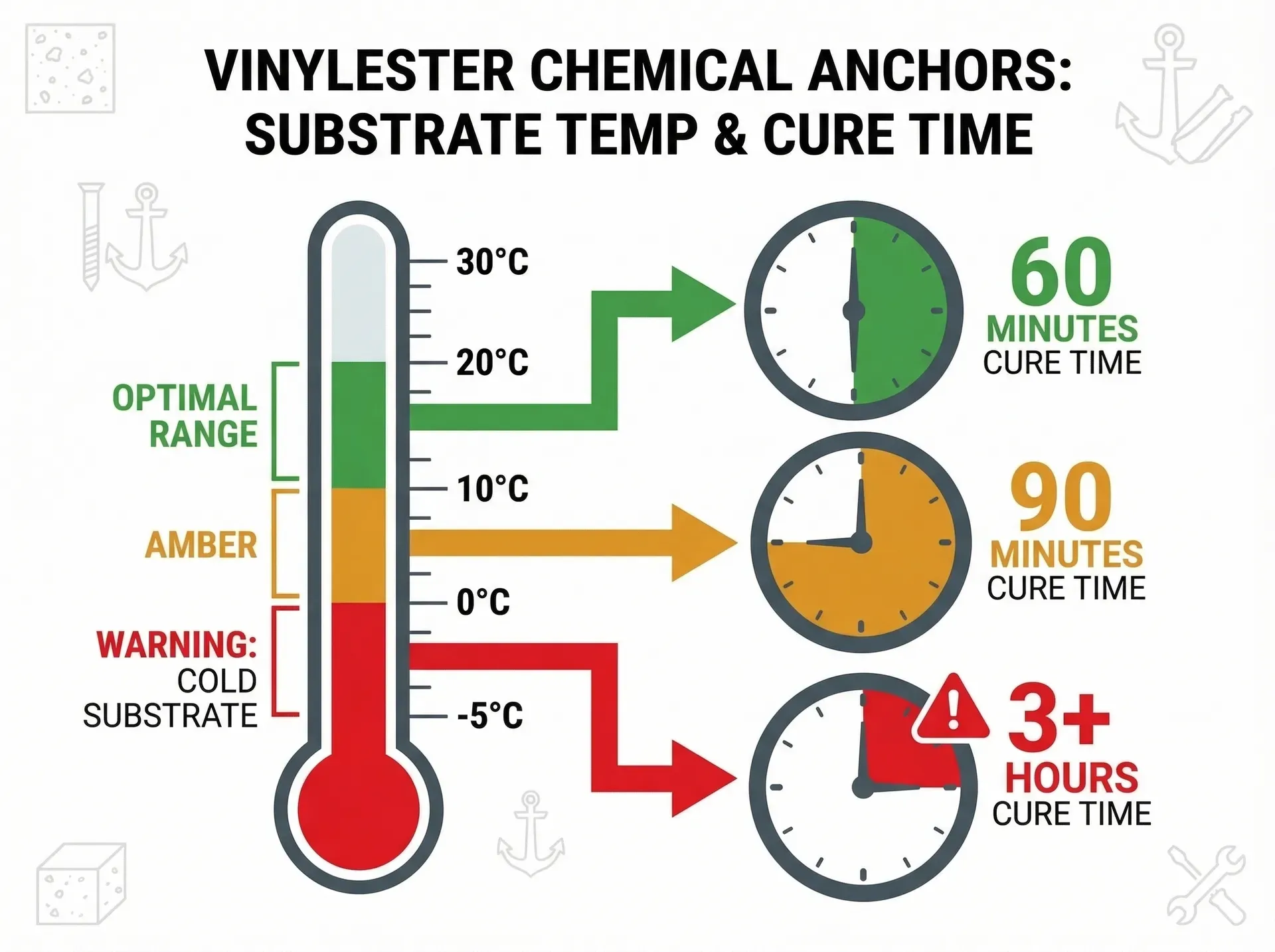

Cure times by UK temperature

This is the table your builder should check before loading the fixings. Many don't.

Chemical anchors cure by chemical reaction. The reaction slows in cold temperatures. In a heated indoor space at 20C, a vinylester anchor cures in 45-60 minutes. On an exposed blockwork wall in January at 3C, the same anchor takes 3 hours. Load it at one hour because "it feels hard" and you've compromised the bond permanently.

As a product-specific example, fischer's FIS V Plus table lists 24 hours curing above -5°C up to 0°C, and 60 minutes above 10°C up to 20°C. Its FIS VW Plus High Speed variant lists 3 hours and 30 minutes for those bands. These values do not apply to other vinylester or epoxy products; the installation instructions and hole conditions still govern.

Measure the anchoring substrate temperature and use the exact resin's cure table, including any longer times for wet or water-filled holes. Air temperature and touching the masonry are not adequate substitutes. Also observe the minimum cartridge temperature.

Faster-curing variants can reduce waiting time at some temperatures: the selected winter-grade resin's curing schedule. Compare the specific product tables; a winter label does not mean a fixed speed-up at every temperature.

In wet holes, most manufacturers require you to apply a ×2 (double the dry-hole cure time) to the cure times listed above. Vinylester handles damp conditions; polyester does not.

Warning

Never load a chemical anchor before the full cure time has elapsed at the actual substrate temperature. "It feels hard" is not an indicator of full cure. The surface skins over long before the core has reached design strength. Premature loading is the second most common cause of chemical anchor failure after dirty holes.

How much you need and cost per fixing

A typical steel beam job in a home extension requires 4-8 fixing points (two to four per bearing plate, two bearing plates). Here's what that actually costs.

A 300ml vinylester cartridge yields approximately 10-15 fixings per 300 ml cartridge at M10 stud diameter, depending on hole depth. For a 6-fixing steel beam job, one cartridge is plenty with spare capacity.

Cost per individual M10 fixing point (vinylester):

  • Resin: roughly £1.03 – £1.08 per fixing (based on a £12.39 – £12.99 cartridge yielding 12 fixings)
  • Threaded stud: roughly £0.60 – £0.70 per stud (M10 x 130mm, passivated, from a 10-pack at £5.99 – £6.99)
  • Total per fixing: approximately £1.63 – £1.78

Plus one-off costs:

  • Applicator gun: £11.95 – £16.95 (reusable)
  • Mixing nozzles: included with cartridge (usually 2 per cartridge)
  • Wire brush and blow-out pump: roughly £16.19 – £27.25 combined

For a complete 6-fixing steel beam job using vinylester, budget around £46.52 – £64.18 including consumables. The resin itself is a small part of the total.

Where to buy

Screwfix and Toolstation stock the main ranges. Screwfix carries the full Fischer and Rawlplug chemical anchor lines. Toolstation has good availability on Fischer FIS VL and Rawlplug R-KER II vinylester products.

For Hilti products, you'll need to order from Hilti directly or through a specialist distributor. Hilti HIT-HY 200-A V3 runs around £48.38 per 330ml cartridge and isn't available at the big shed retailers.

Starter kits that bundle a gun with two cartridges offer reasonable value. The Rawlplug R-KEM II polyester starter kit (two 300ml cartridges plus gun) runs £26.29 – £28.29.

Not sure which resin or rod size your wall needs? Both main brands give free technical advice by phone. Have the wall material, the load and the fixing detail ready when you call.

External resource

fischer technical advice

Technical hotline 01491 827920, or email technical@fischer.co.uk. Engineers answer questions on substrates, loads and anchor sizes.

fischer.co.uk

External resource

Rawlplug technical advisory service

Call 0141 638 7961 or email rawlinfo@rawlplug.co.uk for advice on choosing and installing anchors.

rawlplug.co.uk

Where to buy Chemical Anchors (Resin Anchors)

Check current prices from UK suppliers.

These are affiliate links: if you buy through them we may earn a small commission, at no extra cost to you. Learn more.

Alternatives to chemical anchors

Mechanical anchor bolts (expansion anchors, sleeve anchors, wedge anchors) are the main alternative. You drill a hole, insert the anchor, and tighten the nut. The expanding sleeve grips the hole walls mechanically. No mixing, no cure time, instant load capacity.

For solid, strong concrete, mechanical anchors work well and are faster to install. For hollow masonry, weak blockwork, or situations where you need high load capacity without expanding the substrate, chemical anchors are better. Expansion anchors can crack weak masonry or spin in hollow blocks.

If your structural engineer has specified chemical anchors for your steel beam fixings, that's what you use. Don't substitute mechanical anchors because they're quicker. The specification exists for a reason.

Through-bolting (drilling all the way through and bolting from both sides) is another option when you have access to both faces of the wall. Stronger than either chemical or mechanical anchors, but rarely practical in extension work where one side of the wall is inaccessible.

Where you'll need chemical anchors

The primary use in home extension work is steel beam and lintel installation. Threaded studs bonded into blockwork or concrete with chemical anchors hold the bearing plates that support structural steels. This is the application where getting it right matters most, and where vinylester resin is the correct choice.

Beyond steels, chemical anchors appear in:

  • Heavy bracket fixings into masonry where mechanical anchors don't provide enough grip
  • Handrail post fixings into concrete or block (polyester is adequate here)
  • Fixing base plates for structural posts
  • Remedial work where mechanical anchors have failed (oversized holes, cracked masonry)

For most homeowners managing an extension, you'll encounter chemical anchors once: when the steels go in. But that one encounter is safety-critical.

Common mistakes

Dirty holes. The number one cause of failure. If you remember nothing else from this page: blow, brush, blow. Four times each. Every hole.

Cold cure assumptions. Measure substrate temperature and check the exact product's working and curing times before installation. Do not load or disturb the fixing before the required cure period has elapsed.

Wrong gun for the cartridge. Check the cartridge format and its compatible dispenser before purchase. A side-by-side cartridge needs the appropriate applicator; it is not enough to check the nominal millilitre capacity.

Polyester in wet conditions. Polyester resin doesn't bond reliably in damp holes. If the hole has any moisture (common in below-grade work, retaining walls, or freshly drilled holes on rainy days), use vinylester. It costs a few pounds more and works.

Not purging the first bead. The first 50mm of mixed resin from a new nozzle is often poorly mixed because the two components haven't fully combined in the static mixer yet. Always squeeze out and discard the first bead onto scrap material. Putting it into your structural fixing is putting weak resin exactly where you need the strongest bond.

Moving the stud during gel time. Once you've inserted the stud, don't touch it. Don't check if it's straight. Don't wiggle it to see if the resin has set. Any movement during the gel phase (the first few minutes after insertion) breaks the forming bond. Get the stud position right during insertion and then walk away.

Expired cartridges. Check the expiry date stated for the selected cartridge and the storage requirements. Do not use expired resin for a designed anchorage.

No PPE. Chemical anchor resin is a skin and eye irritant. Both components. Wear nitrile gloves and safety glasses during mixing and injection. If uncured resin contacts skin, wash it off immediately. Once cured, it's inert. But during application, treat it as a chemical product because that's what it is.

The bottom line

Chemical anchors are the strongest fixings you can put into masonry. For steel beam work on a home extension, vinylester resin is the correct choice: it bonds in damp conditions, cures in practical timeframes, has the right ETA approvals, and costs roughly £10.95 – £13.99 per cartridge. The total cost per fixing point is around £1.63 – £1.78, which makes resin type a minor cost decision.

The installation quality is everything. Clean the hole properly (blow, brush, blow). Check the substrate temperature and wait for the full cure time. Use a perforated sleeve in hollow masonry. Don't load the anchor early.

Do those things and the fixing will outlast the building. Skip them and it won't hold the weight of the nut.
