Angle Brackets: Which Duty, Which Fastener, and Why It Matters

A stud wall in a garage conversion, framed with decorative zinc-plated corner braces from the shelving aisle. The kind that cost 16p each. Within six months the head plate had shifted, the plasterboard cracked along the ceiling line, and the whole frame needed stripping out and rebuilding with proper brackets. The brackets looked the same. L-shaped, metal, holes for screws. But one was designed to hold a bathroom shelf. The other was designed to hold a building together.

That distinction, between a bracket that's decorative and one that's structural, is the single most important thing to understand about angle brackets. Get it wrong and you won't know until something moves that shouldn't.

What angle brackets are

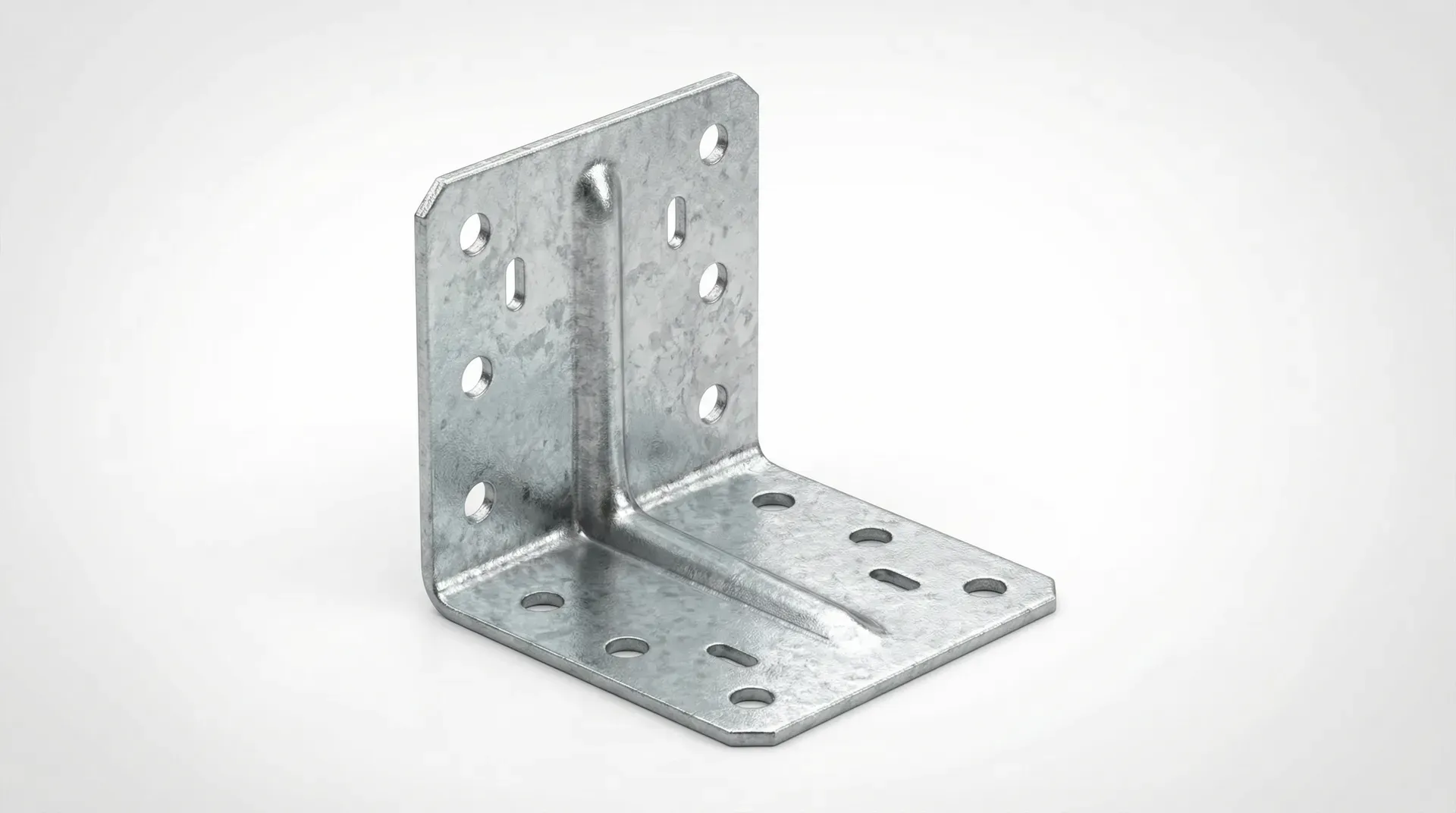

An angle bracket is an L-shaped piece of galvanised steel with pre-punched holes on both flanges. You fix one flange to one timber member and the other flange to the timber it's connecting to, creating a rigid right-angle joint. Simple in concept. The details are where people go wrong.

Click to enlarge

The steel is pre-galvanised, meaning the zinc coating is applied to the flat sheet before it's pressed into shape. Standard brackets carry a Z275 galvanising specification (275 g/m2 of zinc), which is adequate for internal framing and normal external exposure. For timber treated with CCA preservative, or for marine and high-corrosion environments, you need stainless steel brackets instead (Grade 1.4401 or 1.4404). Never mix stainless steel brackets with galvanised fixings in the same connection. The two metals react and corrode each other.

The bracket does one job: it transfers load between two timber members joined at right angles. Noggins into studs. Head plates to wall studs. Sole plates to end studs. Roof framing connections where a direct nailed joint isn't practical. Every connection point in a timber frame where two pieces meet at 90 degrees is a candidate for an angle bracket.

Types and duty levels

Manufacturer labelling is confusing. Sabrefix calls their 60x50mm bracket "Heavy Duty." It isn't. Not by any structural engineer's definition. The marketing terms on the packet don't match reality, so ignore them. Here's what actually matters: the size, the thickness, and whether the bracket has been tested and certified.

Three practical categories exist, defined by what the bracket can do, not what the label says.

Light-duty (decorative and shelving). Legs under 50mm. Steel thickness 1.0 to 1.5mm. Zinc-plated, not galvanised (the zinc layer is thinner and less durable). These are the corner braces you find in the shelving and furniture repair section. They hold a shelf bracket or reinforce the back of a picture frame. They have no place in any framing or structural connection. Prices run from TBC for a basic 19mm self-colour brace up to TBC for a 50mm zinc-plated corner brace.

Medium-duty (stud walls and general framing). Legs from 40mm to 90mm. Steel thickness 2.0 to 2.5mm. Pre-galvanised mild steel with reinforcement ribs at the corner bend. This is the bracket you'll use most. Fixing noggins into studs, connecting head and sole plates to end studs, general timber-to-timber joints in non-structural partitions. A 60x40mm bracket costs around TBC. A 90x90mm runs TBC.

Heavy-duty (structural). Legs 90mm and above, typically up to 150mm. Steel 2.0 to 2.5mm thick, always with reinforcement ribs, and ideally carrying an ETA (European Technical Assessment) certification that provides tested load ratings. Simpson Strong-Tie's ABR100 is the benchmark here: 103 x 103 x 90mm, 2mm thick with reinforcing ribs, ETA-06/0106 certified. A pair of ABR100 brackets with full nailing can carry a characteristic vertical load of 20.3 kN, roughly 2,070 kg before safety factors are applied. That's serious holding power. Heavy-duty brackets cost TBC to TBC each depending on size.

The thickness difference between brands matters more than you'd expect. BPC Fixings (sold at Toolstation) consistently uses 2.5mm steel. Sabrefix (sold at Screwfix) uses 2.0mm. Both are labelled "heavy duty." The extra half-millimetre in the BPC bracket gives marginally higher load capacity and better resistance to deformation under load. For structural applications where you're choosing between the two, the thicker bracket is the safer pick, or go for Simpson Strong-Tie's ABR range with its ETA certification and published load tables.

How to fix them properly

Positioning is straightforward. Hold the bracket tight into the corner where the two timber members meet, with both flanges flat against their respective faces. The bracket should sit flush, with no gap between the steel and the timber.

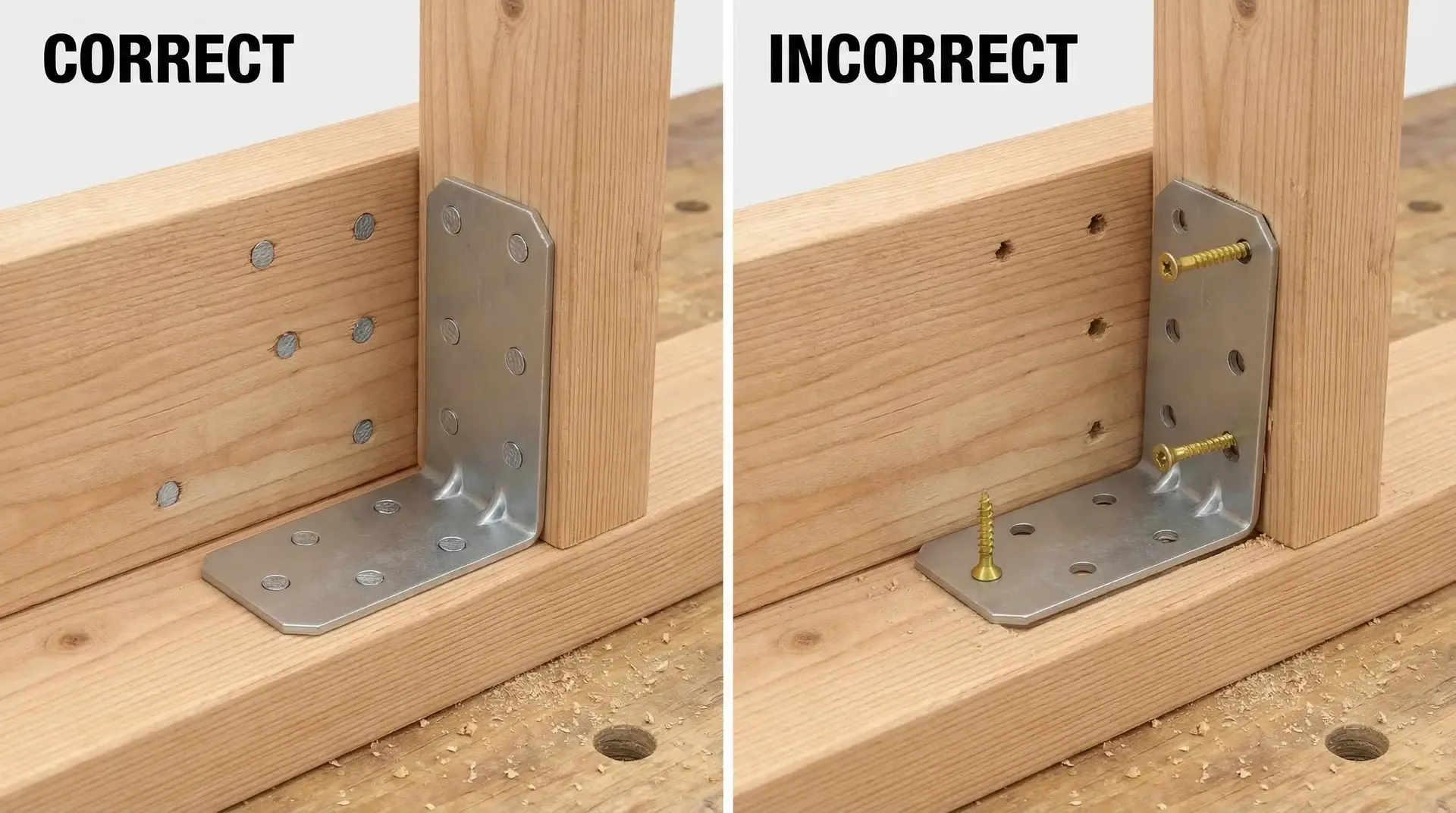

Fill every hole. This is the point most people miss. Those pre-punched holes aren't optional. Each hole carries a proportion of the total load. Miss four holes on one flange and you've cut the bracket's capacity by a third or more. If you're in a rush and only drive three nails per side on a bracket with eight holes per flange, you've installed a bracket that performs like a bracket half its size. Minimum: three fixings per flange for light work, all holes filled for anything structural.

Pre-drill in hardwood or near timber edges to prevent splitting. In softwood framing (CLS or regularised timber), you can drive fixings straight through the bracket holes without pre-drilling.

Click to enlarge

The fastener question

This is where most DIYers and a surprising number of tradespeople get it wrong.

Annular ring-shank nails have ridges along the shank that grip the timber fibres. They resist withdrawal far better than smooth nails and they resist shear far better than screws. They're the default fastener for structural metalwork connectors across the industry. A box of 4.0x50mm ring-shank nails costs a few pounds and lasts across dozens of brackets.

For non-structural work (stud wall noggins in a partition, for instance), 4.0x30mm or 4.0x40mm general-purpose nails will do the job. But if there's any doubt about whether the connection is structural, use ring-shank nails. The cost difference is negligible and the performance difference is not.

Connector screws are the alternative to nails when you want to be able to disassemble the joint later or when driving nails isn't practical (tight access, for example). These are purpose-designed screws with a shank profile that resists shear. They cost more than nails but less than replacing a bracket because a wood screw snapped.

How many brackets per joint

One bracket per side of the joint is standard practice for most framing connections. A noggin fixed into a stud gets one bracket on each side, two brackets total. A head plate connecting to a wall stud gets one bracket per stud, on alternating sides if access allows.

For structural connections, Simpson Strong-Tie publishes all load ratings based on pairs of brackets (one each side of the joint). Their ABR100 vertical capacity of 20.3 kN assumes two brackets working together, sharing the load symmetrically. A single bracket on one side provides roughly half that capacity, but only if the supported member is prevented from rotating. In practice, always use pairs for structural work.

A standard 2.4m stud wall with studs at 400mm centres and noggins at mid-height needs roughly 12 to 16 brackets for the noggin connections, plus 6 to 8 for the head plate and sole plate connections to end studs and corners. Call it 20 to 24 brackets per wall panel. At TBC each, that's TBC in brackets per wall. Not expensive. Not worth skimping on.

Cost and where to buy

Three brands dominate the UK retail market, each with a home at a specific merchant.

BPC Fixings at Toolstation. The price leader. 2.5mm thick across the range. A 10-pack of 60x40x60mm brackets runs TBC. The 90x90x60mm 10-pack is TBC. If you're buying in volume, the 50-pack of 90x90mm brackets drops to TBC (TBC each). Site packs of 1,000 are available at around TBC for the 60x40mm size. Customer rating: 4.8 out of 5 from 548 reviews.

Sabrefix at Screwfix. Slightly thinner at 2.0mm but widely stocked and available for same-day click and collect. A 10-pack of 60x50mm runs TBC. The 90x63mm 10-pack costs TBC. Customer rating: 4.5 to 4.6 out of 5.

Simpson Strong-Tie. The premium brand with ETA-certified load ratings. Available at Screwfix, Toolstation, and Travis Perkins. Their 40x40mm 25-pack runs TBC (TBC each). The reinforced 100mm height 25-pack is TBC (TBC each). Worth the premium for any connection where you need a certified load rating.

Click to enlarge

BPC at Toolstation is typically 25 to 30% cheaper per bracket than Sabrefix at Screwfix for equivalent sizes, and it's thicker steel. Unless you need the specific Simpson Strong-Tie ETA certification for a structural calculation, BPC is the best value for general framing work.

For light-duty corner braces (shelving, furniture), the Screwfix Essentials range starts at TBC for a 10-pack of 25x25mm braces. Fine for what they are. Just never confuse them with structural brackets.

Alternatives to angle brackets

Angle brackets aren't the only way to join timber at right angles. For some joints, they're not even the best way.

Skew nailing (or skew screwing). The traditional method. Drive two nails or screws through the end of one timber at opposing angles into the face of the other. Fast, cheap, requires no bracket. Most professional carpenters prefer skew nailing for standard noggins and framing because it's quicker than fiddling with brackets. Two 4.5mm x 80mm screws from each side, driven at roughly 20 degrees in opposite directions, creates a solid joint. The downside: it takes practice to get the angle right without the timber splitting, and in tight spaces it's awkward. For less experienced fixers, brackets are more reliable.

Joist hangers. Purpose-designed metal cradles that support a joist or beam from below. If you're connecting a joist to a beam or a lintel, use a joist hanger, not an angle bracket. The hanger wraps under the joist and carries the dead load in bearing. An angle bracket in the same position relies entirely on the fasteners' shear resistance, which is a fundamentally weaker connection for that load type.

Truss clips. For connecting roof trusses to the wall plate, use proprietary truss clips. They're designed for that specific geometry and load pattern. Angle brackets are sometimes used as a substitute, but truss clips are the code-compliant solution and what building inspectors expect to see.

Timber connectors and restraint straps. For wind restraint on gable walls and holding-down straps at wall-plate level, proprietary restraint straps are the correct product. Angle brackets aren't designed for the tension loads that wind loading creates.

Frame fixings. For connecting timber sole plates and head plates to masonry walls, use frame fixings (a long screw with a built-in wall plug) or anchor bolts. Angle brackets are for timber-to-timber connections. Trying to bend them over a masonry edge to fix timber to blockwork is a bodge.

Where you'll need angle brackets

In a typical home extension or renovation, angle brackets appear in a few specific places.

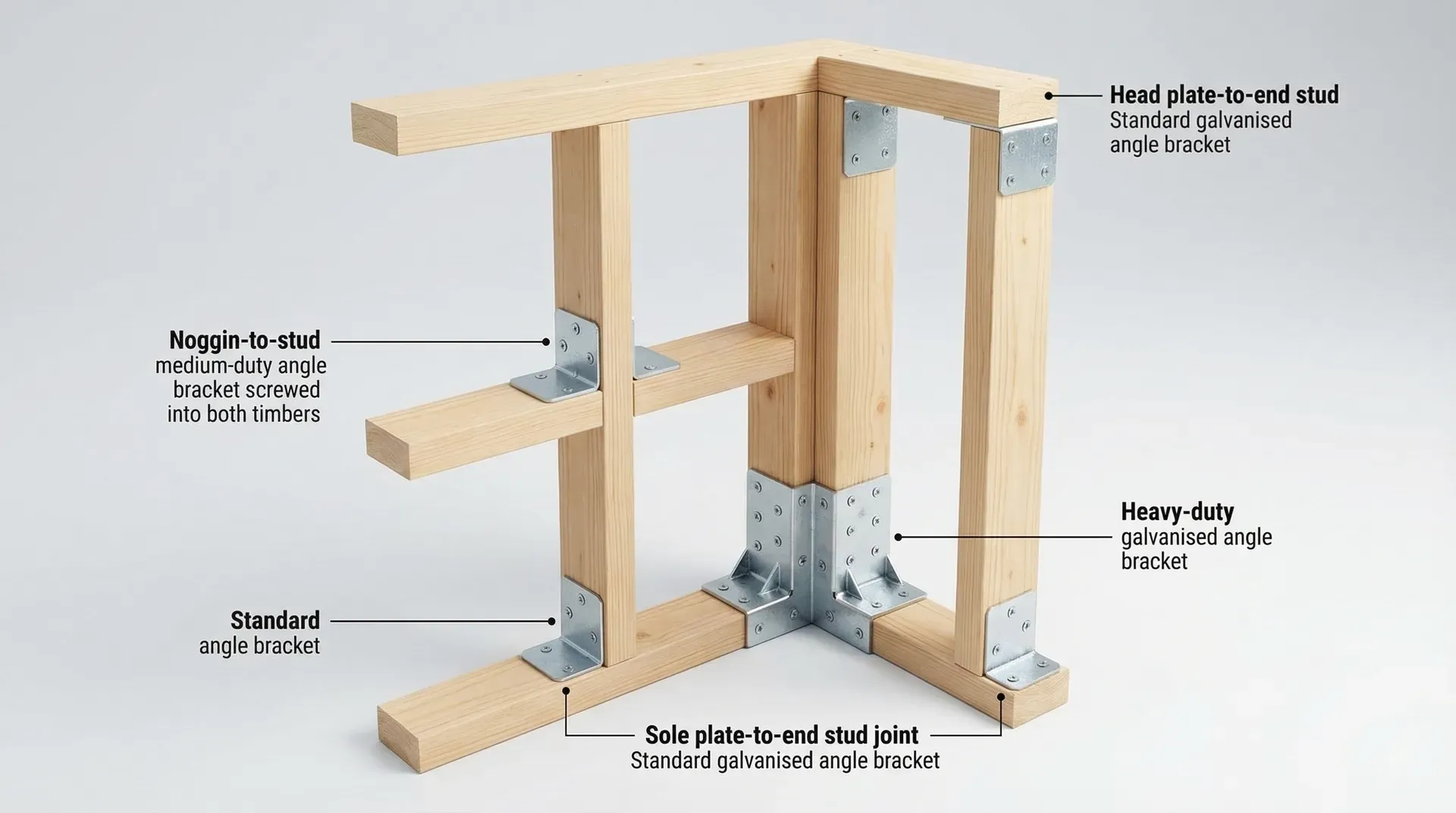

Stud wall framing is the big one. Every internal partition built from timber needs connections at the noggins, at the corner junctions, and where head plates meet wall studs. Non-structural stud walls (most internal partitions) need medium-duty brackets. Load-bearing stud walls need heavy-duty brackets with ring-shank nails.

Roof framing uses heavy-duty brackets at rafter-to-ridge connections and purlin-to-rafter connections where truss clips or joist hangers aren't suitable. Building control will inspect these connections before you cover them, so use ETA-certified brackets and fill every hole.

Garden structures, decking subframes, and outbuildings all use angle brackets for their timber frames. External brackets must be galvanised (not zinc-plated), and if the timber is pressure-treated with CCA, use stainless steel brackets to avoid corrosion.

Click to enlarge

Common mistakes

Using light-duty corner braces for framing. This is the garage conversion story from the opening. Those 16p zinc-plated corner braces from the shelving section are made from 1.0 to 1.5mm steel with no reinforcement rib and no load rating. They bend under hand pressure. They have no business in a timber frame. Yet they end up in stud walls regularly because they're cheap and they look similar to proper brackets on the shelf.

Standard wood screws in structural brackets. The second most common failure. Yellow multi-purpose screws, drywall screws, any screw with a standard threaded shank. They snap under lateral load. The fix is simple and cheap: buy a box of 4.0x50mm ring-shank nails and a hammer. Or 5.0x40mm connector screws if you prefer driving them with a drill.

Half-filling the holes. Every empty hole is capacity you've left on the table. Two nails per flange on a bracket designed for eight isn't 25% weaker. It's worse than that, because the load concentrates on fewer fixings, increasing the stress on each one. Fill the holes. All of them.

Using angle brackets where a joist hanger belongs. A joist sitting on a ledger board with angle brackets at each end is not the same as a joist sitting in a purpose-designed hanger. The hanger carries the joist in bearing. The bracket relies on fastener shear. For joist-to-beam connections, always use joist hangers.

Galvanised brackets against CCA-treated timber. Standard galvanised steel corrodes when in direct contact with copper-based preservatives (the "green" treated timber sold for external use). The bracket slowly dissolves. Use stainless steel brackets for any connection involving treated timber in external applications.

Not having them inspected. Structural angle bracket connections in roof framing and load-bearing stud walls are inspection points for building control. They need to be visible and accessible when the inspector visits. If you plasterboard over structural connections before the inspection, you'll be asked to open them up. Schedule your inspections before covering any structural framing.

Angle brackets are one of the cheapest components on any timber frame. A full set for a stud wall costs less than a takeaway. The brackets themselves aren't where the expense lies. The expense comes from choosing the wrong duty, using the wrong fastener, or skipping half the fixings, then discovering the problem six months later when plasterboard cracks or a frame shifts. Buy the right bracket. Use ring-shank nails. Fill every hole. That's it.
